AVAIN LABS® Rectangular Muffle Furnace Laboratory Model

AVAIN LABS® Rectangular Muffle Furnace Laboratory Model

The AVAIN LABS® Rectangular Muffle Furnace Laboratory Model is a high-performance heating furnace designed for precise and uniform high-temperature applications in laboratories, research centers, industrial testing facilities, and educational institutions. Engineered with advanced thermal insulation and durable construction, this laboratory muffle furnace delivers reliable heating performance for a wide range of scientific and industrial processes.

The outer body is constructed from high-quality mild steel sheet with powder-coated finish, ensuring excellent durability, corrosion resistance, and long service life. The furnace chamber is insulated with high-grade ceramic wool insulation to minimize thermal loss and maximize heating efficiency.

Equipped with premium Kanthal wire heating elements, made from a special high-temperature alloy, the furnace provides uniform heat distribution and stable temperature performance throughout the chamber. The unit operates within a temperature range of 100°C to 900°C, with a maximum design temperature of 1000°C and a working temperature up to 940°C.

Designed for dependable laboratory use, the AVAIN LABS® Rectangular Muffle Furnace is suitable for ash testing, heat treatment, material analysis, sintering, and various high-temperature laboratory applications. It is compatible with 220–440 Volt, 50Hz Single or Three Phase Power Supply, making it suitable for diverse laboratory and industrial setups.

Key Features

  • Heavy-duty Rectangular Laboratory Muffle Furnace
  • Durable Mild Steel Powder-Coated Body
  • High-efficiency Ceramic Wool Insulation
  • Uniform heat distribution using Kanthal Heating Elements
  • Temperature Range: 100°C to 900°C
  • Maximum Design Temperature: 1000°C
  • Working Temperature up to 940°C
  • Low thermal loss and energy-efficient performance
  • Suitable for continuous laboratory operation
  • Compatible with Single or Three Phase Power Supply

Here is the technical specification from the image converted into a clean, markdown table for easy copying:

Technical Specification Detail
Model AL-533
Inner Muffle Size Available in various sizes, such as 225x100x100mm, 250x125x125mm, 300x125x125mm, 300x150x150mm, 300x200x200 with corresponding inch conversions.
Temperature Range Working temperature of up to 900°C.
Heating Embedded heater running around the chamber.
Temperature Sensitivity ±5% by energy regulator and ±5°C by digital electronic controller.
Temperature Control Options for energy regulator, microprocessor-based PID or digital temperature indicator cum controller or Thermostat (Optional).
Voltage Operating voltage of 220 Volts AC (50 Hz)
Relay Solid-state electronic relay with a protective heat sink
Heating Elements Grooved refractory for supporting the heating elements made out of kanthal wire, which are easily replaceable.
Insulation Brick insulation ceramic wool/brick insulated body.
Casing Outer shell made of thick mild steel finished in attractive stoving enamel/powder-coated paint.

Applications

  • Chemical Laboratories
  • Research & Development Centers
  • Pharmaceutical Industries
  • Material Testing Laboratories
  • Ash Content Analysis
  • Heat Treatment Processes
  • Educational & Scientific Institutions
  • Industrial Heating Applications

The AVAIN LABS® Rectangular Muffle Furnace Laboratory Model combines precision heating, durable construction, and efficient thermal performance, making it an ideal solution for professional laboratory and industrial high-temperature applications.

Available models
Cat No Inner Chamber Size In Mm Inner Chamber Size In Inches

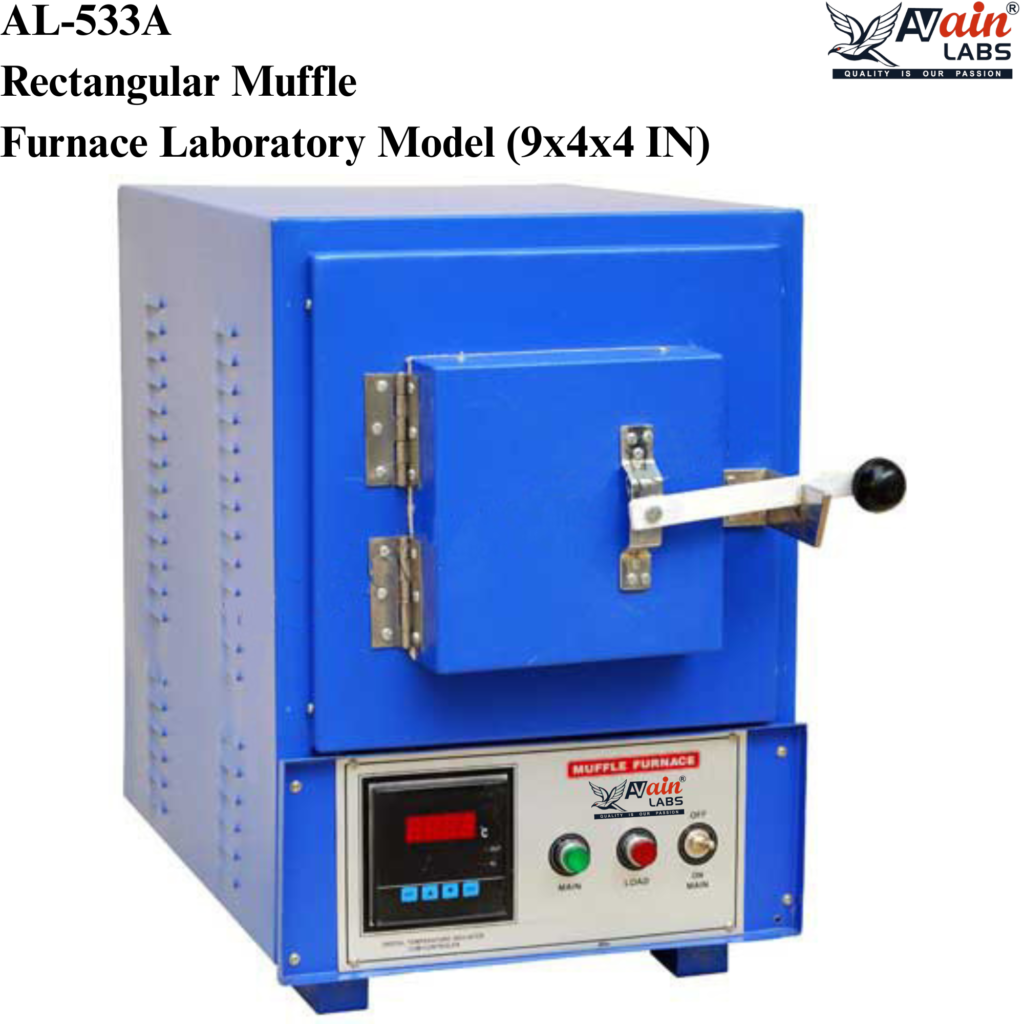

AL-533A 225x100x100 9x4x4
AL-533B 250x125x125 10x5x5
AL-533C 300x200x200 12x6x6
AL-533D 450x225x225 12x8x8
AL-533E 450x225x225 18x9x9
Optional (MFL1) Microprocessor PID Based Temp Indicator Controller
Optional (MFL2) Profiler Controller with ramp and sock facility 16 Steps
Note Please ask for other capacities of your requirement. GMP model inner and outer SS complete also available

Specifications

ModelAL-533A
