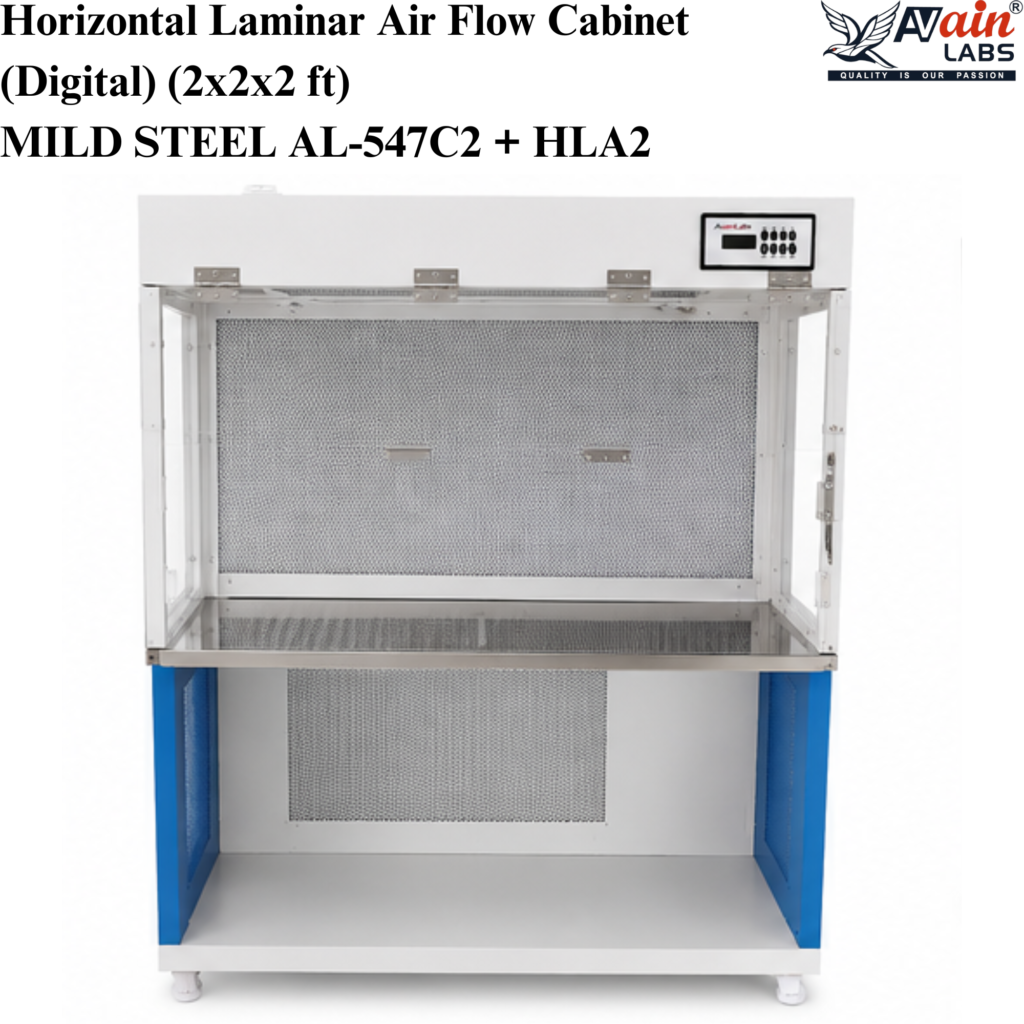

The AVAIN LABS® Horizontal Laminar Air Flow Cabinet is designed to provide a continuous stream of particle-free, ultra-clean air to meet Class 100 clean air conditions, ensuring a sterile and contamination-free working environment. Ideal for microbiology laboratories, pharmaceutical industries, biotechnology research, hospitals, tissue culture laboratories, electronics manufacturing, and quality control applications, this cabinet delivers superior protection for sensitive samples and processes.

Manufactured with a robust Mild Steel Epoxy Powder Coated body or Sunmica-finished thick board construction (model dependent), the cabinet is built for durability and long service life. The stainless steel working table provides a corrosion-resistant, hygienic workspace that is easy to clean and maintain. The transparent Plexiglass side panels and front door offer excellent visibility while protecting the work area.

The cabinet is equipped with a high-efficiency Pre-Filter and HEPA Filter that effectively remove airborne contaminants, providing clean horizontal airflow across the entire working area. A dynamically and statically balanced blower and motor assembly ensures smooth airflow with minimal vibration and exceptionally low noise operation.

For enhanced safety, the cabinet features interlocking of the UV Germicidal Lamp and Fluorescent Light, preventing simultaneous operation. The spacious working area is illuminated by a bright fluorescent tube, and a gas cock is provided for convenient laboratory operations. The unit operates on a standard 220–230V AC power supply.

Key Features

• Designed to provide Class 100 particle-free clean air
• Uniform horizontal laminar airflow for contamination-free operation
• Heavy-duty Mild Steel Epoxy Powder Coated cabinet
• Thick board construction with Sunmica finish (model dependent)
• Stainless steel working table for hygienic and corrosion-resistant operation
• Transparent Plexiglass side panels and front door for excellent visibility
• High-efficiency Pre-Filter and HEPA Filter
• Dynamically and statically balanced blower and motor assembly
• Heavy-duty motor with low noise and vibration
• UV Germicidal Lamp and Fluorescent Lamp interlocking for enhanced safety
• Bright fluorescent lighting for clear workspace illumination
• Built-in gas cock for laboratory applications
• Easy operation and low maintenance
• Operates on 220–230V AC, 50 Hz

Applications

• Microbiology Laboratories
• Pharmaceutical Manufacturing
• Biotechnology Laboratories
• Tissue Culture Laboratories
• Hospitals & Diagnostic Laboratories
• Research & Development Centers
• Electronics Assembly
• Food & Beverage Testing Laboratories
• Quality Control Laboratories
• Educational & Research Institutions

Technical Specifications

• Product Type: Horizontal Laminar Air Flow Cabinet
• Air Quality: Class 100 Clean Air
• Airflow: Horizontal Laminar Flow
• Body Construction: Mild Steel Epoxy Powder Coated / Sunmica-Finished Thick Board
• Work Surface: Stainless Steel
• Viewing Panels: Transparent Plexiglass
• Filtration: Pre-Filter + HEPA Filter
• Lighting: Fluorescent Tube
• UV Lamp: Germicidal UV with Safety Interlock
• Additional Feature: Gas Cock
• Power Supply: 220–230V AC, 50 Hz

Standard Accessories

• Horizontal Laminar Air Flow Cabinet
• HEPA Filter
• Pre-Filter
• UV Germicidal Lamp
• Fluorescent Light
• Stainless Steel Work Surface
• Gas Cock
• Power Cord
• User Instruction Manual

Why Choose AVAIN LABS®?

AVAIN LABS® is a trusted manufacturer of high-quality laboratory equipment, delivering precision-engineered solutions for research, healthcare, pharmaceutical, and industrial laboratories. The Horizontal Laminar Air Flow Cabinet is built to provide reliable contamination control, superior airflow performance, quiet operation, and long-lasting durability, making it the ideal choice for laboratories requiring sterile working conditions.
