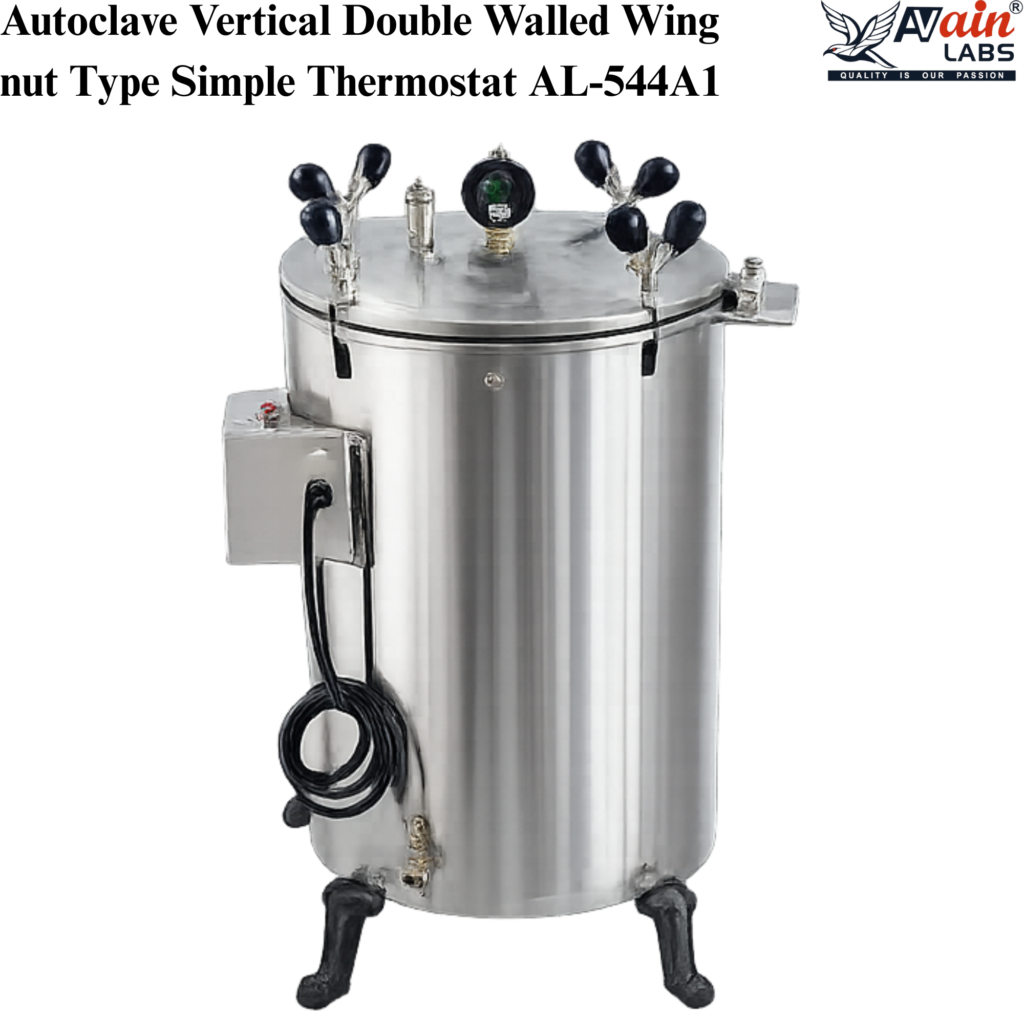

The AVAIN LABS® Vertical Double Walled Autoclave – Wing Nut Type with Simple Thermostat is a high-performance laboratory sterilization unit designed for hospitals, research laboratories, pharmaceutical industries, microbiology labs, educational institutions, clinics, and industrial applications. Built with premium stainless steel construction, this vertical autoclave delivers reliable, safe, and efficient steam sterilization for laboratory instruments, glassware, surgical tools, culture media, dressings, and other sterilizable materials.

The autoclave features a double-walled vertical construction, with the inner chamber manufactured from high-quality Stainless Steel 304 Grade, ensuring excellent corrosion resistance, durability, and long service life. The outer body is also fabricated from stainless steel, providing a hygienic, rust-resistant, and easy-to-clean finish.

The lid is sealed using a jointless, high-grade Silicon-Neoprene gasket, ensuring a leak-proof steam seal while maintaining consistent pressure throughout the sterilization cycle. Depending on customer requirements, the unit is available with a Wing Nut Locking Mechanism or a Pedal Lifting System with Radial Locking Mechanism for convenient and secure operation.

Designed for dependable performance, the autoclave is equipped with a Simple Thermostat for temperature control and can be supplied with or without an Automatic Pressure Control Switch based on application requirements.

For enhanced safety and operational efficiency, the unit includes a pressure gauge, water level indicator, spring-loaded safety valve, drain cock, steam release cock, and a heavy-duty immersion type heating element for rapid steam generation.

The sterilizer is factory preset to operate at 15 PSI and 121°C, the internationally accepted sterilization standard, and each unit is hydraulically tested up to 30 PSI to ensure maximum safety and reliability.

Compatible with 230V AC (Single Phase) or 440V AC (Three Phase), 50 Hz power supply, the AVAIN LABS® Vertical Autoclave is suitable for continuous laboratory and industrial sterilization operations.

Key Features

• ✔ Double Walled Vertical Construction
• ✔ Complete Stainless Steel Body
• ✔ Inner Chamber made from Stainless Steel 304 Grade
• ✔ High-Grade Jointless Silicon-Neoprene Gasket
• ✔ Wing Nut Locking Mechanism for Secure Lid Closure
• ✔ Simple Thermostat Temperature Control
• ✔ Optional Automatic Pressure Control Switch
• ✔ Pressure Gauge for Accurate Pressure Monitoring
• ✔ Water Level Indicator
• ✔ Spring Loaded Safety Valve
• ✔ Steam Release Cock
• ✔ Drain Cock
• ✔ Heavy Duty Immersion Type Heater
• ✔ Factory Preset at 121°C & 15 PSI
• ✔ Hydraulically Tested up to 30 PSI
• ✔ Available in 230V Single Phase and 440V Three Phase, 50 Hz

Applications

• Hospitals
• Diagnostic Laboratories
• Research Laboratories
• Pharmaceutical Industries
• Biotechnology Labs
• Microbiology Laboratories
• Colleges & Universities
• Food Testing Laboratories
• Chemical Laboratories
• Medical Institutions
• Industrial Quality Control Labs

Ideal for sterilizing:

• Surgical Instruments
• Laboratory Glassware
• Culture Media
• Dressing Materials
• Rubber Goods
• Stainless Steel Instruments
• Laboratory Equipment

Technical Specifications

Why Choose AVAIN LABS®?

AVAIN LABS® laboratory equipment is engineered for precision, durability, and dependable performance. Our vertical autoclaves are manufactured using premium-grade stainless steel components, ensuring reliable sterilization, long operational life, and compliance with laboratory safety standards. Designed for professional laboratory environments, they deliver consistent sterilization performance while requiring minimal maintenance.
