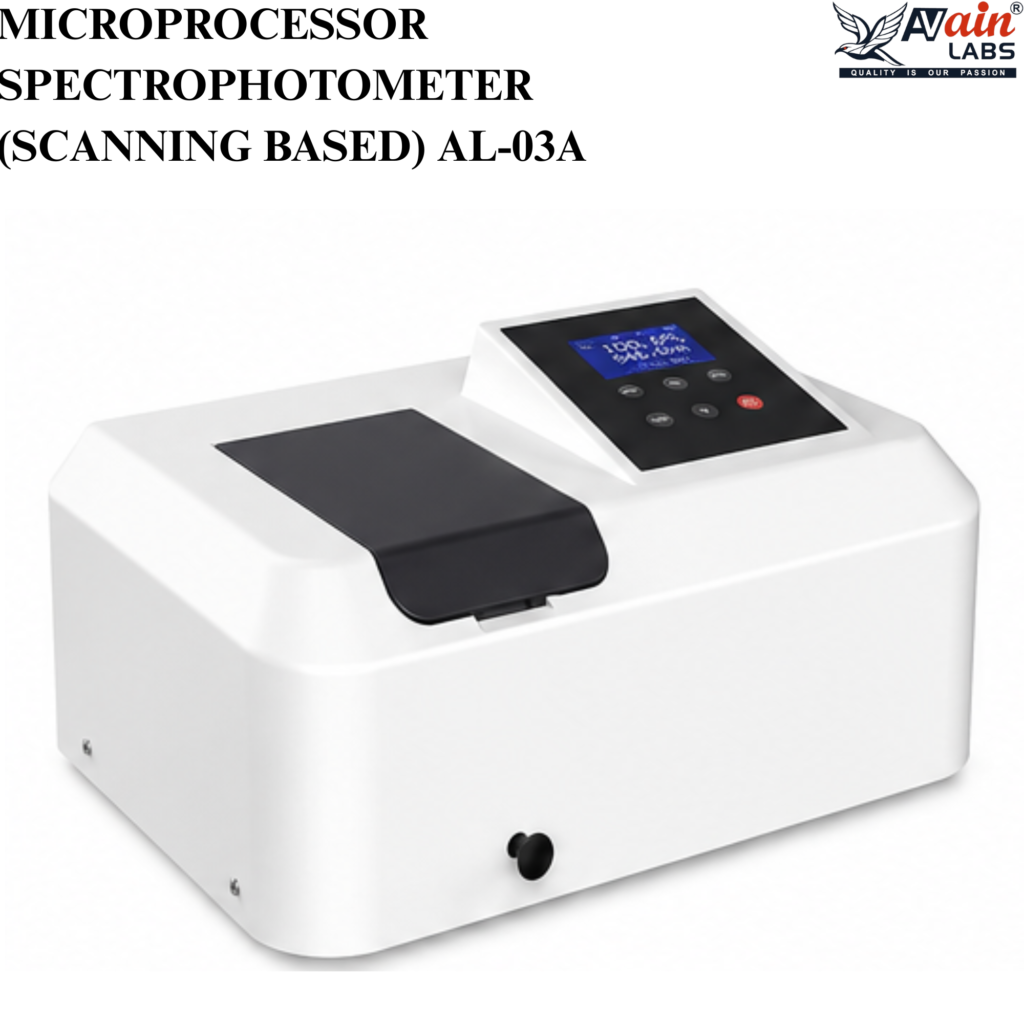

AVAIN LABS® MICROPROCESSOR SPECTROPHOTOMETER (SCANNING BASED) AL-03A

AVAIN LABS® MICROPROCESSOR SPECTROPHOTOMETER (SCANNING BASED) AL-03A

The AVAIN LABS® Microprocessor Spectrophotometer (Scanning Based) – Model AL-03A is a high-performance analytical instrument designed for precise and reliable measurement of absorbance, transmittance, optical density, and concentration in laboratories across pharmaceutical, biotechnology, environmental, clinical, educational, and industrial sectors.

Featuring advanced microprocessor-controlled technology, the AL-03A offers a wavelength range of 325–1000 nm with fully automated scanning functionality for rapid and accurate spectral analysis. The instrument is equipped with automatic filter calibration, automatic graph plotting, and instant result generation, making it ideal for routine laboratory testing and research applications.

The integrated 2.9-inch graphical LCD display provides clear visualization of spectral graphs, scanning curves, and analytical results, while the high-speed processing system delivers results in as little as 2 seconds, improving laboratory productivity and workflow efficiency.

Designed with a 4 nm spectral bandwidth and 10 nm wavelength resolution, the AL-03A ensures excellent analytical performance for educational and industrial applications alike. The instrument accommodates standard 1 cm path length cuvettes as well as 13 mm OD test tubes, offering flexibility for multiple sample types and testing methods.

Key Features

Advanced Microprocessor-Based Scanning Spectrophotometer.
Wide wavelength range of 325 to 1000 nm.
Automatic Scanning Facility for spectral analysis.
Automatic Filter Calibration for improved accuracy and reduced maintenance.
Automatic display of graphs, spectra, and analytical results.
Large 2.9-inch Graphical LCD Display for easy operation.
Supports both Scanning Mode and Optical Density (OD) Mode.
High-speed analysis with results available in approximately 2 seconds.
Spectral bandwidth of 4 nm for precise measurements.
Wavelength resolution of 10 nm.
Compatible with 1 cm path length cuvettes.
Supports 13 mm OD sample tubes.
User-friendly interface with microprocessor-controlled operation.
Reliable and stable performance for laboratory environments.
Operates on standard 220V AC, 50Hz power supply.

Technical Specifications

Parameter	Specification
Product Name	Microprocessor Spectrophotometer (Scanning Based)
Model Number	AL-03A
Brand	AVAIN LABS®
Technology	Microprocessor Controlled
Wavelength Range	325 – 1000 nm
Resolution	10 nm
Spectral Bandwidth	4 nm
Display	2.9-inch Graphical LCD
Measurement Modes	Scanning Mode, OD Mode
Scanning Facility	Automatic
Filter Calibration	Automatic
Result Display	Automatic Graph and Result Display
Analysis Speed	Approx. 2 Seconds
Cuvette Compatibility	1 cm Path Length Cuvettes
Tube Compatibility	13 mm OD Tubes
Power Supply	AC 220V, 50Hz

Applications

Pharmaceutical quality control laboratories
Biotechnology and life science research
Clinical and diagnostic laboratories
Environmental testing laboratories
Water quality analysis
Food and beverage testing
Educational institutions and universities
Chemical and industrial laboratories
Optical density measurements for microbiology applications
Absorbance and transmittance studies

Why Choose AVAIN LABS® AL-03A?

The AVAIN LABS® AL-03A Scanning Microprocessor Spectrophotometer combines automation, speed, and analytical precision in a compact and user-friendly instrument. With features such as automatic scanning, auto calibration, graphical display, and rapid analysis, it is an ideal solution for laboratories seeking reliable performance and efficient workflow management.
