AVAIN LABS® BINOCULAR MICROSCOPE

AVAIN LABS® BINOCULAR MICROSCOPE

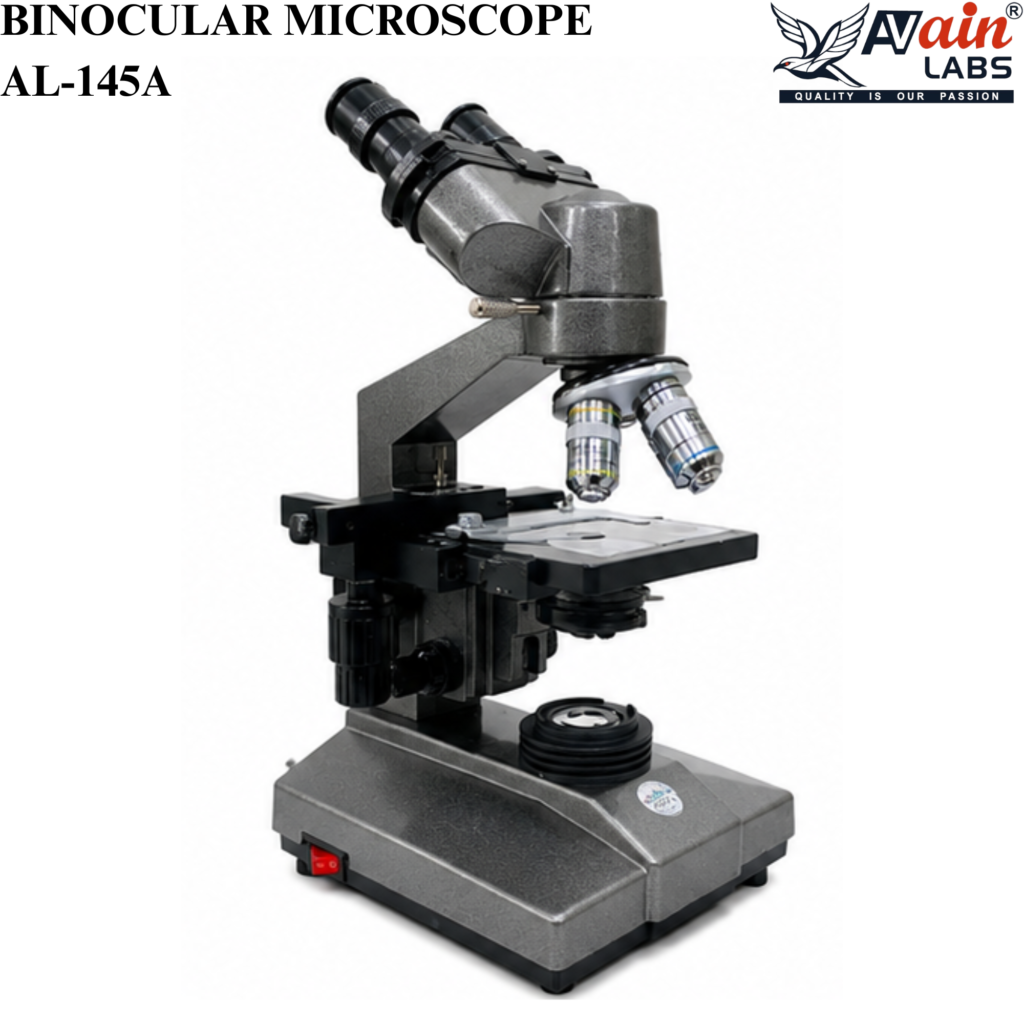

AL-145A BINOCULAR MICROSCOPE: A rigid and heavy stand, observation binocular head inclined at 45° and rotatable through 360° assembled from high quality prisms to ensure  highly  accurate  collimation  for  stain  free observation.  Adjustable  Interpupillary  and  dioptric distance. Quadruple revolving nose-piece with click stop. Fixed stage 140 x125 mm with precision co-axial mechanical stage for X and Y movement of slide up to 50 x 75 mm Only best quality objectives and eyepieces are supplied to provide finest performance. These are para focalised and pre centred with each microscope after the most stringent tests. LED light with two wide field 10x , (Brass) ·four objectives 5x ,10x, 45x , 100 x oil  dean German type ·with movable condenser , big body ·coaxial mechanical stage ·Superior
AL-145B BINOCULAR MICROSCOPE: A rigid and heavy stand, observation binocular head inclined at 45° and rotatable through 360° assembled from high quality prisms to ensure highly accurate collimation for stain free observation. Adjustable Interpupillary and dioptric distance. Quadruple revolving nose-piece with click stop. Fixed stage 140 x125 mm with precision co-axial mechanical stage for X and Y movement of slide up to 50 x 75 mm Only best quality objectives and eyepieces are supplied to provide finest performance. These are para focalised and pre centred with each microscope after the most stringent tests. LED light ·with two wide field 10x, (Brass) ·four objectives 5x ,10x, 45x , 100 x oil (Brass) ·with movable condenser , big body ·coaxial mechanical stage ·Superior
AL-145C BINOCULAR MICROSCOPE: A rigid and small stand, observation binocular head inclined at 45° and rotatable through 360° assembled from high quality prisms to ensure  highly  accurate  collimation  for  stain  free observation.  Adjustable  Interpupillary  and  dioptric distance. Quadruple revolving nose-piece with click stop. Fixed stage 140 x125 mm with precision co-axial mechanical stage for X and Y movement of slide up to 50 x 75 mm Only best quality objectives and eyepieces are supplied to provide finest performance. These are para focalised and pre centred with each microscope after the most stringent tests. LED light
  • with two wide field 10x , (Aluminium)
  • four objectives 5x  ,10x,  45x  ,  100  x  oil (Aluminium)
  • with movable condenser, small base
  • coaxial mechanical stage
  • Normalquality
AL-145D BINOCULAR MICROSCOPE: A rigid and small stand, observation binocular head inclined at 45° and rotatable through 360° assembled from high quality prisms to ensure  highly  accurate  collimation  for  stain  free observation.  Adjustable  Interpupillary  and  dioptric distance. Quadruple revolving nose-piece with click stop. Fixed stage 140 x125 mm with precision co-axial mechanical stage for X and Y movement of slide up to 50 x 75 mm These are para focalised and pre centred with each microscope after the most stringent tests. LED light ·with two wide field 10x (Aluminium-plastic) ·four  objectives  5x  ,10x,  45x  ,  100  x  oil (Aluminium-plastic) ·with movable condenser, small base ·coaxial mechanical stage ·Normalkit type
