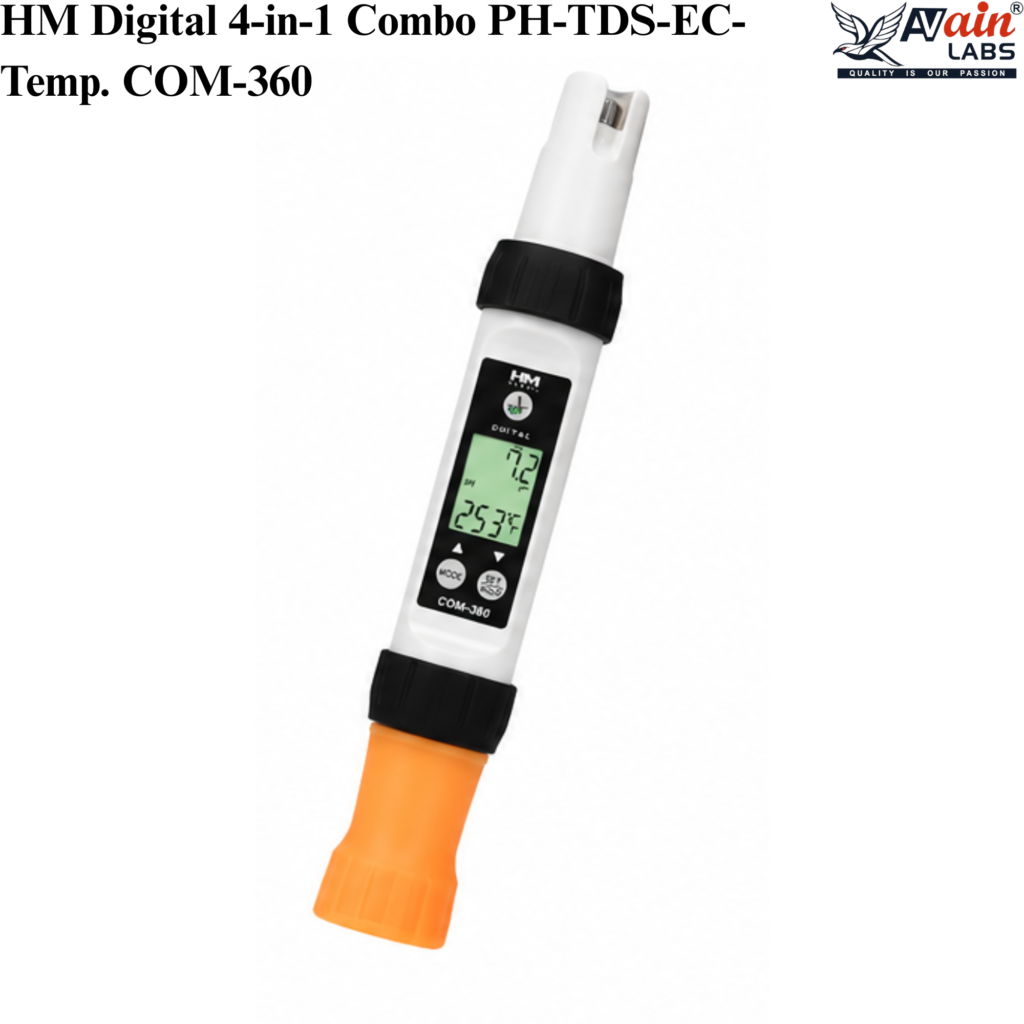

AVAIN LABS® HM Digital 4-in-1 Combo PH-TDS-EC-Temp COM-360

AVAIN LABS® HM Digital 4-in-1 Combo PH-TDS-EC-Temp COM-360

The AvainLabs® HM Digital 4-in-1 Combo pH-TDS-EC-Temperature Meter COM-360 is a versatile digital water quality testing instrument designed to measure pH, TDS (Total Dissolved Solids), EC (Electrical Conductivity), and Temperature in a single compact device. It is ideal for professional and routine water testing applications in laboratories, hydroponics, aquariums, water treatment, agriculture, swimming pools, and general water quality monitoring.

The COM-360 provides a pH measuring range of 0.0 to 14.0 pH, EC measurement up to 9990 µS / 9.99 mS, and TDS measurement up to 8560 ppm (mg/L). It also supports 0.5 (NaCl) and 0.7 (442) TDS scales, allowing flexible measurement for different testing requirements.

The meter features digital 1-point calibration, a water-resistant splash-proof housing, compact dimensions, and battery-powered operation, making it convenient for both laboratory and portable on-site testing.

Key Features

4-IN-1 MULTI-PARAMETER TESTER: Measures pH, TDS, EC (Electrical Conductivity), and Temperature in one compact digital meter.
WIDE pH RANGE: Measures 0.0 to 14.0 pH with 0.1 pH resolution and approximately ±0.1 pH accuracy.
WIDE EC RANGE: Measures EC from 0 to 9990 µS and 0 to 9.99 mS for a broad range of conductivity testing applications.
MULTIPLE TDS SCALES: TDS range up to 8560 ppm (mg/L) with 0.5 (NaCl) and 0.7 (442) scale options, plus a 0–5000 ppm (mg/L) range.
TEMPERATURE MEASUREMENT: Measures temperature from 0.1 to 50°C (32 to 122°F) with 0.1°C/°F resolution.
RELIABLE ACCURACY: pH accuracy of approximately ±0.1 pH and TDS/EC accuracy of approximately ±2% F.S.
DIGITAL 1-POINT CALIBRATION: Features 1-point digital calibration for convenient calibration and routine testing.
WATER-RESISTANT HOUSING: Designed with a water-resistant, splash-proof housing for added protection during water testing.
COMPACT & PORTABLE: Dimensions of approximately 200 x 34 x 34 mm, making it convenient for laboratory and field use.
BATTERY POWERED: Operates on 2 x 1.5V AAA batteries for convenient cordless operation.

Technical Specifications

Specification	Details
Model	COM-360
Product Type	4-in-1 pH-TDS-EC-Temperature Combo Meter
pH Range	0.0 to 14.0 pH
EC Range	0 to 9990 µS; 0 to 9.99 mS
TDS Range	0 to 8560 ppm (mg/L); 0–5000 ppm (mg/L)
TDS Scale	0.5 (NaCl) Scale; 0.7 (442) Scale
Temperature Range	0.1 to 50°C; 32 to 122°F
pH Resolution	0.1 pH
EC Resolution (0–999 µS)	1 µS
EC Resolution (1000–9990 µS)	10 µS
EC Resolution (0–9.99 mS)	0.01 mS
TDS Resolution (0–999 ppm)	1 ppm
TDS Resolution (1000–9990 ppm)	10 ppm
Temperature Resolution	0.1°C/°F
Accuracy	pH: ±0.1 pH; TDS/EC: ±2% F.S.
Calibration	1 Point (Digital)
Housing	Water Resistant (Splash Proof)
Power Source	2 x 1.5V AAA Batteries
Dimensions	200 x 34 x 34 mm

Applications

The AvainLabs® COM-360 4-in-1 Combo Meter is suitable for laboratory water testing, hydroponics, aquariums, drinking water monitoring, water treatment, agriculture, swimming pools, research, and general water quality analysis. Its combination of pH, TDS, EC, and temperature measurement provides a convenient solution for comprehensive water quality testing in one portable instrument.
