AVAIN LABS® Water Bath Paraffin

AVAIN LABS® Water Bath Paraffin

Our Water Bath Paraffin is designed for laboratories, hospitals, research centers, pathology labs, educational institutions, and industrial applications requiring precise and uniform heating of paraffin samples. Manufactured using premium-grade materials, this laboratory water bath delivers reliable temperature stability, excellent durability, and long service life.

The unit features a double-walled insulated construction with a stainless steel (SS) inner chamber and a powder-coated mild steel outer body, ensuring maximum heat retention and corrosion resistance. The space between the walls is insulated with high-quality glass wool, minimizing heat loss and improving energy efficiency.

Equipped with a high-performance immersion-type heating element, the Water Bath Paraffin provides fast and uniform heating. Temperature is accurately regulated by a hydraulic capillary thermostat, offering a working temperature range from ambient to 100°C with an accuracy of ±1°C and thermostatic control up to 99.8°C.

Ideal for routine laboratory procedures, histology, pathology, and paraffin wax applications, this water bath operates on a 220–230V AC power supply, ensuring dependable performance in demanding laboratory environments.

Key Features

Double-walled construction for superior insulation
Inner chamber made of high-quality Stainless Steel (SS)
Powder-coated mild steel outer body for enhanced durability
Glass wool insulation between walls for efficient heat retention
High-quality immersion-type heating element
Hydraulic capillary thermostat for precise temperature regulation
Temperature range: Ambient to 100°C
Thermostatic temperature control up to 99.8°C
Temperature accuracy of ±1°C
Uniform heat distribution for consistent performance
Operates on 220–230V AC power supply
Suitable for laboratories, pathology labs, hospitals, research institutes, and educational institutions

Technical Specifications

Specification	Details
Product	Water Bath Paraffin
Inner Chamber	Stainless Steel (SS)
Outer Body	Mild Steel with Powder Coating
Insulation	Glass Wool
Heating Element	Immersion Type
Temperature Range	Ambient to 100°C
Thermostatic Control	Up to 99.8°C
Temperature Accuracy	±1°C
Power Supply	220–230V AC

Applications

Histology Laboratories
Pathology Laboratories
Medical Laboratories
Research & Development Centers
Pharmaceutical Laboratories
Biotechnology Laboratories
Educational Institutions
Paraffin Wax Heating
Sample Warming and Laboratory Heating Applications

Available models

Cat No	Description	Material

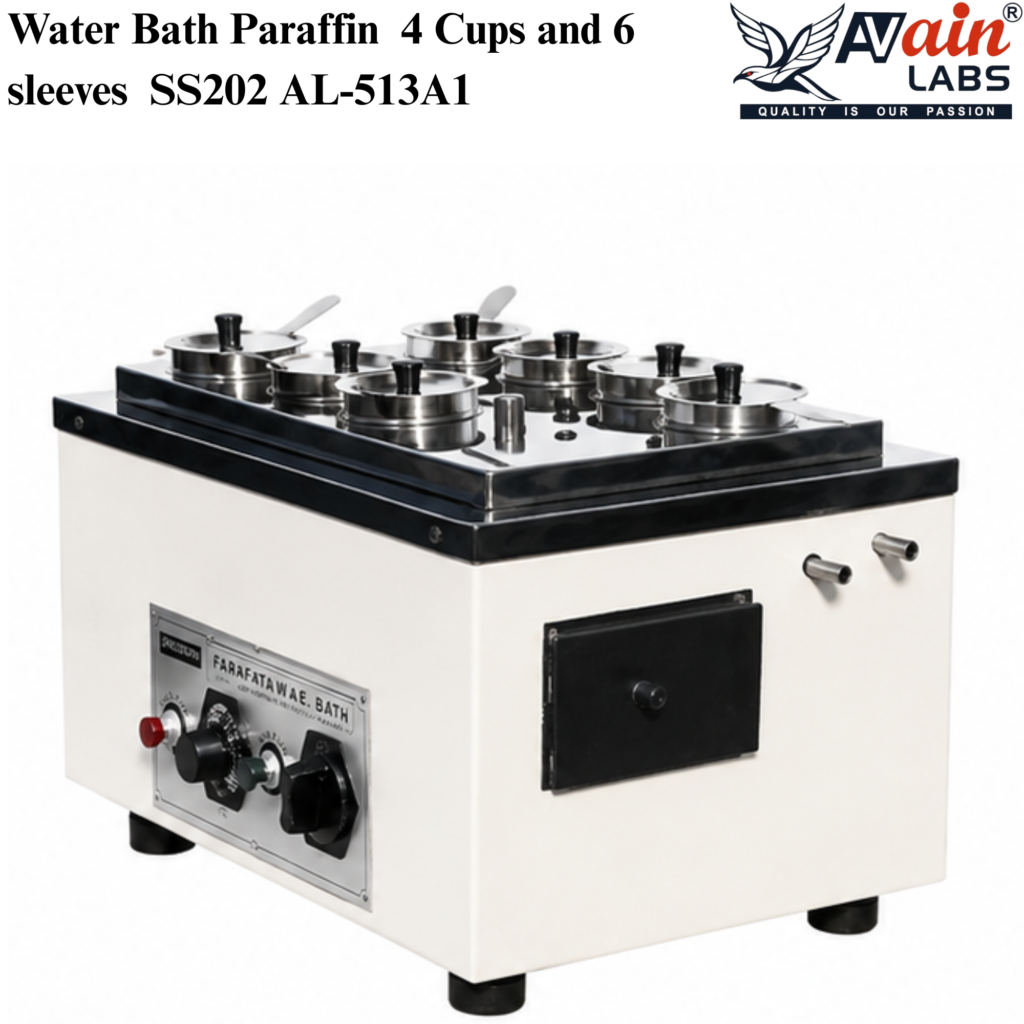

AL-513A1	4 Cups and 6 sleeves	SS 202
AL-513A2	4 Cups and 6 sleeves	SS 304
AL-513B1	6 Cups and 8 sleeves	SS 202
AL-513B2	6 Cups and 8 sleeves	SS 304
AL-513C1	12 Cups and 14 sleeves	SS 202
AL-513C2	12 Cups and 14 sleeves	SS 304
Optional (WBP1)	Microprocessor PID Digital Temp Controller
