AVAIN LABS® MONOCULAR MICROSCOPE

AVAIN LABS® MONOCULAR MICROSCOPE

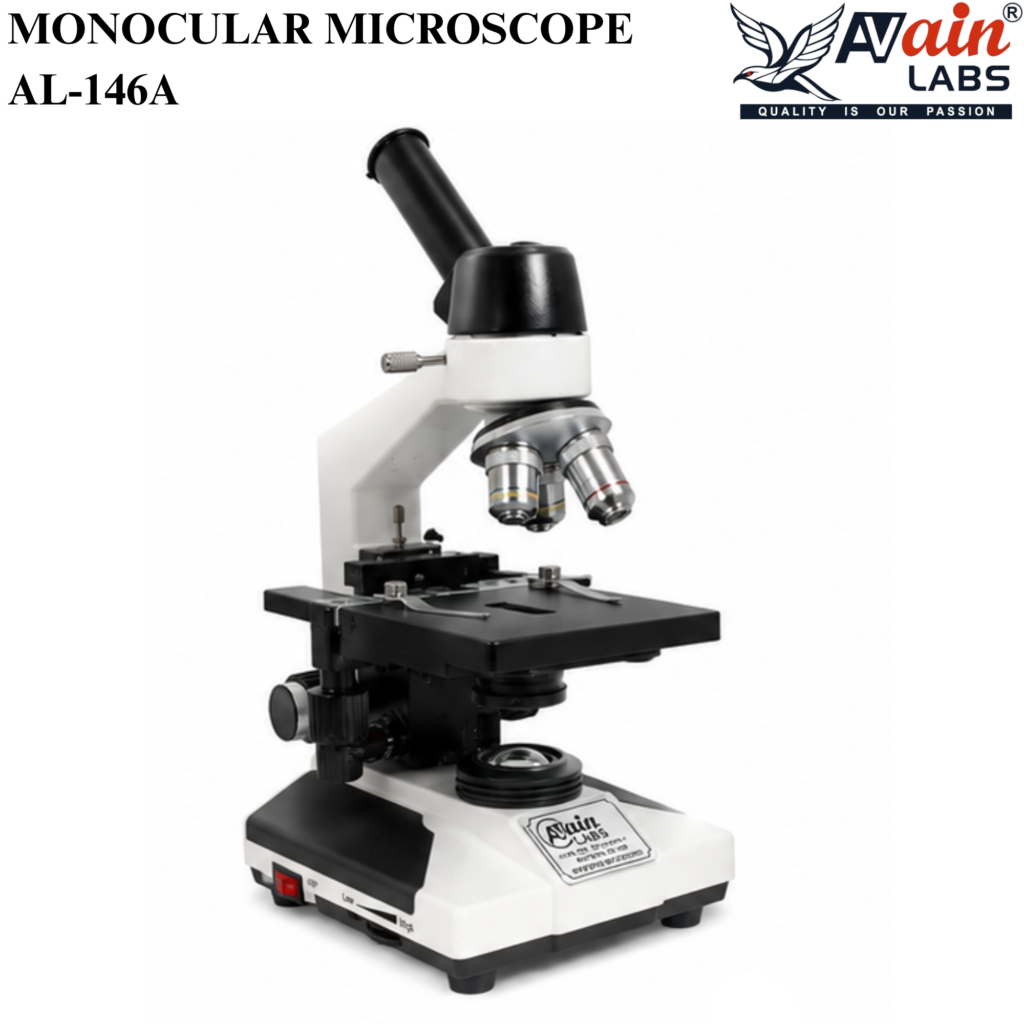

AL-146A MONOCULAR MICROSCOPE: A rigid and heavy stand, observation tube inclined at 45° and rotatable through 360° assembled from high quality prisms to ensure highly accurate collimation for stain free observation. Adjustable Interpupillary and dioptric distance. Quadruple revolving nose-piece with click stop. Fixed stage 140 x125 mm with precision co-axial mechanical stage for X and Y movement of slide up to 50 x 75 mm These are para focalised and pre centred with each microscope after the most stringent tests. LED light ·with two wide field 10x , (Brass) ·four objectives 5x ,10x, 45x , 100 x oil dean German type ·with movable condenser, big base ·coaxial mechanical stage ·Superior ·
AL-146B MONOCULAR MICROSCOPE: A rigid and heavy stand, observation tube inclined at 45° and rotatable through 360° assembled from high quality prisms to ensure highly accurate collimation for stain free observation. Adjustable Interpupillary and dioptric distance. Quadruple revolving nose-piece with click stop. Fixed stage 140 x125 mm with precision co-axial mechanical stage for X and Y movement of slide up to 50 x 75 mm These are para focalised and pre centred with each microscope after the most stringent tests. LED light ·with two wide field 10x , (Brass) ·four objectives 5x ,10x, 45x , 100 x oil (Brass) ·with movable condenser, big base ·coaxial mechanical stage ·Superior
AL-146C MONOCULAR MICROSCOPE: A rigid and small stand, observation tube inclined at 45° and rotatable through 360° assembled from high quality prisms to ensure highly accurate collimation for stain free observation. Adjustable Interpupillary and dioptric distance. Quadruple revolving nose-piece with click stop. Fixed stage 140 x125 mm with precision co-axial mechanical stage for X and Y movement of slide up to 50 x 75 mm These are para focalised and pre centred with each microscope after the most stringent tests. LED light ·with two wide field 10x , (Aluminium) ·four  objectives  5x  ,10x,  45x  ,  100  x  oil (Aluminium) ·with movable condenser, ·coaxial mechanical stage Normalkit type
AL-146D MONOCULAR MICROSCOPE: A rigid and heavy stand, observation tube inclined at 45° and rotatable through 360° assembled from high quality prisms to ensure  highly  accurate  collimation  for  stain  free observation.  Adjustable  Interpupillary  and  dioptric distance. Quadruple revolving nose-piece with click stop. Fixed stage 140 x125 mm with precision co-axial mechanical stage for X and Y movement of slide up to 50 x 75 mm These are para focalised and pre centred with each microscope after the most stringent tests. LED light ·with two wide field 10x , (Aluminium-plastic) ·four  objectives  5x  ,10x,  45x  ,  100  x  oil (Aluminium-plastic) ·with movable condenser, small base ·coaxial mechanical stage ·Normal Quality
