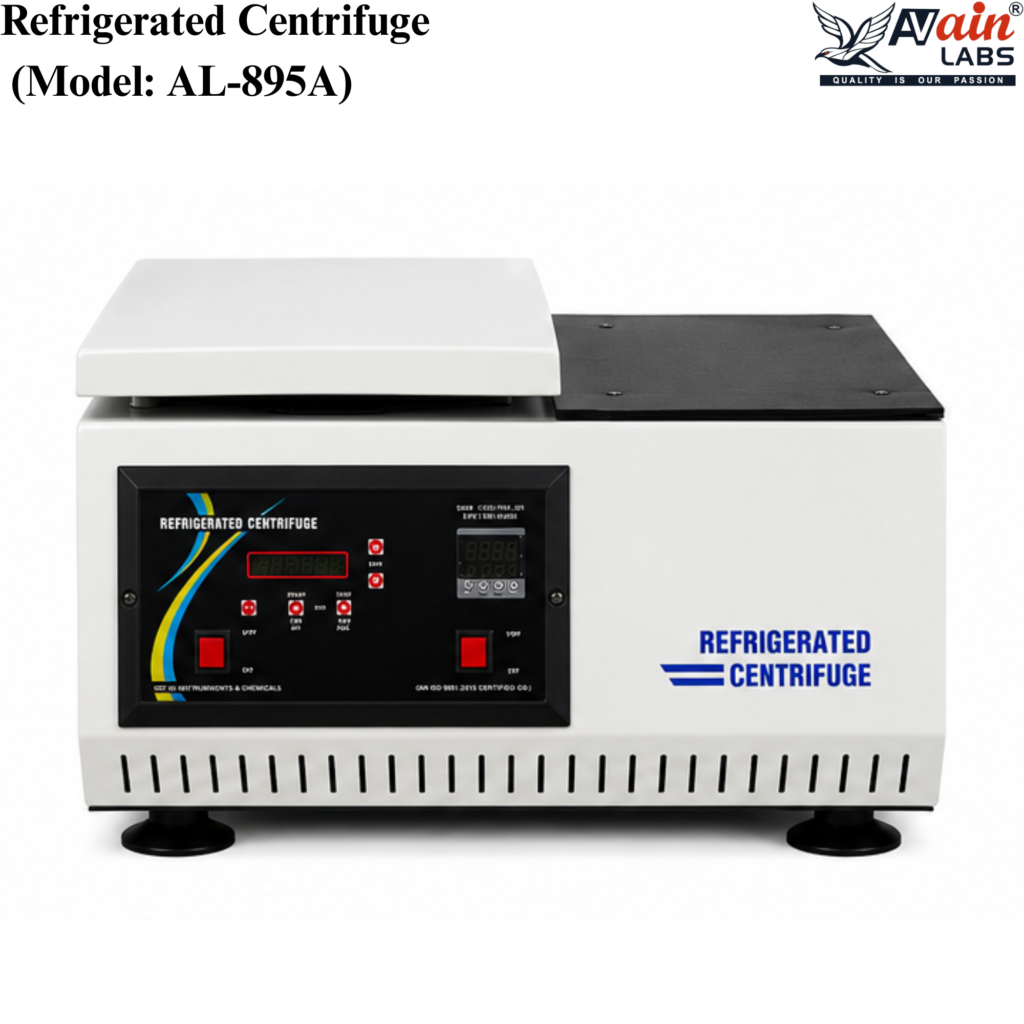

The AVAINLABS® Refrigerated Centrifuge Model AL-895A is a high-performance, microprocessor-based laboratory centrifuge engineered for precise, high-speed sample separation under controlled temperature conditions. Designed for clinical diagnostics, biotechnology, molecular biology, pharmaceutical research, and industrial laboratories, the AL-895A delivers reliable performance with a maximum speed of 16,000 RPM and refrigeration down to -10°C.
The centrifuge is manufactured with a heavy-duty C.R.C. powder-coated steel body and a stainless steel centrifuge chamber, ensuring excellent durability, corrosion resistance, and easy maintenance. Its advanced microprocessor control system features a 20-character LCD display for monitoring speed, run time, and refrigeration settings, allowing accurate and repeatable laboratory operations.
Equipped with a P.I.D. electronic digital temperature controller, the AL-895A maintains stable temperatures from ambient down to -10°C, protecting temperature-sensitive biological samples, enzymes, proteins, nucleic acids, and clinical specimens during centrifugation. The refrigeration system automatically switches to standby mode once the desired temperature is achieved, improving energy efficiency while maintaining precise cooling. Similar refrigerated centrifuges commonly combine microprocessor control, LCD displays, programmable speed, and refrigerated operation for laboratory sample separation.
The AVAINLABS® AL-895A is supplied without a rotor, allowing laboratories to choose the most appropriate rotor configuration according to their application requirements.
| Specification | Details |
|---|---|
| Brand | AVAINLABS® |
| Model | AL-895A |
| Product Type | Refrigerated Centrifuge |
| Maximum Speed | 16,000 RPM |
| Maximum RCF | 16,800 × g |
| Motor | Universal Motor with Carbon Brushes |
| Temperature Range | Ambient to -10°C |
| Temperature Controller | P.I.D. Digital Controller |
| Display | 20-Character LCD Display |
| Timer | Digital, 1–99 Minutes |
| Speed Range | 500–16,000 RPM |
| Speed Resolution | 100 RPM |
| Power Supply | AC 220V, 50Hz |
| Construction | Powder-Coated C.R.C. Steel |
| Chamber | Stainless Steel |
| Approx. Weight | 55 kg |
| Approx. Dimensions | 25" (L) × 20" (W) × 14" (H) |
The AVAINLABS® AL-895A supports multiple rotor options to suit different laboratory applications.
| Rotor Type | Capacity | Maximum Speed | Maximum RCF |
|---|---|---|---|
| Angle Rotor | 12 × 1.5/2.2 ml | 16,000 RPM | 16,800 × g |
| Angle Rotor | 24 × 1.5/2.2 ml | 13,000 RPM | 13,910 × g |
| Angle Rotor | 8 × 15 ml | 7,000 RPM | 7,490 × g |
| Angle Rotor | 4 × 50 ml | 7,000 RPM | 7,490 × g |
Optional Accessories
