SENIOR MEDICAL MICROSCOPE AL-144C

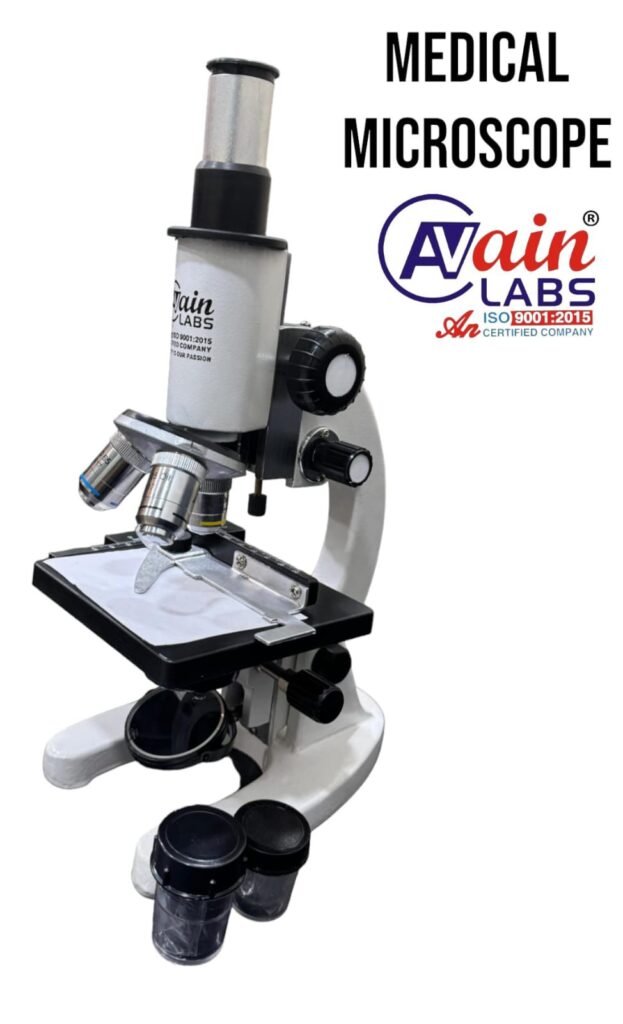

The AVAIN LABS Senior Medical Microscope (AL-144C) is a high-performance optical instrument designed for advanced laboratory, medical, and educational applications. Built for precision and durability, this microscope delivers sharp image clarity, smooth operation, and accurate specimen positioning, making it ideal for professional and academic use.

Equipped with a triple revolving nosepiece with click-stop mechanism, it allows seamless switching between objective lenses for efficient observation. The microscope features separate coarse and fine focusing knobs with a safety stopper, ensuring precise focusing while protecting slides from accidental damage.

The fixed stage (120 mm x 120 mm) is fitted with a precision mechanical stage, enabling smooth X-Y movement (up to 50 mm x 75 mm) with graduated scales and verniers for accurate slide positioning and measurement. This enhances usability for detailed examination and repeatable results.

The microscope is supported by a stable horseshoe base with 1°–90° inclination, providing flexibility and ergonomic comfort during prolonged use. It is also equipped with an Abbe condenser (N.A. 1.25) with iris diaphragm, allowing precise control of light intensity and improved resolution. The condenser can be adjusted vertically using a rack and pinion mechanism for optimal illumination.

Key Features:

• Triple revolving nosepiece with click-stop
• Separate coarse & fine focus with slide safety stopper
• Fixed stage (120 mm x 120 mm) with mechanical X-Y movement
• Slide movement up to 50 mm x 75 mm with vernier scale
• Horseshoe base inclinable from 1° to 90°
• Abbe condenser N.A. 1.25 with iris diaphragm
• Rack and pinion condenser adjustment
• Robust and stable construction for long-term use

Common Applications:

• Medical and clinical laboratories
• Biological and microbiology studies
• Educational institutions and research labs
• Pathology and sample analysis
• Advanced training and academic use
