AVAIN LABS® HM Digital ORP ORP-200

AVAIN LABS® HM Digital ORP ORP-200

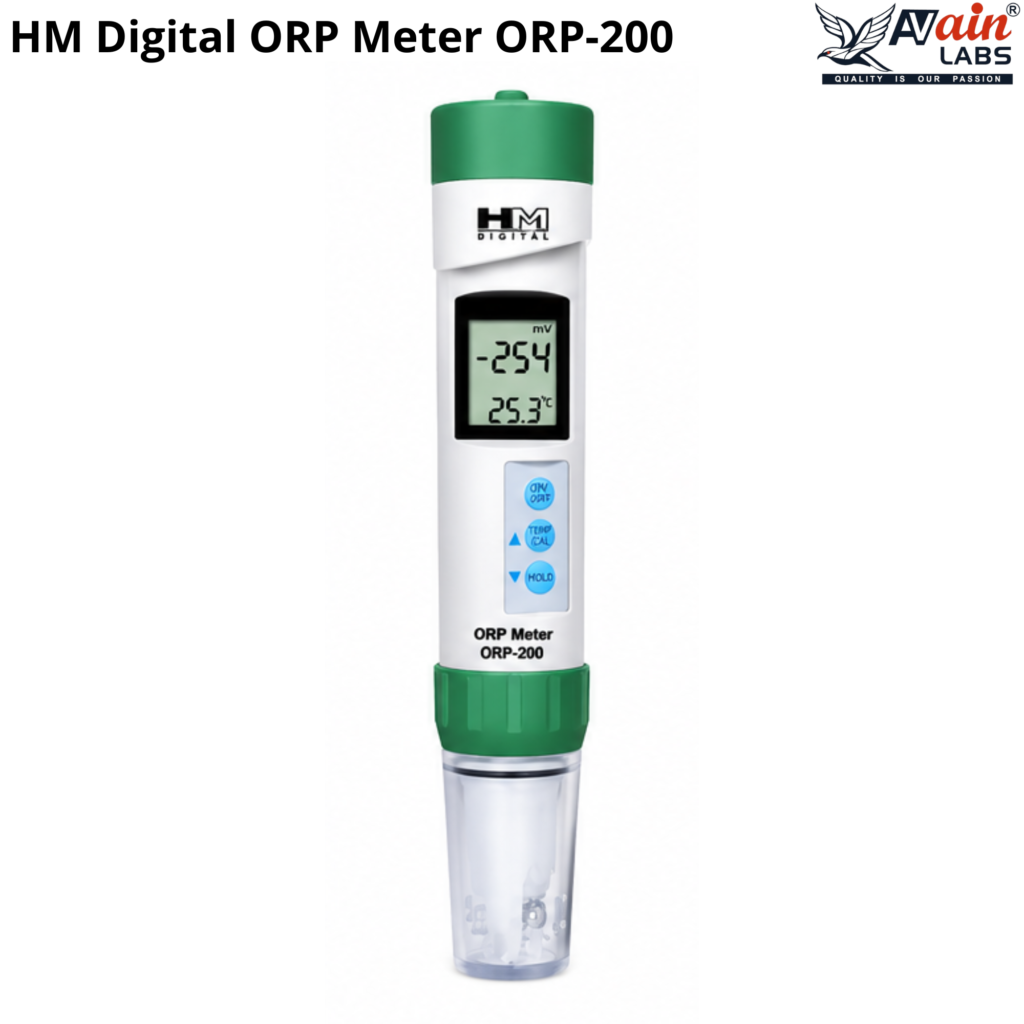

The AVAIN LABS® HM Digital ORP Meter ORP-200 is a compact digital instrument designed for measuring Oxidation-Reduction Potential (ORP) in liquid samples. It offers a measuring range of -999 mV to +1000 mV, 1 mV resolution, and high measurement accuracy, making it suitable for routine water-quality and laboratory testing applications. The ORP-200 format is commonly used for applications such as water treatment, aquaculture, hydroponics, environmental testing, and other ORP monitoring requirements. 

Key Features

Wide ORP Measuring Range: -999 mV to +1000 mV
Resolution: 1 mV for precise ORP readings
High Accuracy: ±2 mV or ±0.5%
1-Point Screw-Type Calibration
Compact Digital ORP Meter
Operating Temperature: 0°C to 80°C
Battery Powered: 2 × 1.5 V AAA
Compact Dimensions: 185 × 34 × 34 mm

Technical Specifications

Specification	Details
Brand	AVAIN LABS®
Product	HM Digital ORP Meter
Model	ORP-200
Measuring Range	-999 mV to +1000 mV
Resolution	1 mV
Accuracy	±2 mV or ±0.5%
Calibration	1 Point (Screw Type)
Operating Temperature	0°C to 80°C
Power Source	2 × 1.5 V (AAA)
Dimensions	185 × 34 × 34 mm

Applications

The AVAIN LABS® ORP-200 can be used for water quality testing, water treatment, aquaculture, hydroponics, environmental monitoring, laboratory testing, aquarium applications, and oxidation-reduction potential measurement. ORP is expressed in millivolts and is used to characterize the oxidizing or reducing conditions of a solution.
