AVAIN LABS® TRAVELLING MICROSCOPE

AVAIN LABS® TRAVELLING MICROSCOPE

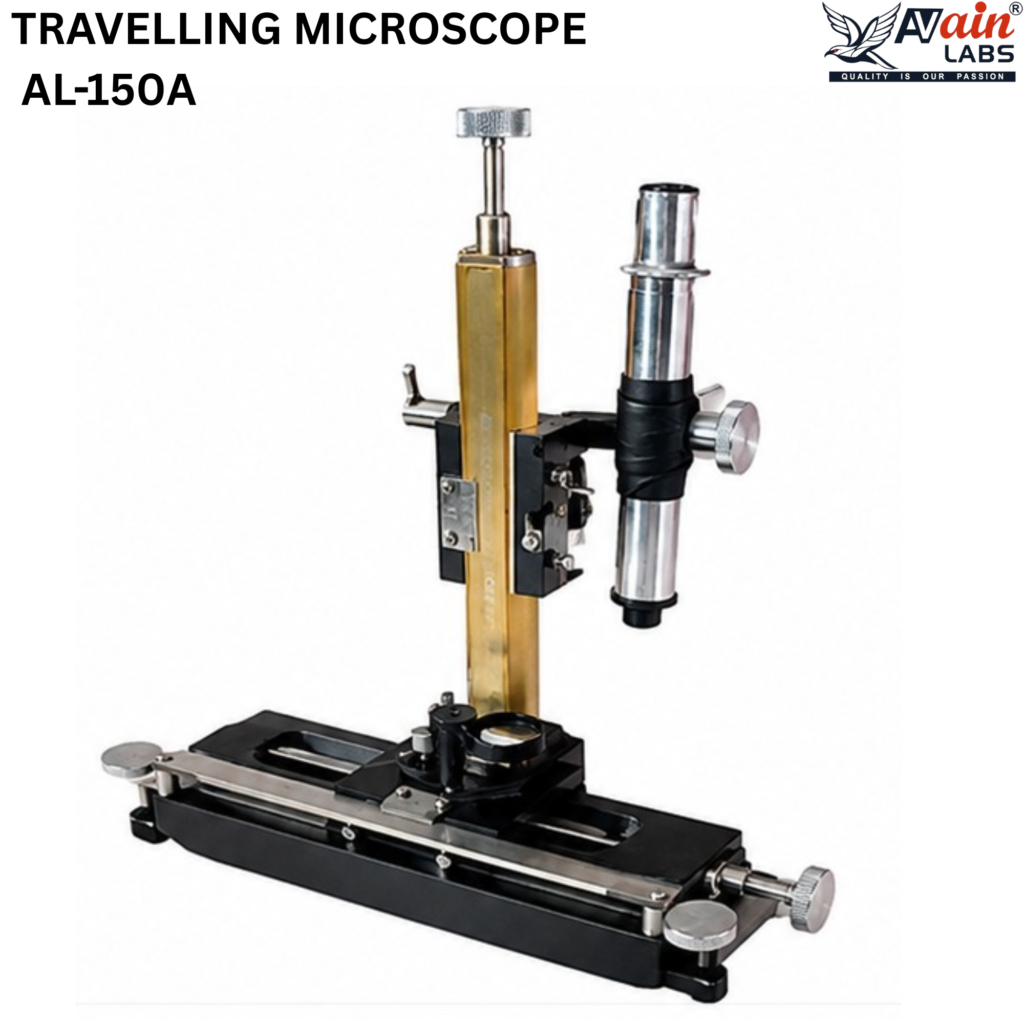

AL-150A TRAVELLING MICROSCOPE: The microscope consists of a heavy cast iron base fitted with three levelling screws with the top machined over which slides a gun metal carriage. •The slide can be clamped of any position by   means  of  a  clamping  screw,  Fine Adjustments for final reading is done with a micrometer screw. •A vertical slide operating in a similar way is fitted on the horizontal carriage. •The microscope with rack and pinion is fitted   on the vertical or horizontal position of   microscope. •Microscope tube is fitted with 10x Ramsden Eye Piece with cross line graticule & an Achromatic 2 or 3" focal length objective of high quality. •Travels 17 cms horizontally and 14 cms vertically.  Guaranteed  accurate  vernier reading 0.02 or 0.01 mm. •With swing out magnifier for reading vernier. Packed in a sturdy wooden box.
AL-150B TRAVELLING MICROSCOPE: The microscope consists of a heavy cast iron base fitted with three levelling screws with the top machined over which slides a gun metal carriage. •The slide can be clamped of any position by   means  of  a  clamping  screw,  Fine Adjustments for final reading is done with a micrometer screw. •A vertical slide operating in a similar way is   fitted on the horizontal carriage. •The microscope with rack and pinion is fitted on the vertical or horizontal position of microscope. •Microscope tube is fitted with 10x Ramsden   Eye Piece with cross line graticule & an   Achromatic 2 or 3" focal length objective of high quality. •Travels  22  cms  horizontally  and  14  cms   vertically.  Guaranteed  accurate  vernier   reading 0.02 or 0.01 mm. With swing out magnifier for reading vernier. Packed in a sturdy wooden box.
AL-150C TRAVELLING MICROSCOPE: DELUXE MODEL The microscope consists of a heavy cast iron base fitted with three levelling screws with the top machined over which slides a gun metal carriage. •The slide can be clamped of any position by   means  of  a  clamping  screw,  Fine   Adjustments for final reading is done with a   micrometer screw.
  • A vertical slide operating in a similar way is fitted on the horizontal carriage.
  • The microscope with rack and pinion is fitted on the vertical or horizontal position of
microscope.
  • Microscope tube is fitted with 10x Ramsden Eye Piece with cross line graticule & an Achromatic 2 or 3" focal length objective of   high quality.
  • Travels 22 cms horizontally and 16 cms vertically. Guaranteed  accurate  vernier   reading 0.02 or 0.01 mm.
With swing out magnifier for reading vernier. Packed in a sturdy wooden box.
