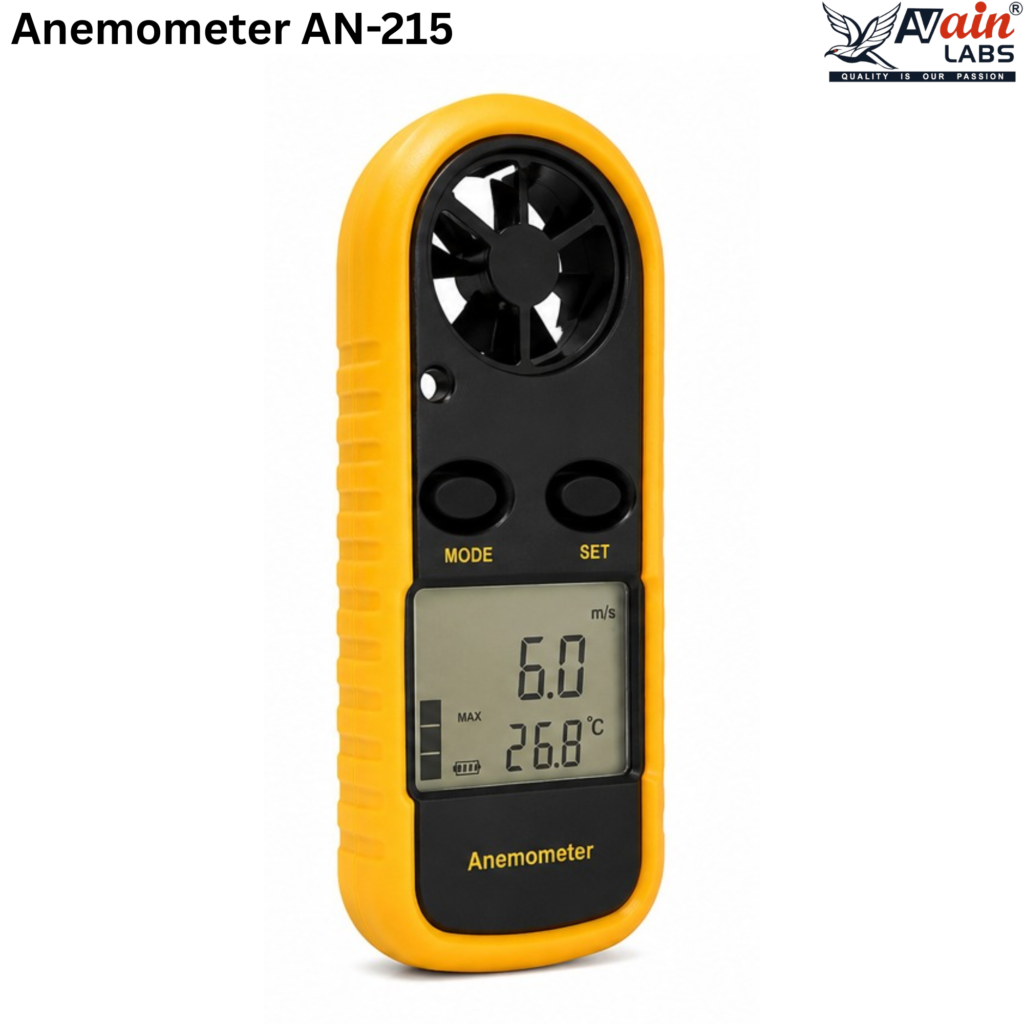

The AVAIN LABS® Anemometer AN-215 is a compact and reliable digital air velocity meter designed for measuring air speed across multiple units, including m/s, ft/min, knots, km/h and mph. It is suitable for laboratories, HVAC applications, environmental monitoring, industrial workplaces, educational institutions and general air-flow measurement applications.
The AN-215 features Max, Average and Current air velocity measurement, allowing users to monitor different air-flow conditions conveniently. It also includes a Beaufort scale, backlight display, low-battery indication and manual/automatic power shut-off for convenient operation.
The instrument incorporates an NTC thermometer and supports an operating temperature range of -10°C to +45°C, making it a practical handheld instrument for a variety of measurement environments.
| Unit | Range | Resolution | Threshold | Accuracy |
|---|---|---|---|---|
| m/s | 0–30 | 0.1 | 0.1 | ±5% |
| ft/min | 0–5860 | 19 | 39 | ±5% |
| knots | 0–55 | 0.2 | 0.1 | ±5% |
| km/h | 0–90 | 0.3 | 0.3 | ±5% |
| mph | 0–65 | 0.2 | 0.2 | ±5% |
| Specification | Details |
| Thermometer | NTC Thermometer |
| Operating Temperature | -10°C to +45°C (14°F to 113°F) |
| Operating Humidity | Less than 90% RH |
| Storage Temperature | -40°C to +60°C (-40°F to 140°F) |
| Current Consumption | Approx. 3 mA |
| Weight | 52 g |
| Dimensions | 40 × 18 × 105 mm |
| Power Source | 1 × 3V CR2032 |
The AVAIN LABS® AN-215 provides versatile air velocity measurement in multiple commonly used units. Its Max, Average and Current measurement modes make it suitable for checking changing air-flow conditions and obtaining useful readings in laboratory and field environments.
The integrated Beaufort scale provides an additional way to evaluate wind or air movement, while the backlit display improves readability in different working conditions.
The AVAIN LABS® AN-215 Anemometer can be used for:
The AN-215 Digital Anemometer combines multiple air velocity measurement units, Max/Average/Current functions, a Beaufort scale and an integrated NTC thermometer in a compact instrument. With its lightweight 52 g construction and convenient backlight display, it is a practical solution for routine air velocity and environmental measurements.
