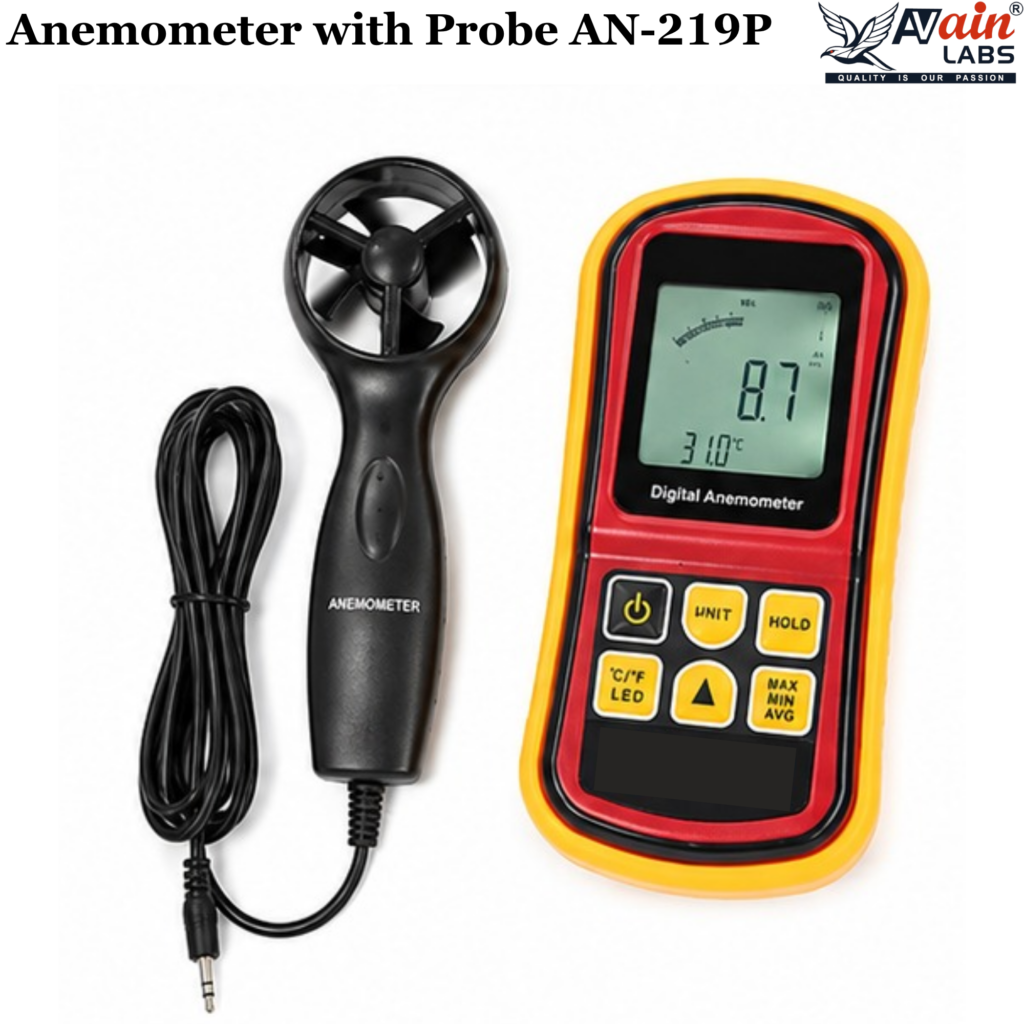

The AVAIN LABS® Anemometer with Probe AN-219P is a compact and versatile digital air velocity measuring instrument designed for accurate measurement of air speed in multiple units. It is suitable for HVAC testing, ventilation systems, laboratory applications, environmental monitoring, industrial inspection, and air-flow analysis.
The AN-219P features Max-Average-Current air velocity measurement, allowing users to monitor current airflow as well as maximum and average readings. The instrument includes a data hold function, Beaufort scale, backlit display, and manual/automatic power shut-off, making it convenient for both field and laboratory use.
With selectable measurement units including m/s, ft/min, knots, km/h, and mph, the AVAIN LABS® AN-219P provides flexibility for different air velocity measurement requirements.
| Parameter | Specification |
|---|---|
| Model | AN-219P |
| Measurement | Air Velocity |
| Unit | m/s |
| Range | 0 ~ 45 m/s |
| Minimum Resolution | 0.01 m/s |
| Threshold | 0.3 m/s |
| Accuracy | ±3% ±0.1 digits |
| Unit | ft/min |
| Range | 0 ~ 8800 ft/min |
| Minimum Resolution | 1.9 ft/min |
| Threshold | 60 ft/min |
| Accuracy | ±3% ±10 digits |
| Unit | Knots |
| Range | 0 ~ 88 knots |
| Minimum Resolution | 0.02 knots |
| Threshold | 0.6 knots |
| Accuracy | ±3% ±0.1 digits |
| Unit | km/h |
| Range | 0 ~ 140 km/h |
| Minimum Resolution | 0.03 km/h |
| Threshold | 1 km/h |
| Accuracy | ±3% ±0.1 digits |
| Unit | mph |
| Range | 0 ~ 100 mph |
| Minimum Resolution | 0.02 mph |
| Threshold | 0.7 mph |
| Accuracy | ±3% ±0.1 digits |
| Operating Temperature | -10°C ~ +50°C (14°F ~ 122°F) |
| Operating Humidity | 40% RH ~ 85% RH |
| Power Supply | 9 V Battery |
| Power Source | 1 × 9 V (6F22) |
| Dimensions | 145 × 72 × 35 mm |
The AVAIN LABS® AN-219P Anemometer provides air velocity measurement across a broad range, with selectable units for different measurement standards. Its multiple display modes make it useful for checking airflow in ducts, ventilation systems, air-conditioning systems, industrial environments, and laboratory setups.
The AN-219P is suitable for:
