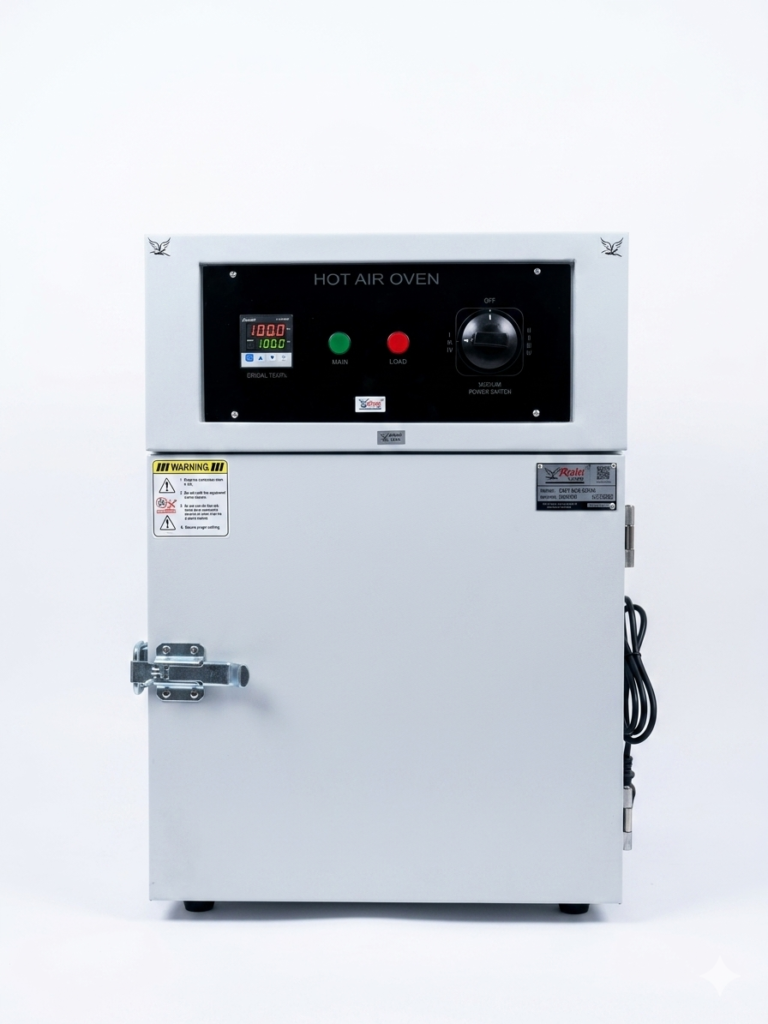

AVAIN LABS® Hot Air Oven ( Memmert Type)

AVAIN LABS® Hot Air Oven ( Memmert Type)

The AVAIN LABS® Hot Air Oven (Memmert Type) is a precision-engineered laboratory oven designed for drying, sterilization, and heating applications in pharmaceutical, research, and industrial laboratories. Built with a double-walled construction, it features an inner chamber made of Aluminium or Stainless Steel 202, while the outer body is crafted from epoxy powder-coated mild steel or stainless steel (GMP model) for durability and corrosion resistance.

The oven is insulated with 75 mm high-grade glass wool, ensuring efficient heat retention and energy savings. Heating elements positioned on three sides (bottom, left, and right ribs) provide uniform heat distribution, supported by air ventilation on both sides. It comes with perforated adjustable shelves for convenient sample placement.

Equipped with thermostatic or digital temperature control options, the oven operates within a temperature range of ambient to 250°C with high accuracy of ±1°C, delivering consistent and reliable performance. The unit runs on 220–230V AC, 50Hz supply, making it suitable for standard laboratory use.

Note: Available with SS 304 chamber, 20-gauge outer body, high-grade powder coating, and superior quality components for enhanced durability and GMP applications.

Cat. No. Chamber Size (Inch) Chamber Size (mm) No. of shelve Chamber Material Cap. (LTR)
AL-500A1 12x12x12 300x300x300 2 Aluminum chamber 28
AL-500A2 12x12x12 300x300x300 2 SS 202 chamber 28
AL-500A3 12x12x12 300x300x300 2 SS 304 chamber 28
AL-500B1 14x14x14 350x350x350 2 Aluminum chamber 45
AL-500B2 14x14x14 350x350x350 2 SS 202 chamber 45
AL-500B3 14x14x14 350x350x350 2 SS 304 chamber 45
AL-500C1 16x16x16 400x400x400 2 Aluminum chamber 65
AL-500C2 16x16x16 400x400x400 2 SS 202 chamber 65
AL-500C3 16x16x16 400x400x400 2 SS 304 chamber 65
AL-500D1 18x18x18 450x450x450 2 Aluminum chamber 95
AL-500D2 18x18x18 450x450x450 2 SS 202 chamber 95
AL-500D3 18x18x18 450x450x450 2 SS 304 chamber 95
AL-500E1 24x18x18 600x450x450 2 Aluminum chamber 125
AL-500E2 24x18x18 600x450x450 2 SS 202 chamber 125
AL-500E3 24x18x18 600x450x450 2 SS 304 chamber 125
AL-500F1 24x24x24 600x600x600 2 Aluminum chamber 224
AL-500F2 24x24x24 600x600x600 2 SS 202 chamber 224
AL-500F3 24x24x24 600x600x600 2 SS 304 chamber 224
AL-500G1 36x24x18 900x600x450 2 Aluminum chamber 252
AL-500G2 36x24x18 900x600x450 2 SS 202 chamber 252
AL-500G3 36x24x18 900x600x450 2 SS 304 chamber 252
AL-500H1 36x24x24 900x600x600 2 Aluminum chamber 336
AL-500H2 36x24x24 900x600x600 2 SS 202 chamber 336
AL-500H3 36x24x24 900x600x600 2 SS 304 chamber 366
AL-500I1 36x36x36 900x900x900 3 Aluminum chamber 720
AL-500I2 36x36x36 900x900x900 3 SS 202 chamber 720
AL-500I3 36x36x36 900x900x900 3 SS 304 chamber 720
Optional (HAO1) 1.Air circulating fan
Optional (HAO2) Microprocessor PID Digital Temp. Controller
Optional (HAO3) PLC controller with 21 CFR Software and data recorder
NOTE: Please ask for other capacities of your requirement. GMP Model inner and outer se complete also available.
You are requested to select the appropriate range prior to placing your order.

Specifications

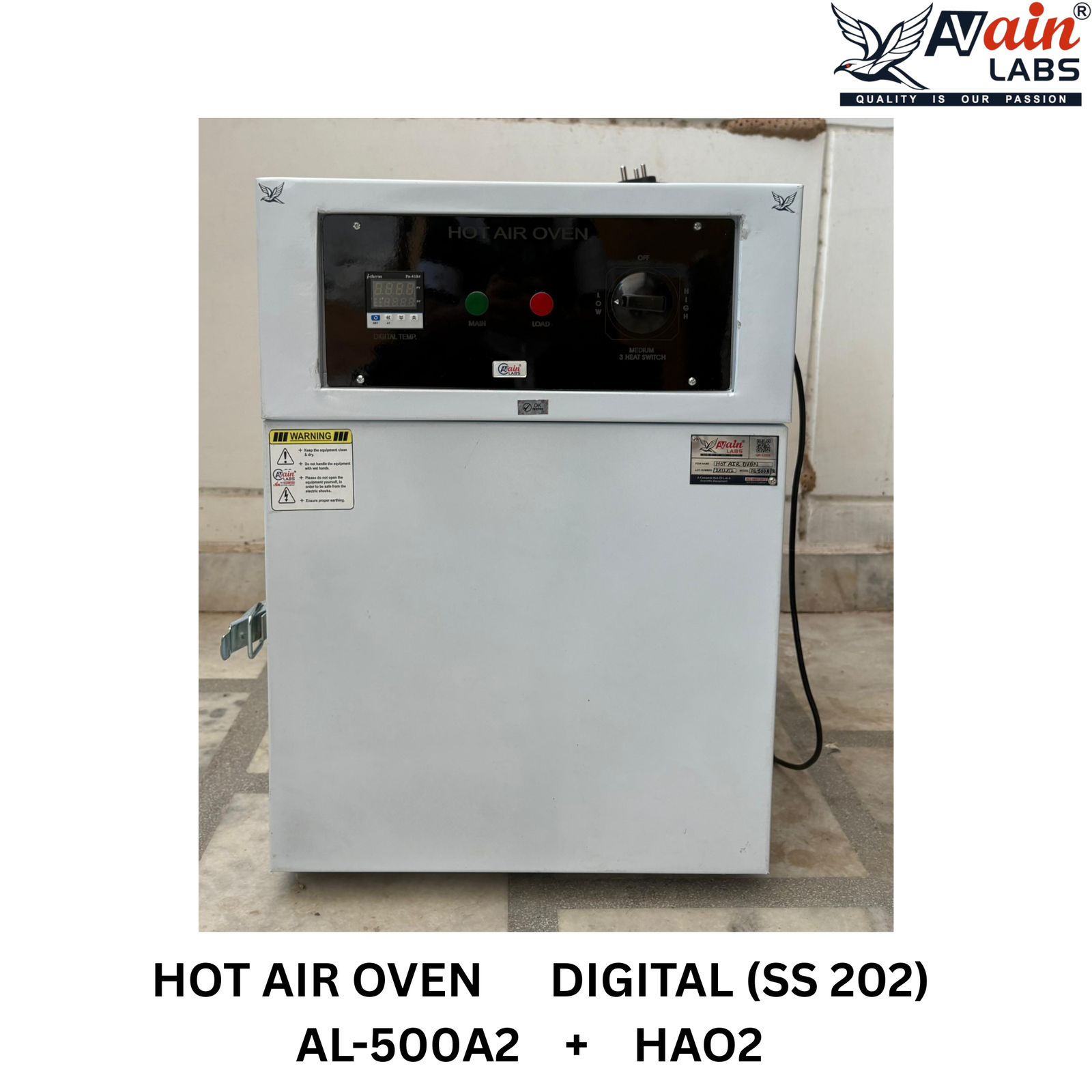

ModelAL-500A2 + HAO1 + HOA2
Size12X12X12 INCH
Capacity28 LTR
Outer MaterialMILD STEEL WITH POWDER COATED
Inner MaterialStainless Steel 202
