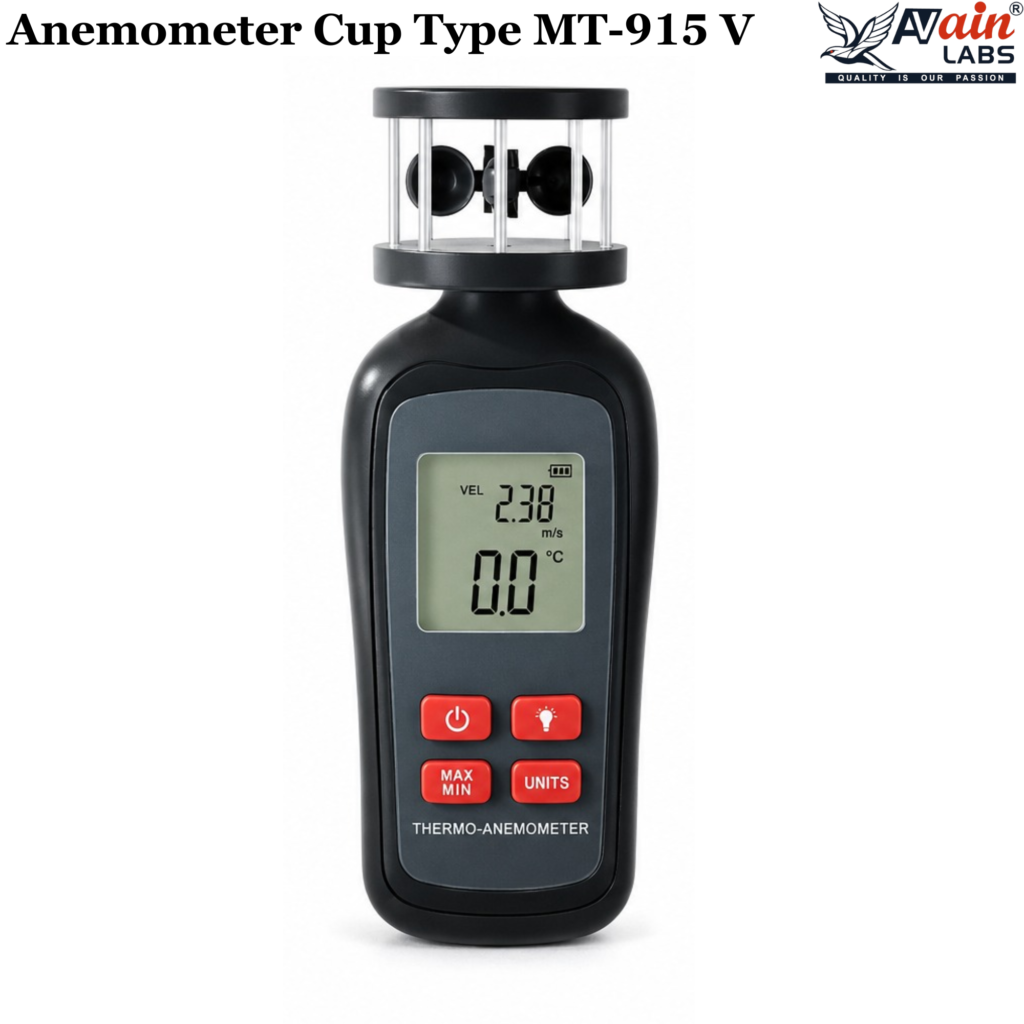

AVAIN LABS® Anemometer Cup Type MT-915 V

The AVAIN LABS® Anemometer Cup Type MT-915 V is a versatile digital air velocity and temperature measuring instrument designed for accurate and fast measurement of airflow in laboratory, HVAC, industrial, environmental, and field applications. Its cup-type anemometer design provides reliable air velocity measurement across a wide range, while the integrated temperature measurement function offers additional environmental monitoring capability.

The MT-915 V supports multiple selectable measurement units, including m/s, ft/min, MPH, km/h, and knots, making it suitable for users working with different measurement standards. The instrument features a clear LCD display with backlight, Max-Min-Average readings, over-range indication, battery status indication, and automatic shut-off for convenient operation.

With an air velocity measuring range of 0.7 to 30 m/s, the AVAIN LABS® MT-915 V is suitable for a wide variety of airflow measurement requirements. It also provides temperature measurement with a resolution of 0.1°C and temperature accuracy of ±1.5°C / ±2.7°F.

Key Features

• Cup-type digital anemometer
• Measures air velocity and temperature
• Wide air velocity measuring range
• Max-Min-Average readings
• Temperature reading function
• Over-range indication
• Battery status indication
• IP54 water-resistant design
• Automatic shut-off after 15 minutes of inactivity
• Selectable measurement units:
  • m/s
  • ft/min
  • MPH
  • km/h
  • knots
• High accuracy and fast response
• Clear LCD display with backlight
• Compact and portable design
• Suitable for laboratory, HVAC, industrial, and field applications

Technical Specifications

Parameter	Specification
Model	MT-915 V
Product Type	Anemometer – Cup Type
Measuring Range	0.7 to 30 m/s
Measuring Range	2.5 to 105 km/h
Measuring Range	1.5 to 67 mph
Measuring Range	1.3 to 58.3 knots
Air Temperature Range	-20 to 70°C / -4 to 158°F
Air Velocity Resolution	< 20.0 m/s: 0.1 m/s; > 20: 1 m/s
Temperature Resolution	0.1°C
Air Velocity Accuracy	±4% + 2 digits
Temperature Accuracy	±1.5°C / ±2.7°F
Operating Conditions	-20 to 60°C, 10% to 75% RH
Power Source	3 × 1.5 V (AAA)
Dimensions	179 × 56 × 31 mm

Advanced Functions

The AVAIN LABS® MT-915 V Anemometer incorporates several useful functions for professional air-flow measurement:

• Temperature Reading: Simultaneously provides temperature measurement for environmental monitoring.
• Max-Min-Avg Readings: Records maximum, minimum, and average air velocity values.
• Over-Range Indication: Alerts the user when the measured value exceeds the specified range.
• Battery Status Indication: Provides information about remaining battery power.
• IP54 Water-Resistant: Designed for enhanced protection against dust and water splashes.
• Auto Power-Off: Automatically shuts off after 15 minutes of inactivity to help conserve battery life.
• Backlit LCD: Provides clear visibility of readings in different lighting conditions.

Applications

The AVAIN LABS® Cup Type Anemometer MT-915 V is suitable for a wide range of applications, including:

• HVAC and air-conditioning testing
• Ventilation system testing
• Airflow and air velocity measurement
• Industrial environmental monitoring
• Laboratory air-flow analysis
• Building ventilation inspection
• Environmental and field measurements
• Air duct and exhaust system testing
• Maintenance and service applications
• Educational and technical laboratories

Compact & Portable Air Velocity Meter

With dimensions of 179 × 56 × 31 mm and powered by 3 × 1.5 V AAA batteries, the MT-915 V is convenient for portable air velocity measurements. Its combination of wide measuring range, temperature measurement, multiple selectable units, backlit LCD, IP54 water resistance, and Max-Min-Average functionality makes it a practical instrument for professional airflow monitoring.
