AVAIN LABS® Tray Dryer

AVAIN LABS® Digital Tray Dryer

The AVAIN LABS® Digital Tray Dryer is a high-performance industrial drying solution designed for uniform and efficient drying in pharmaceutical, chemical, food, and laboratory applications. It features a double-walled construction, with inner and outer bodies made of mild steel (powder coated) or stainless steel, ensuring durability and corrosion resistance.

The unit is equipped with aluminium or stainless steel trays and insulated with 75 mm high-grade glass wool for excellent heat retention. A microprocessor-based digital temperature controller along with a forced air blower ensures uniform temperature distribution with an accuracy of ±3°C.

Operating in a temperature range from ambient to 250°C, the tray dryer delivers reliable and consistent performance. It runs on 220–440V, 50Hz power supply, making it suitable for various industrial environments.

Note: Available with SS 304 chamber, 20-gauge outer body, high-grade powder coating, and superior quality components.

Cat No		Chamber size (HxWxD) mm	Tray	Tray cap inches	Chamber Material
AL-503A1		430x840x650	8	16x32x1¼	Outer Inner SS GMP
AL-503A2		430x840x650	8	16x32x1¼	Outer MS Inner SS 304
AL-503A3		430x840x650	8	16x32x1¼	Outer MS Inner SS 202
AL-503A4		430x840x650	8	16x32x1¼	Inner Outer MS
AL-503B1		430x840x910	12	16x32x1¼	Outer Inner SS GMP
AL-503B2		430x840x910	12	16x32x1¼	Outer MS Inner SS 304
AL-503B3		430x840x910	12	16x32x1¼	Outer MS Inner SS 202
AL-503B4		430x840x910	12	16x32x1¼	Inner Outer MS
AL-503C1		910x840x910	24	16x32x1¼	Outer Inner SS GMP
AL-503C2		910x840x910	24	16x32x1¼	Outer MS Inner SS 304
AL-503C3		910x840x910	24	16x32x1¼	Outer MS Inner SS 202
AL-503C4		910x840x910	24	16x32x1¼	Inner Outer MS
AL-503D1		960x1270x1450	48	16x32x1¼	Outer Inner SS GMP
AL-503D2		960x1270x1450	48	16x32x1¼	Outer MS Inner SS 304
AL-503D3		960x1270x1450	48	16x32x1¼	Outer MS Inner SS 202
AL-503D4		960x1270x1450	48	16x32x1¼	Inner Outer MS
AL-503E1		960x1700x1700	96	16x32x1¼	Outer Inner SS GMP
AL-503E2		960x1700x1700	96	16x32x1¼	Outer MS Inner SS 304
AL-503E3		960x1700x1700	96	16x32x1¼	Outer MS Inner SS 202
AL-503E4		960x1700x1700	96	16x32x1¼	Inner Outer MS
Optional (TD1)	Extra Tray			16x32x1¼	Aluminum-GI
Optional (TD2)	Extra Tray			16x32x1¼	Stainless Steel
Optional (TD3)	Microprocessor PID Digital Temp Controller

You are requested to select the appropriate range prior to placing your order.

Key Features:

Double-walled construction (mild steel painted or stainless steel)
75 mm glass wool insulation for thermal efficiency
Aluminum/Stainless Steel trays for versatile use
Microprocessor digital temperature controller
Built-in blower for uniform heat circulation
Temperature range: Ambient to 250°C
Accuracy: ±3°C
Durable, corrosion-resistant construction
Operates on 220/440V, 50Hz

Common Applications:

Drying of chemicals, powders, and granules
Pharmaceutical and food processing industries
Laboratory and research drying applications
Industrial material processing
Quality control and testing labs

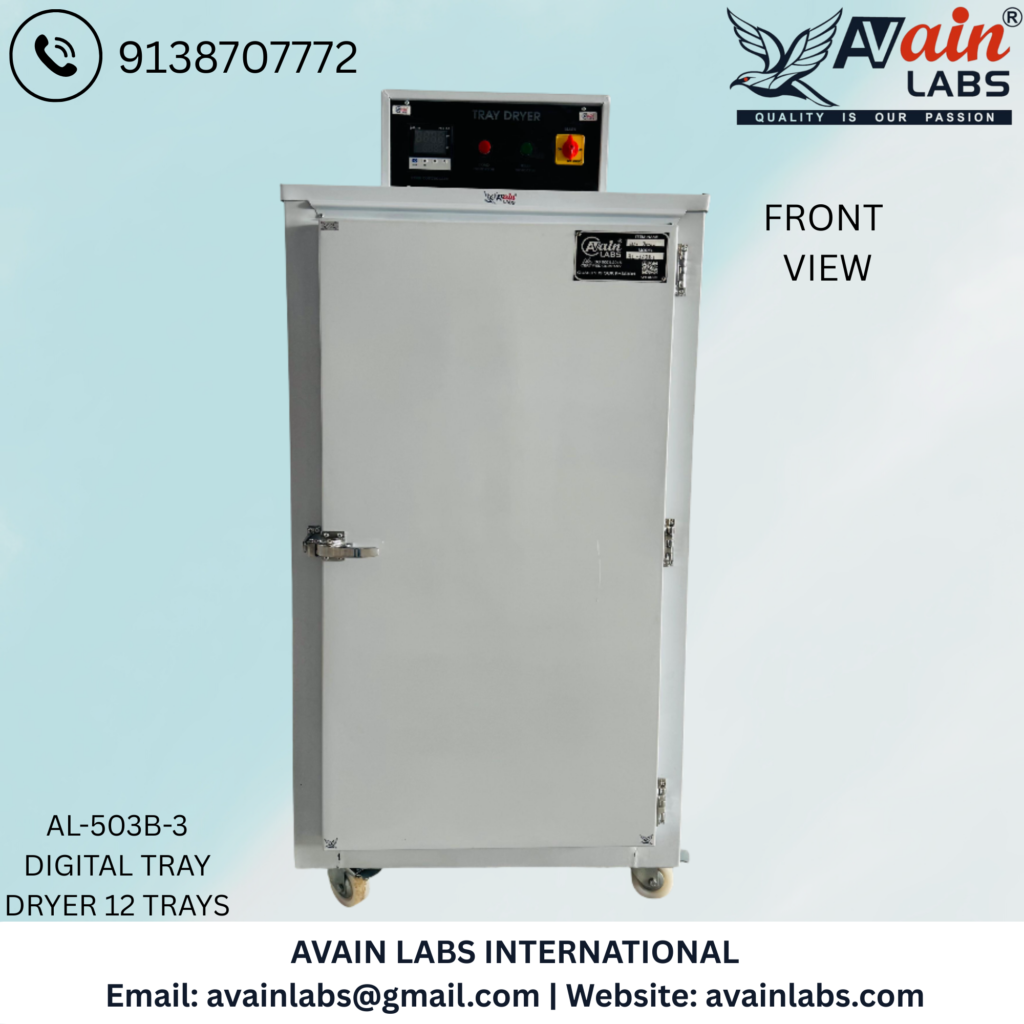

Model	AL-503B-3
Size	430x840x910
Outer Material	MILD STEEL WITH POWDER COATED
Inner Material	SS202
