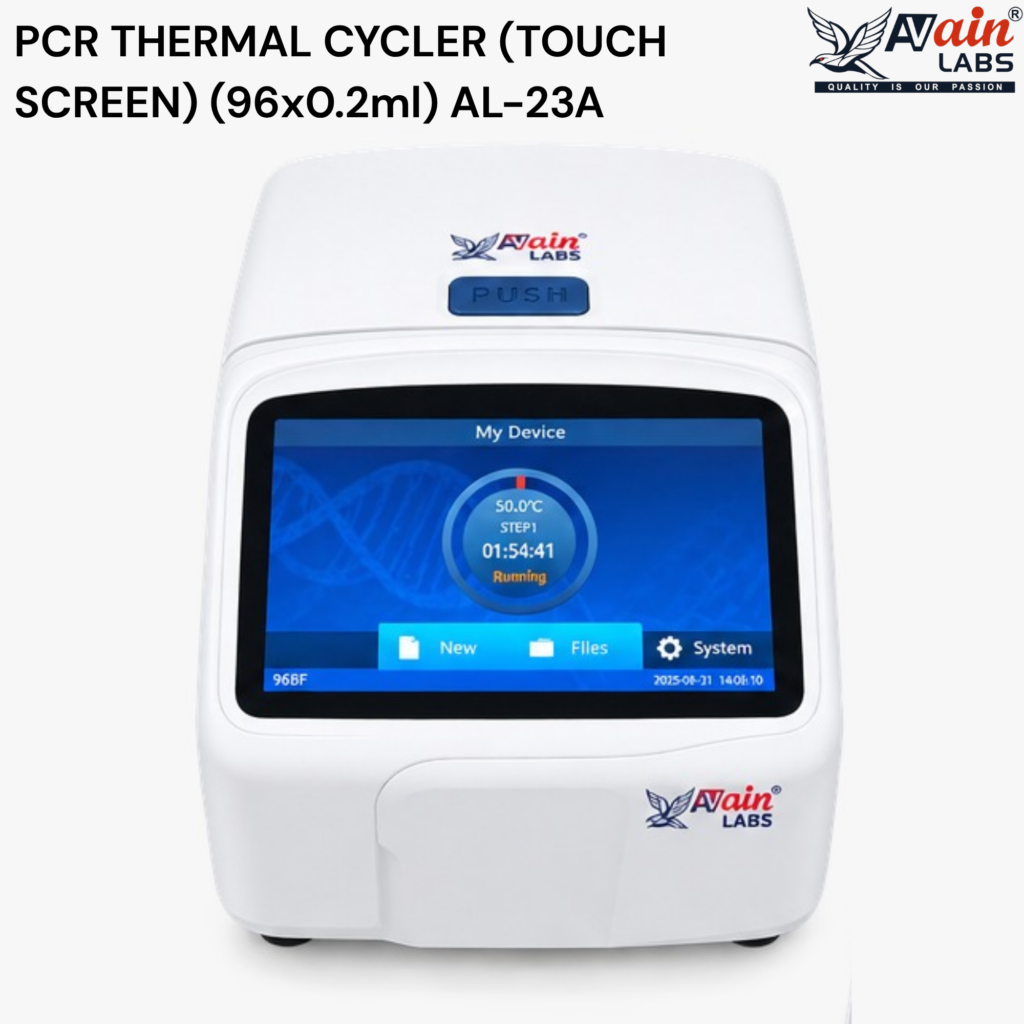

The AVAIN LABS® PCR Thermal Cycler AL-23A is an advanced, high-performance Gradient PCR Thermal Cycler designed for reliable, accurate, and efficient DNA amplification in molecular biology, biotechnology, research, clinical, and educational laboratories.
Featuring a 96 × 0.2 ml block capacity, a large 5-inch colour touch screen, integrated Android operating system, and advanced gradient temperature control, the AL-23A provides convenient operation and flexible PCR protocol programming.
The instrument is equipped with an adjustable-pressure heated lid, designed to help minimize sample evaporation, volatilization, and condensation during PCR operation. Its durable Peltier heating system provides reliable thermal cycling performance and supports extensive long-term laboratory use.
The AVAIN LABS® AL-23A features a gradient temperature function, allowing users to optimize annealing temperatures across different samples during a single PCR run.
The gradient temperature setting range of 30°C to 99°C makes the instrument suitable for PCR protocol optimization, primer testing, and molecular biology research applications.
The thermal cycler provides a wide temperature range of 4°C to 105°C, supporting multiple PCR protocols and molecular biology applications.
With a temperature display accuracy of ±0.1°C, the AL-23A allows precise monitoring and programming of temperature conditions throughout the PCR process.
The system supports temperature increments from 0.1°C to 10.0°C, providing flexibility for customized thermal cycling programs.
The PCR Thermal Cycler is designed with efficient thermal control technology for reliable temperature transitions.
These features allow users to create and run customized PCR protocols efficiently.
The 5-inch colour touch screen provides a convenient and user-friendly interface for setting and monitoring PCR programs.
The Android-based operating system allows easy navigation and program management. With built-in Wi-Fi, large storage capacity, and USB device support, the AL-23A offers convenient options for managing laboratory workflows and PCR programs.
The unique left-right design, separating the amplification area from the operating area, is designed to provide improved accessibility and convenient operation.
| Specification | Details |
|---|---|
| Model | AL-23A |
| Product Name | PCR Thermal Cycler (Touch Screen) |
| PCR Type | Gradient Thermal Cycler |
| Block Capacity | 96 × 0.2 ml |
| Temperature Range | 4°C to 105°C |
| Gradient Temperature Range | 30°C to 99°C |
| Temperature Display Accuracy | ±0.1°C |
| Maximum Heating Rate | Up to 2.5°C/s |
| Maximum Cooling Rate | Up to 2.5°C/s |
| Time Increment | 1 second to 600 seconds |
| Temperature Increment | 0.1°C to 10.0°C |
| Maximum Cycle Number | 100 |
| Display | 5-inch Colour Touch Screen |
| Operating System | Android |
| Connectivity | Built-in Wi-Fi and USB Support |
| Heating Lid | Adjustable Pressure Heated Lid |
| Thermal Technology | Long-Life Peltier System |
| Operational Durability | Up to 20,000 non-breakdown operations |
The AVAIN LABS® PCR Thermal Cycler AL-23A is suitable for a wide range of PCR and molecular biology applications, including:
The AVAIN LABS® PCR Thermal Cycler (Touch Screen) AL-23A combines gradient temperature capability, precise temperature monitoring, touch-screen operation, Wi-Fi connectivity, USB support, and a 96-well PCR tube capacity in a compact and advanced laboratory instrument.
Designed for laboratories requiring reliable and flexible PCR temperature control, the AL-23A is an ideal solution for molecular biology research, DNA amplification, biotechnology applications, and routine laboratory PCR workflows.
