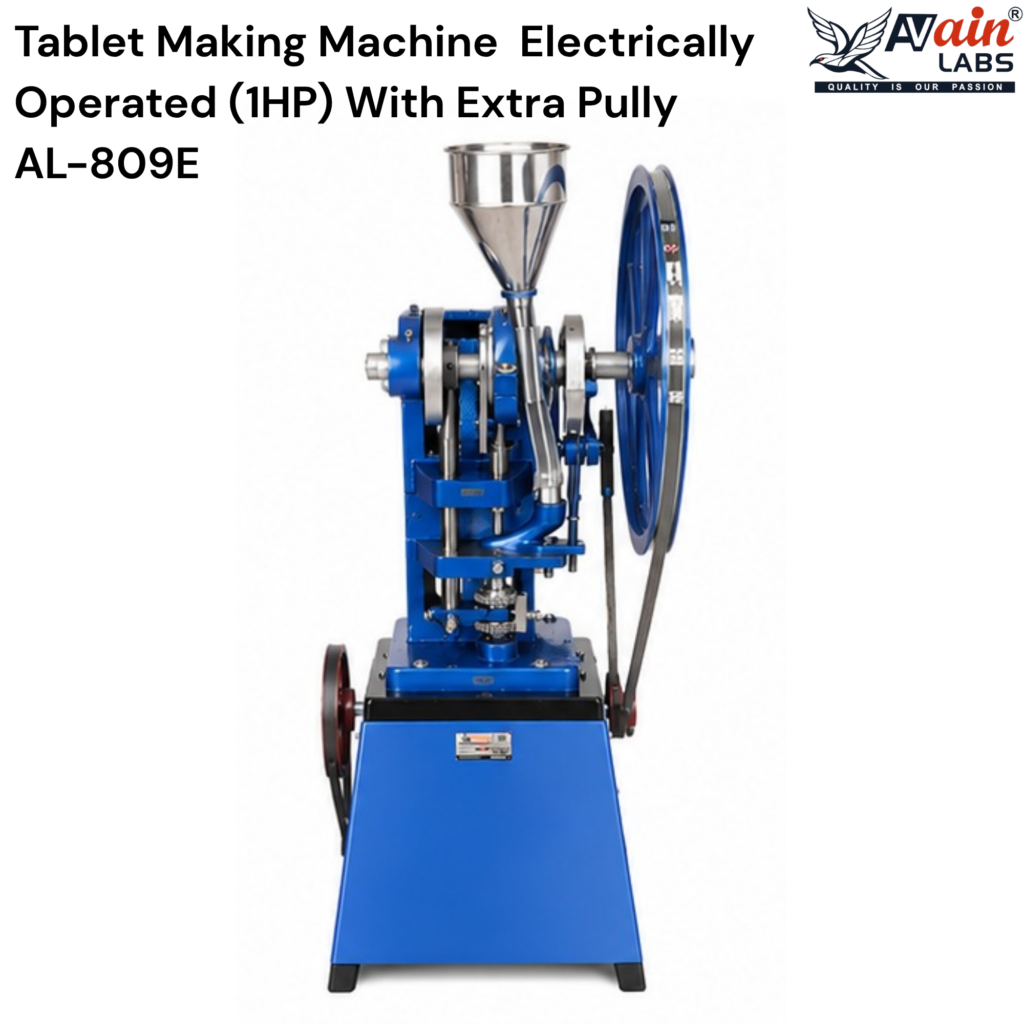

The AVAIN LABS® Tablet Making Machine AL-809E is an electrically operated single punch tablet pressing machine designed for efficient and reliable tablet manufacturing in laboratories, research facilities, pharmaceutical training institutions, and industrial applications.
Powered by a 1 HP electric motor, this robust tablet punching machine is designed for the production of tablets up to 1000 mg, depending on the selected die and punch size. The machine is available with 6 mm, 9 mm, or 12 mm die and punch sets (any one size) to suit different tablet production requirements.
The AL-809E features an automatic compression and ejection mechanism that operates with each revolution of the wheel drive, helping provide smooth and efficient tablet production. Its heavy-duty cast iron body and eccentric pressure system provide strength, stability, and reliable operation.
The AVAIN LABS® AL-809E Tablet Punching Machine is built on a heavy-duty cast iron body designed to provide stability during operation. The eccentric pressure system supports effective compression for tablet manufacturing applications.
The machine is equipped with a stainless steel hopper for handling tablet formulation material. The hopper is connected through a rubber tube to support smooth material flow into the tablet compression area.
The AL-809E is designed with convenient adjustment mechanisms for controlling the thickness and hardness of tablets.
The settings can be adjusted according to the tablet production requirement, while lock nuts help secure the selected operating position during use.
This flexibility makes the machine suitable for different laboratory tablet formulation and tablet manufacturing applications.
The machine is supplied with a durable chromium steel die and punch set.
Customers can select one of the following punch and die sizes according to their requirements:
The selected die and punch size can be used for the production of tablets according to the required tablet dimensions and formulation.
| Specification | Details |
|---|---|
| Brand | AVAIN LABS® |
| Model | AL-809E |
| Product Type | Tablet Making / Punching Machine |
| Operation | Electrically Operated |
| Motor Power | 1 HP |
| Punch Type | Single Punch |
| Tablet Capacity | Up to 1000 mg, depending on die and punch size |
| Available Die & Punch Sizes | 6 mm, 9 mm, or 12 mm (Any One) |
| Compression System | Eccentric Pressure System |
| Tablet Compression | Automatic |
| Tablet Ejection | Automatic |
| Body Construction | Heavy-Duty Cast Iron |
| Hopper Material | Stainless Steel |
| Die & Punch Material | Chromium Steel |
| Tablet Thickness Adjustment | Yes |
| Tablet Hardness Adjustment | Yes |
| Lock Nuts | Provided |
| Additional Accessory | Extra Pulley |
The AVAIN LABS® Tablet Making Machine AL-809E is suitable for applications including:
The AVAIN LABS® Tablet Making Machine (Punching Machine) AL-809E combines electrically operated performance, a powerful 1 HP motor, automatic compression and ejection, adjustable tablet thickness and hardness, and durable cast iron construction.
With its single punch design, chromium steel die and punch set, stainless steel hopper, and extra pulley, the AL-809E is a practical solution for laboratory-scale tablet manufacturing, formulation development, research, and pharmaceutical training applications.
