Avain Labs Rectangular Double Walled Water Bath is a high-performance laboratory heating solution designed for precise temperature control and uniform heating. Built with a double-walled stainless steel inner chamber (SS 202/304) and a durable powder-coated mild steel outer body, it ensures long-lasting performance and reliability.
The gap between the inner and outer walls is insulated with high-quality glass wool, minimizing heat loss and improving energy efficiency. Equipped with an immersion-type heating element, this water bath provides consistent and uniform heating across the chamber.
Temperature is controlled by a hydraulic capillary thermostat, allowing smooth operation from ambient temperature up to 100°C (99.8°C) with an accuracy of ±1°C, making it ideal for laboratory, industrial, and research applications.
| Cat No | Size | Holes SS 75mm Dia | Cap Ltr | Inner Material |
| AL-510A1 | 300x250x100 mm | 6 holes | 8 Liter | Regular Model inner ss 202 |

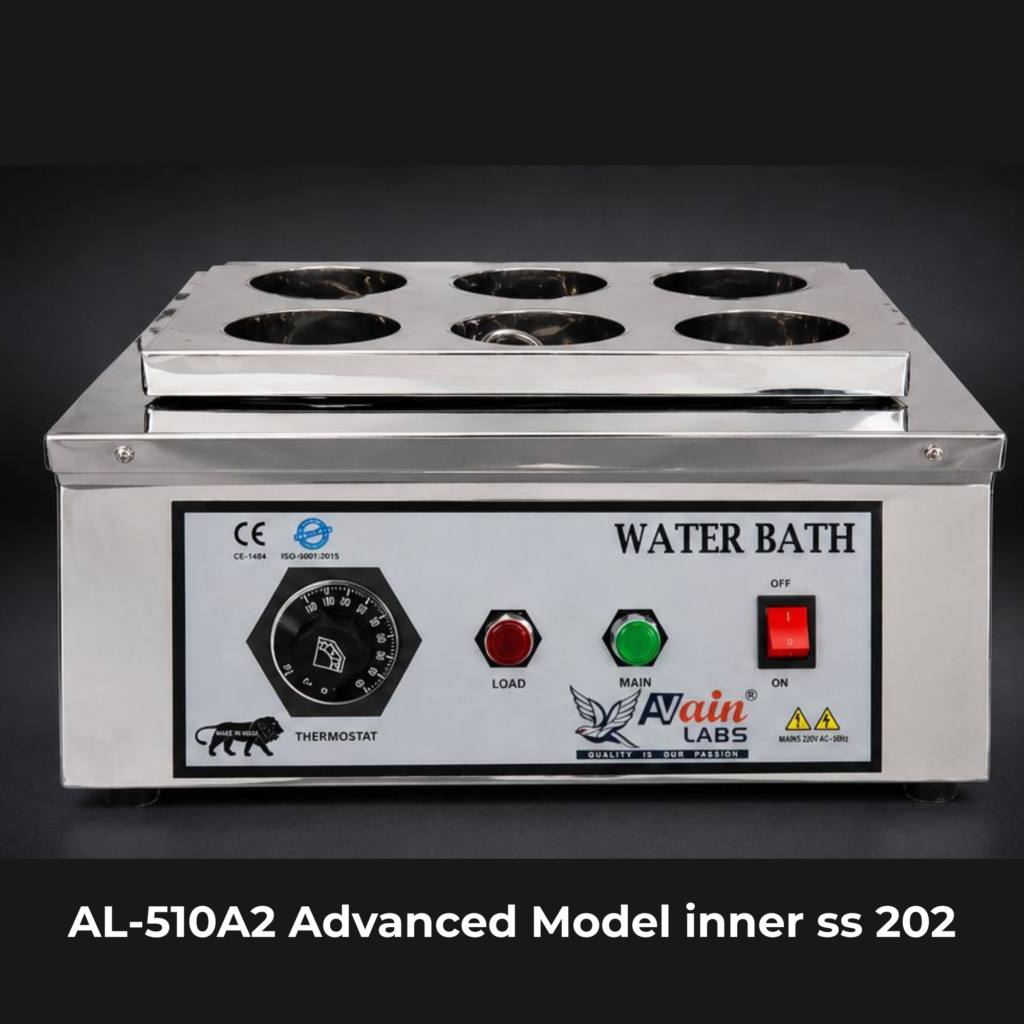

| AL-510A2 | 300x250x100mm | 6 holes | 8 Liter | Advanced Model inner ss 202 |
| AL-510A3 | 300x250x100mm | 6 holes | 8 Liter | Advanced Model inner SS 304 |
| AL-510B1 | 355x405x100 Mm | 12 Holes | 15 Liter | Regular Model inner ss 202 |
| AL-510B2 | 355x405x100 Mm | 12 Holes | 15 Liter | Advanced Model inner ss 202 |
| AL-510B3 | 355x405x100 Mm | 12 Holes | 15 Liter | Advanced Model inner SS 304 |
| Optional (WBR1) | Microprocessor PID digital temp Indicator-cum-controller | |||
| Optional (WBR2) | Stirrer with 1-20 HP high speed motor with stainless stirring rod & blade | |||
| Model | AL-510A2 |
| Size | 300x250x100mm |
| Capacity | 8 LTR |
| Outer Material | Powder-coated mild steel for durability and protection. |
| Inner Material | Inner chamber made of stainless steel |
| Size | 300x250x100mm |
| Holes | 6 Holes |
| Capacity | 8 Litres |
| Weight | 5.5 kg |
| Accuracy | ±1°C. |
| Temperature Resolution | 0.1°C |
| Supply | 220/230 volt AC |
| Optional | For Inner Chamber SS 304 (Price Will Increase BY) 24 % |
| Optional | Microprocessor PID digital temp. Indicator-cum-controller |
| Optional | Stirrer with 1/20 H.P. high speed motor with stainless stirring rod & blade |
