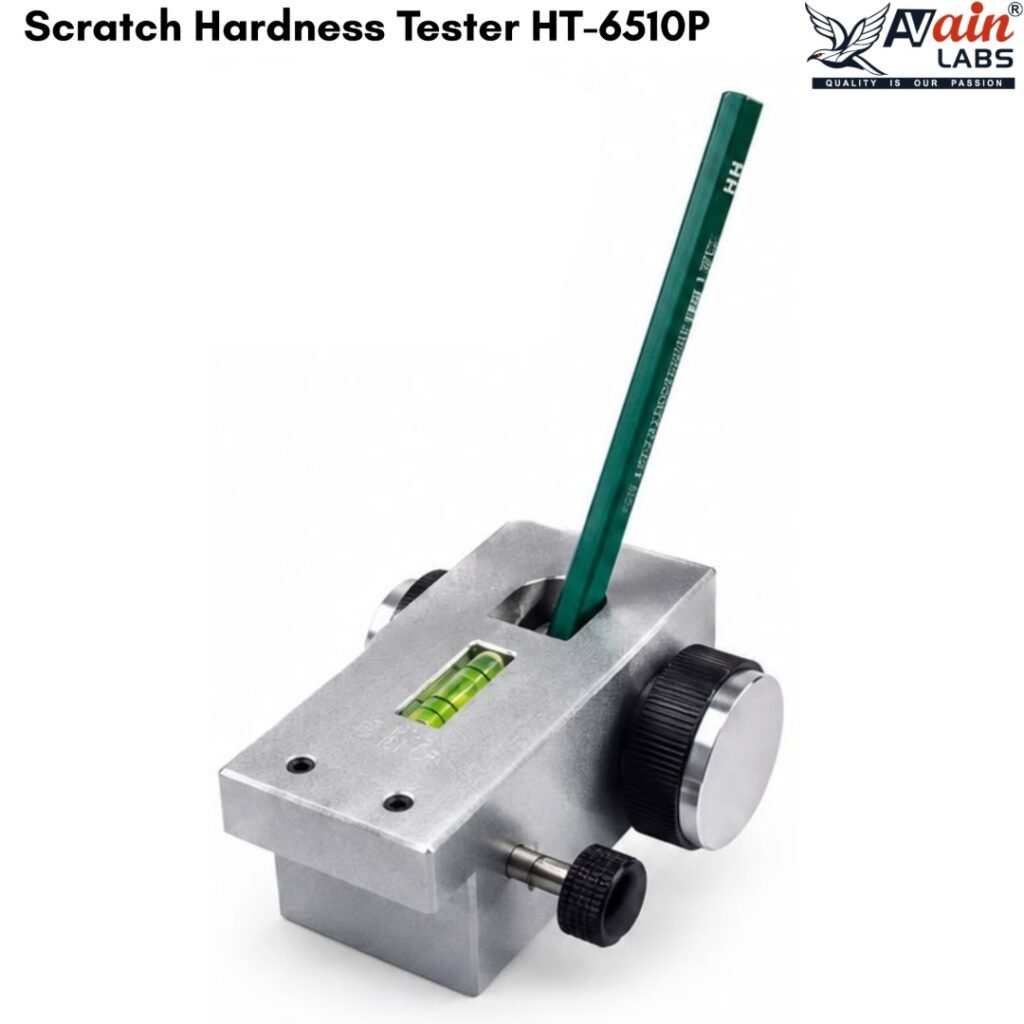

The AVAIN LABS® Scratch Hardness Tester HT-6510P is a practical laboratory instrument designed for evaluating the scratch resistance and surface hardness of materials and coatings. It uses controlled loads and a standardized scratching method to help assess the resistance of a test surface to scratching.
The HT-6510P Scratch Hardness Tester is suitable for paint and coating laboratories, material testing laboratories, educational institutions, quality control departments, and research applications. Its standard configuration includes different weights and scratching accessories for conducting comparative surface hardness tests.
| Specification | Details |
|---|---|
| Model | HT-6510P |
| Load Weight | 1000 g, 750 g, 500 g |
| Measurement Angle | 45° |
| Scratch Speed | Approximately 1 mm/s |
| Standard Configuration | Pencil Hardness Tester |
| Weights Included | 1000 g Weight, 750 g Weight |
| Pencils | 13 Pencils (6B–6H) |
| Additional Accessories | Eraser, Knife, Horizontal Pad Block, Sandpaper |
The AVAIN LABS® HT-6510P is supplied with the following standard accessories:
The AVAIN LABS® Scratch Hardness Tester can be used for:
The included 13 pencils ranging from 6B to 6H provide different pencil hardness grades for evaluating the resistance of a surface to scratching. The controlled 45° measurement angle and approximately 1 mm/s scratch speed provide a consistent setup for comparative testing.
The AVAIN LABS® SCRATCH HARDNESS TESTER HT-6510P is ideal for paint and coating laboratories, material testing laboratories, research institutions, quality control departments, engineering laboratories, educational institutions, and industrial testing applications.
With its selectable 500 g, 750 g, and 1000 g loads, standardized 45° testing angle, controlled scratch speed, and comprehensive accessory set, the HT-6510P provides a practical solution for surface scratch hardness and coating evaluation.
