AVAIN LABS® C SHAPE CO-AXIAL MONOCULAR MICROSCOPE

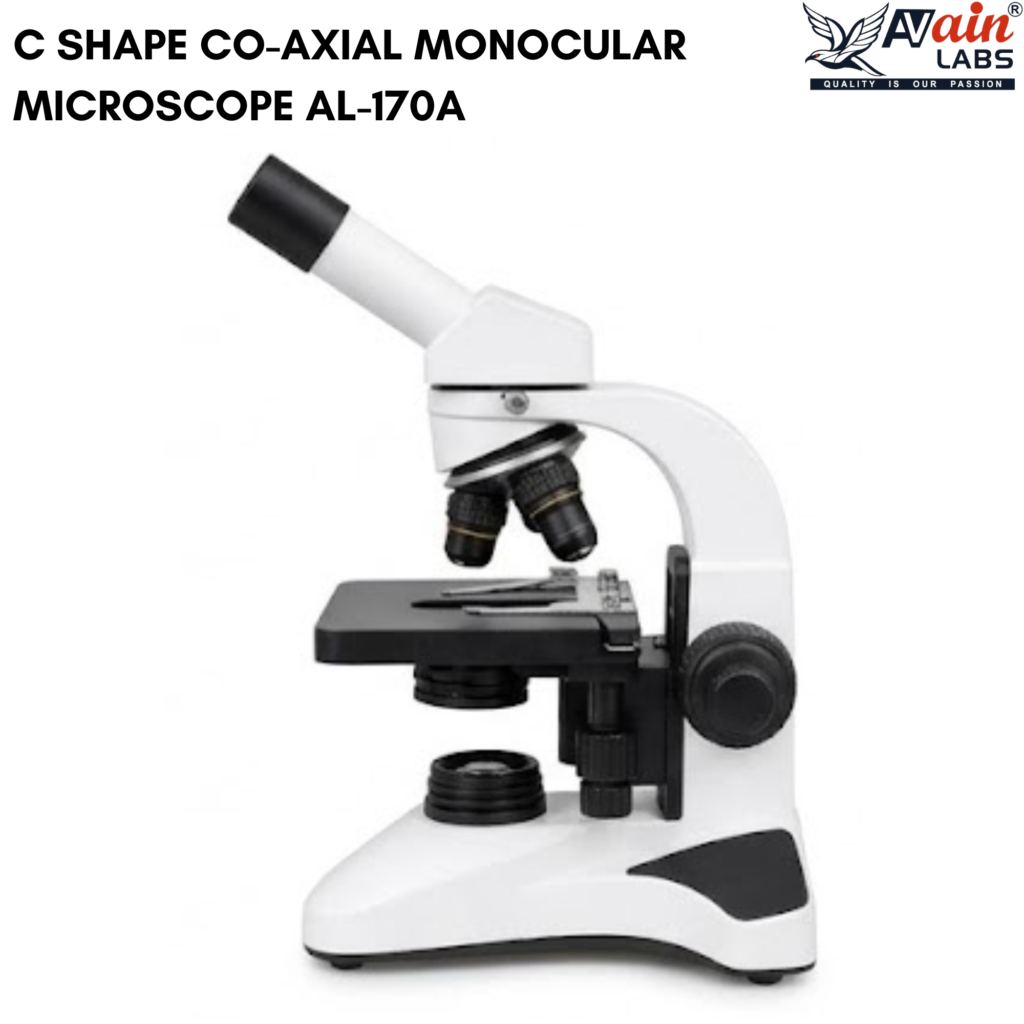

AVAIN LABS® C SHAPE CO-AXIAL MONOCULAR MICROSCOPE AL-170A
AL-170A C SHAPE CO-AXIAL MONOCULAR MICROSCOPE: Detachable Illumination, 6V 20W LED. Focusing System: Ergonomic low position co-axial coarse and fine focusing system on ball bearing guideways. Mechanical Stage double plate with spring clip double slide holder, condenser: Movable condenser, with aspheric lens. Focusing System: Ergonomic low position co-axial coarse and fine focusing system on ball bearing guideways Stand L shaped stand with modular base, nosepiece: Quintuple, Revolving nosepiece, with rubber grip •Eyepiece :Stain Free pair of 10x Non-Achromatic   anti fungus coated Wide Field FN 18mm for Extra   Large Field of View •Objectives: Set of Semi Plan Non-Achromatic   Objectives 4x, 10x 40% 100x (immersion oil)-   Din Standard Long Barrel •30 Degree Binocular Observation Head •Advanced  Co-axial  Coarse  &  Fine  Focusing   System •Double layer Mechanical Stage co-axial Ball   Bearing
AL-170AB Same  as  above  (AL-170A)  Only  difference  is  of objective:- Coated Lens(Anti Fungus Treated) Set of Semi Plan Non-Achromatic Objectives 4x, 10x 40% 100x (immersion oil)-Din Standard Long Barrel
AL-170B C SHAPE CO-AXIAL MONOCULAR MICROSCOPE: Detachable Illumination, 6V 20W LED. Focusing System: Ergonomic low position co-axial coarse and fine focusing system on ball bearing guideways. Mechanical Stage double plate with spring clip double slide holder, condenser: Movable condenser, with aspheric lens. Focusing System: Ergonomic low position co-axial coarse and fine focusing system on ball bearing guideways Stand L shaped stand with modular base, nosepiece: Quintuple, Revolving nosepiece, with rubber grip •Eyepiece: Stain Free pair of 10x Achromatic anti   fungus coated Wide Field FN 18mm for Extra   Large Field of View •Objectives:  Set  of  Semi  Plan  Achromatic Objectives 4x, 10x 40% 100x (immersion oil)- Din Standard Long Barrel to produce a sharp and bright image. Total Magnification 40s min. to 1000s max •45 Degree Binocular Observation Head •Advanced  Co-axial  Coarse  &  Fine  Focusing   System Double layer Mechanical Stage co-axial Ball Bearing
AL-170BA Same  as  above  (AL-170B)  Only  difference  is  of objective:- Coated Lens(Anti Fungus Treated) Set of Semi Plan Non-Achromatic Objectives 4x, 10x 40% 100x (immersion oil)-Din Standard Long Barrel

Specifications
