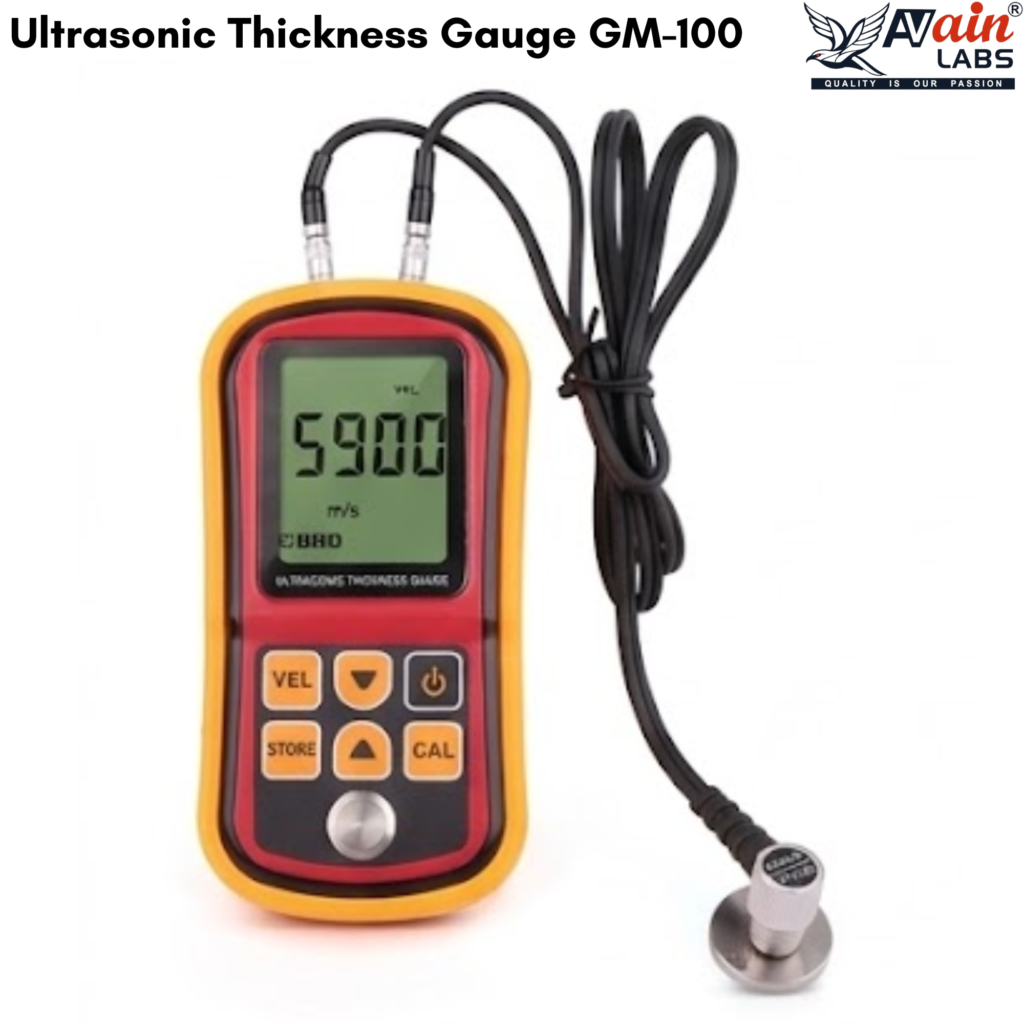

The AVAIN LABS® Ultrasonic Thickness Gauge GM-100 is a compact and convenient ultrasonic thickness measuring instrument designed for non-destructive measurement of material thickness. It is particularly suitable for measuring the thickness of steel components, tubes, pipes, tanks, and other suitable solid materials without cutting or damaging the test object.
With a measuring range of 1.2 to 225.0 mm for steel, 0.1 mm resolution, and a clear four-digit LCD display, the GM-100 provides a practical solution for thickness inspection and routine measurement applications.
The AVAIN LABS® GM-100 Ultrasonic Thickness Gauge uses ultrasonic measurement technology to determine material thickness without damaging or cutting the test object. This makes it useful for inspection and measurement of suitable steel components and structures.
The GM-100 provides a measuring range of 1.2 to 225.0 mm for steel, with a resolution of 0.1 mm. This makes the instrument suitable for a variety of routine thickness measurement requirements.
The instrument offers a sound velocity range of 1000 to 9999 m/s. When the thickness of the test material is known, the sound velocity can be adjusted to suit the material, providing greater flexibility for thickness measurement applications.
The minimum tube measuring specification is Ø20 × 3 mm (Steel), making the GM-100 suitable for thickness measurement applications involving appropriately sized steel tubes.
| Specification | Details |
|---|---|
| Product Name | Ultrasonic Thickness Gauge |
| Model | GM-100 |
| Brand | AVAIN LABS® |
| Measuring Range | 1.2–225.0 mm (Steel) |
| Resolution | 0.1 mm |
| Accuracy | ±(1%H + 0.1) mm |
| Display | Four-Digit LCD Display |
| Working Frequency | 5 MHz |
| Sound Velocity | 1000–9999 m/s |
| Minimum Tube Measurement | Ø20 × 3 mm (Steel) |
| Sound Velocity Setting | Adjustable with known thickness |
| Operating Temperature | 0–40°C |
| Power Supply | 3 × 1.5 V AAA Batteries |
| Dimensions | 72 × 146 × 29 mm |
The AVAIN LABS® Ultrasonic Thickness Gauge GM-100 can be used for suitable thickness inspection applications including:
With dimensions of just 72 × 146 × 29 mm, the GM-100 is designed for convenient handling and portability. Its battery-powered operation makes it practical for use in different inspection and measurement environments.
The AVAIN LABS® GM-100 Ultrasonic Thickness Gauge combines a 1.2–225.0 mm measuring range, 0.1 mm resolution, 5 MHz working frequency, adjustable sound velocity, and compact four-digit LCD display in a portable instrument.
Choose AVAIN LABS® GM-100 for convenient ultrasonic, non-destructive thickness measurement of suitable steel materials, tubes, and components.
