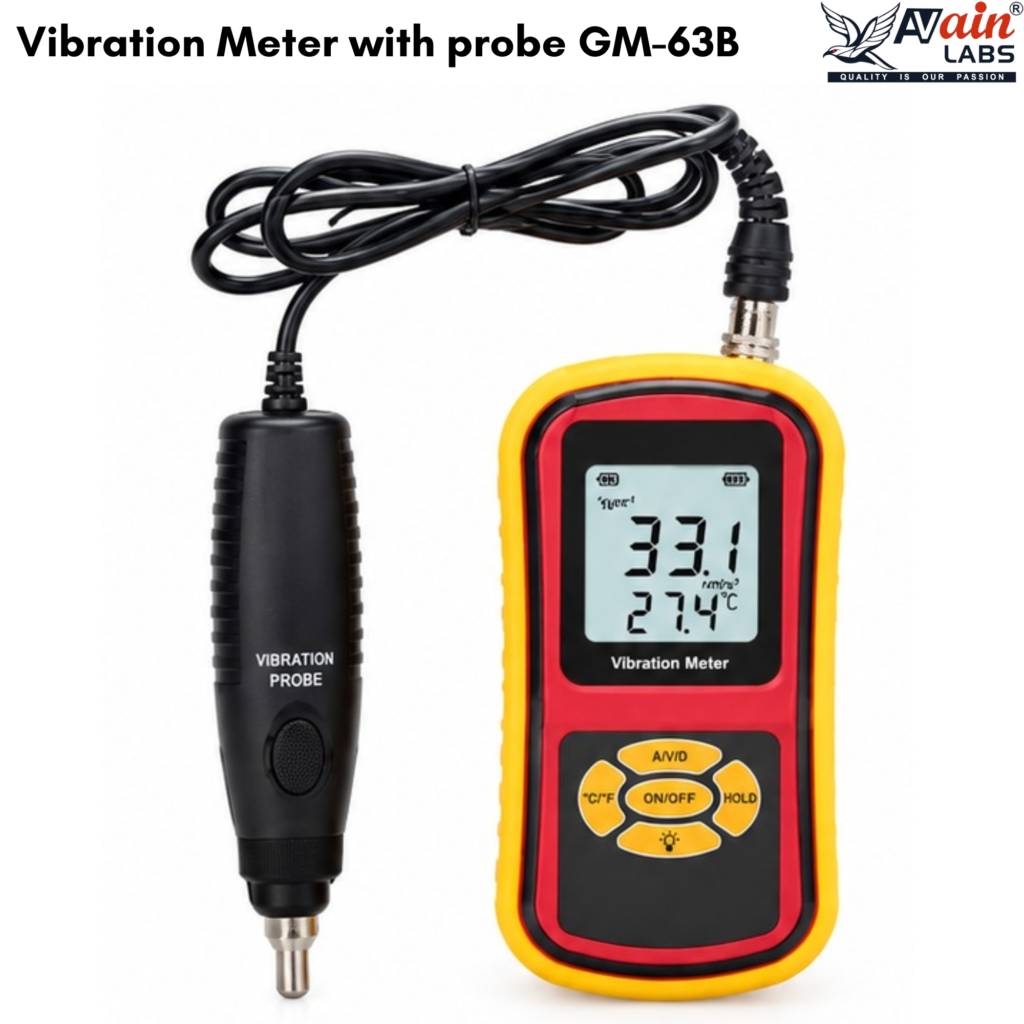

AVAIN LABS® Vibration Meter with probe GM-63B

AVAIN LABS® Vibration Meter with probe GM-63B

The AVAIN LABS® Vibration Meter with Probe GM-63B is a compact and versatile instrument designed for measuring vibration acceleration, velocity, and displacement in machinery and mechanical systems. Equipped with a piezoelectric ceramic accelerometer (shear-type) and a separate magnetic probe, the GM-63B provides convenient vibration measurement for maintenance, inspection, laboratory testing, and industrial applications.

The vibration meter features three measurement modes — Acceleration, Velocity, and Displacement — allowing users to evaluate different aspects of machine vibration. With selectable vibration frequency ranges and a clear 3½-digit LCD display, the instrument is suitable for routine vibration monitoring and diagnostic applications.

The GM-63B offers acceleration measurements from 0.1 to 199.9 m/s² peak, velocity measurements from 0.1 to 199.9 mm/s RMS, and displacement measurements from 0.001 to 1.999 mm.

Key Features

Digital Vibration Meter with Probe
Model: GM-63B
Piezoelectric ceramic accelerometer with shear-type design
Measures:
- Acceleration
- Velocity
- Displacement
Separate magnetic probe
Different vibration frequency selection
Long and short probe heads provided for different applications
Auto power-off after 60 seconds
Low-power indication
Easy-to-read 3½-digit LCD display
Display update time: approximately 1 second
Compact and portable design
Suitable for industrial, laboratory, maintenance, and inspection applications

Technical Specifications

Specification	Details
Model	GM-63B
Detection Method	Piezoelectric Ceramic Accelerometer (Shear-Type)
Acceleration Measuring Range	0.1 to 199.9 m/s² Peak
Velocity Measuring Range	0.1 to 199.9 mm/s RMS
Displacement Measuring Range	0.001 to 1.999 mm
Measurement Modes	Acceleration / Velocity / Displacement
Accuracy	±5% ±2 Digits
Acceleration Frequency Range	10 Hz to 1 kHz (LO), 1 kHz to 15 kHz (HI)
Display Update Time	1 Second
Display	3½-Digit LCD
Probe	Separate Magnetic Probe
Probe Heads	Long and Short Probe Heads
Auto Power Off	After 60 Seconds
Power Source	1 × 9V Battery (6F22)
Dimensions	72 × 35 × 145 mm

Applications

The AVAIN LABS® GM-63B Vibration Meter can be used for:

Industrial vibration measurement
Machinery vibration monitoring
Motor and pump inspection
Bearing and rotating equipment monitoring
Preventive maintenance
Mechanical equipment diagnostics
Laboratory vibration experiments
Equipment condition monitoring
Engineering and technical training
Maintenance and service applications

Acceleration, Velocity & Displacement Measurement

The GM-63B provides three important vibration measurement modes, making it useful for analyzing different vibration characteristics. Acceleration measurement can be used for higher-frequency vibration analysis, while velocity and displacement measurements provide additional information for assessing machine and mechanical-system vibration.

The selectable 10 Hz–1 kHz (LO) and 1 kHz–15 kHz (HI) frequency ranges provide flexibility for different vibration measurement situations.

Portable Vibration Testing Solution

With its compact dimensions of 72 × 35 × 145 mm, battery-powered operation, magnetic probe, and long and short probe heads, the AVAIN LABS® Vibration Meter GM-63B is convenient for field inspections as well as laboratory applications.

It is an ideal instrument for industrial maintenance departments, engineering laboratories, mechanical workshops, educational institutions, research laboratories, and equipment inspection applications requiring measurement of vibration acceleration, velocity, and displacement.

Product Name: AVAIN LABS® Vibration Meter with Probe
Model: GM-63B
Measurement: Acceleration / Velocity / Displacement
Detection: Piezoelectric Ceramic Accelerometer (Shear-Type)
Display: 3½-Digit LCD
Power: 1 × 9V Battery (6F22)
Dimensions: 72 × 35 × 145 mm
