The AVAIN LABS® Autoclave Vertical High Pressure Triple Walled is a robust laboratory sterilization unit designed for efficient and reliable steam sterilization under high pressure. Manufactured with a triple-walled construction and stainless-steel inner and outer chambers, this vertical autoclave is suitable for laboratories, hospitals, research institutions, educational institutions, microbiology labs, pharmaceutical applications, and scientific facilities.
The unit is designed to provide controlled pressure and temperature conditions for effective sterilization. It is equipped with a pressure gauge, automatically controlled pressure switch, safety valve, steam release valve, drain cock, and immersion-type heater, providing convenient operation and enhanced safety during sterilization procedures.
The AVAIN LABS® Vertical High Pressure Autoclave features a triple-walled construction designed to provide a strong and durable sterilization chamber. The inner and outer walls are manufactured from stainless steel, making the unit suitable for demanding laboratory environments.
The robust construction supports consistent sterilization performance while providing durability for regular institutional use.
The autoclave is fitted with a pressure gauge and automatically controlled pressure switch to help maintain the selected operating pressure. The pressure can be adjusted between 10 and 20 PSI according to the sterilization requirement.
For additional operational safety, the unit incorporates a safety valve and steam release valve. The sterilizers are hydraulically tested up to 2.5 times the working pressure, providing an important pressure-resistance test during manufacturing.
A jointless high-grade Silicon-Neoprene gasket is provided to create an effective seal between the lid and chamber. The jointless construction helps minimize steam leakage and supports efficient pressure retention during operation.
The lid is equipped with a radial locking mechanism designed to provide secure closure during pressurized operation. A foot lifting system is also incorporated for convenient handling and operation of the lid.
The AVAIN LABS® Vertical High Pressure Autoclave is suitable for a wide range of laboratory and institutional sterilization applications, including:
| Specification | Details |
|---|---|
| Product Type | Vertical High Pressure Autoclave |
| Construction | Triple Walled |
| Inner Wall | Stainless Steel |
| Outer Wall | Stainless Steel |
| Hydraulic Test Pressure | Up to 40 PSI |
| Working Pressure Adjustment | 10–20 PSI |
| Pressure Gauge | Included |
| Pressure Control | Automatic Pressure Switch |
| Safety Valve | Included |
| Steam Release Valve | Included |
| Drain Cock | Included |
| Heater | Immersion Type |
| Gasket | Jointless High-Grade Silicon-Neoprene |
| Lid Locking | Radial Locking Mechanism |
| Lid Operation | Foot Lifting System |
| Electrical Supply | 230–440 V, 50 Hz AC |
| Hydraulic Testing | Up to 2.5 × Working Pressure |
AVAIN LABS® provides laboratory equipment, scientific instruments, educational models, and laboratory supplies designed for professional, educational, research, and institutional applications. Our equipment is developed with emphasis on durability, practical operation, safety features, and dependable laboratory performance.
Choose the AVAIN LABS® Autoclave Vertical High Pressure Triple Walled for a durable and professionally designed high-pressure steam sterilization solution for laboratories and scientific institutions. Available models| Cat No | Chamber Size Inner Dia x Depth | Heater Load | Capacity Liters | Radial lock Semi Auto |

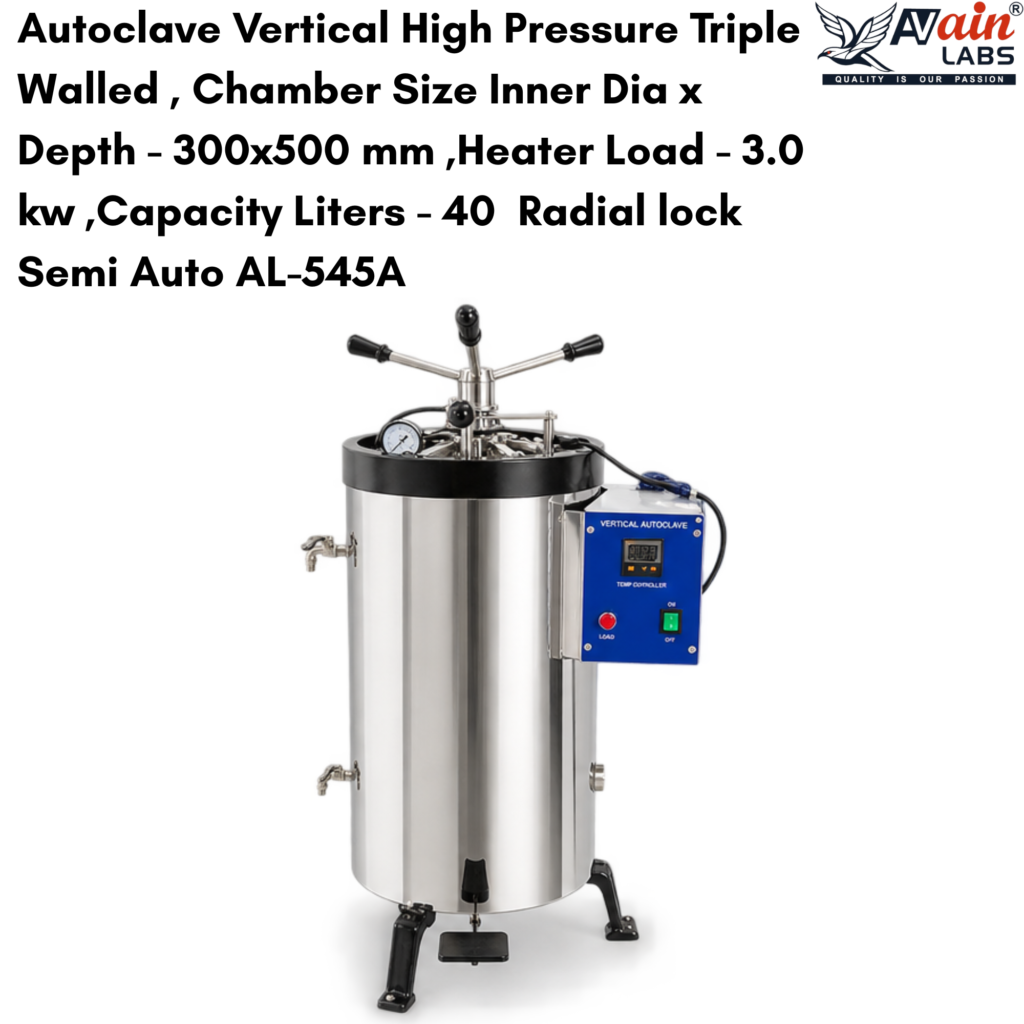

| AL-545A | 300x500 mm | 3.0 kw | 40 Liters | |
| AL-545B | 350x550 mm | 4.0 kw | 50 Liters | |
| AL-545C | 400x600 mm | 5.0 kw | 78 Liters | |
| AL-545D | 450x600 mm | 5.0 kw | 98 Liters | |
| AL-545E | 550x750 mm | 6.0 kw | 185 Liters | |
| Optional (AVH1) | PLC controller with Timer, Alarm, Cycle time and Pressure indicator and Solenoid Valve with Auto-Purging Facility | |||
| Optional (AVH2) | HMI (Touch Screen) Controller with 21 CFR and Real Time Data Monitoring | |||
