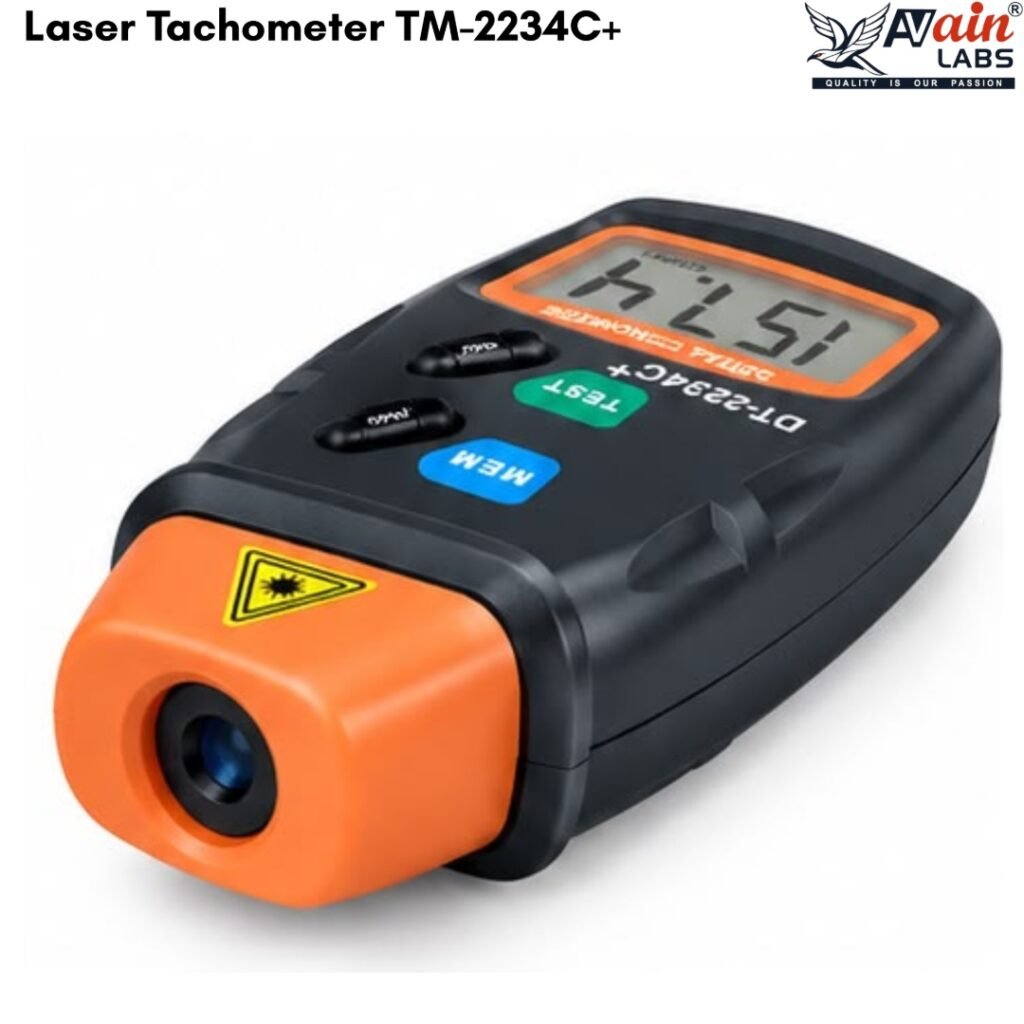

The AVAIN LABS® Laser Tachometer TM-2234C+ is a digital non-contact RPM measuring instrument designed for accurate measurement of the rotational speed of motors, shafts, fans, pulleys, and other rotating machinery. Its laser-based detection system enables convenient RPM measurement without physical contact with the rotating object.
With a measuring range of 2.5 to 99,999 RPM, the TM-2234C+ is suitable for a wide range of laboratory, educational, engineering, maintenance, and industrial applications. The instrument features a clear digital measurement system, memory for recorded values, and a detecting distance of 50 to 500 mm.
| Specification | Details |
|---|---|
| Model | TM-2234C+ |
| Measuring Range | 2.5 to 99,999 RPM |
| Resolution | 0.1 RPM (from 2.5 to 999.9 RPM); 1 RPM (over 1,000 RPM) |
| Accuracy | ±0.05% + 1 digit |
| Detecting Distance | 50 to 500 mm |
| Memory | Last Value, Max Value, Min RPM |
| Power Source | 9V PP3 Battery |
| Dimensions | 131 × 70 × 29 mm |
The AVAIN LABS® TM-2234C+ Laser Tachometer uses laser detection to measure the rotational speed of moving objects without requiring physical contact. This makes it convenient for checking the RPM of rotating components during laboratory experiments, equipment testing, maintenance, and machine inspection.
The tachometer provides memory facilities for retaining the last measured value, maximum RPM, and minimum RPM. This feature is useful when monitoring changing rotational speeds and reviewing measurements during testing.
The AVAIN LABS® Laser Tachometer TM-2234C+ is suitable for:
The AVAIN LABS® LASER TACHOMETER TM-2234C+ is ideal for schools, colleges, universities, engineering laboratories, physics laboratories, industrial workshops, maintenance departments, research facilities, technical training institutes, and machinery testing applications.
With its wide 2.5–99,999 RPM measuring range, high accuracy, non-contact laser detection, memory function, and compact design, the TM-2234C+ provides a practical solution for rotational speed measurement.
