Description
AVAIN LABS® Biological Safety Cabinet As Per Class II
The AVAIN LABS® Biological Safety Cabinet (Class II) is engineered to provide superior protection for laboratory personnel, samples, and the environment during microbiological and biomedical applications. Designed to meet the stringent requirements of research laboratories, hospitals, pharmaceutical industries, biotechnology facilities, diagnostic centers, and educational institutions, this cabinet ensures a sterile and contamination-free working environment.
Manufactured using premium-quality materials and advanced air filtration technology, the cabinet delivers exceptional performance, reliability, and safety. The ergonomic design, low-noise operation, and energy-efficient airflow system make it ideal for continuous laboratory use.
Key Features
- High-efficiency Class II Biological Safety Cabinet for personnel, product, and environmental protection.
- Heavy Gauge Stainless Steel Working Table for corrosion resistance, durability, and easy cleaning.
- Outer body available in:
- Wooden Sunmica Finish
- Mild Steel (Powder Coated)
- Stainless Steel
(Available as per customer requirement.)
- Equipped with UV Germicidal Lamp for effective sterilization before and after operation.
- Bright Fluorescent Lighting provides excellent visibility inside the work chamber.
- Built-in Pressure Manometer for convenient monitoring of airflow pressure.
- Advanced Mini-Pleat HEPA/ULPA Filter System with 99.99% efficiency at 0.3 micron, ensuring superior air purification.
- Pre-filter removes larger dust particles, extending the life of the HEPA/ULPA filter.
- Heavy-duty, dynamically balanced motor and blower provide uniform airflow with minimal noise and vibration.
- Safety Interlocking System prevents simultaneous operation of the UV Germicidal Lamp and Fluorescent Light, protecting users from UV exposure.
- Operates on 220–230V AC, 50 Hz single-phase power supply.
Advanced Filtration System
The cabinet draws contaminated air through a high-quality pre-filter before passing it through a Mini-Pleat HEPA/ULPA Filter. This advanced filtration system effectively captures 99.99% of airborne particles measuring 0.3 microns and larger, creating a clean, sterile work environment while preventing cross-contamination.
Construction
- Heavy Gauge Stainless Steel Work Surface
- Smooth, easy-to-clean interior
- Durable powder-coated Mild Steel, Stainless Steel, or Wooden Sunmica exterior
- Chemical and corrosion-resistant construction
- Ergonomic front opening for comfortable operation
- Long-lasting laboratory-grade finish
Safety Features
- UV Germicidal Lamp for chamber sterilization
- Fluorescent illumination for clear visibility
- UV and fluorescent lamp interlocking safety mechanism
- Pressure Manometer for airflow monitoring
- Low-noise heavy-duty blower
- High-efficiency HEPA/ULPA filtration
- Designed to minimize contamination risks
Applications
The AVAIN LABS® Biological Safety Cabinet is ideal for:
- Microbiology Laboratories
- Biotechnology Research
- Pharmaceutical Industries
- Hospitals & Healthcare Laboratories
- Medical Colleges
- Pathology & Diagnostic Labs
- Vaccine Research
- Tissue Culture Laboratories
- Molecular Biology Laboratories
- Clinical Research Organizations (CROs)
- Educational & Research Institutions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Biological Safety Cabinet Class II |
| Working Surface | Heavy Gauge Stainless Steel |
| Outer Body | Wooden Sunmica / Mild Steel / Stainless Steel |
| Filter Type | Mini-Pleat HEPA/ULPA Filter |
| Filtration Efficiency | 99.99% @ 0.3 Micron |
| Pre-Filter | Included |
| UV Lamp | Yes |
| Fluorescent Light | Yes |
| Pressure Manometer | Yes |
| Blower | Heavy Duty, Low Noise |
| Safety | UV & Fluorescent Interlocking System |
| Power Supply | 220–230V AC, 50 Hz |
Why Choose AVAIN LABS®?
AVAIN LABS® is a trusted manufacturer of laboratory equipment, delivering innovative, reliable, and high-performance solutions for research, healthcare, pharmaceutical, and industrial laboratories. Every Biological Safety Cabinet is built using premium components, precision engineering, and stringent quality standards to ensure maximum operator safety, product protection, and long service life.
Available models
| Cat No | Chamber Size | No of filter | Material | |
| AL-550A1 | 2x2x2 | 1 | Mild Steel | |
| AL-550A2 | 2x2x2 | 1 | Stainless Steel | |
| AL-550A3 | 2x2x2 | 1 | Wooden | |

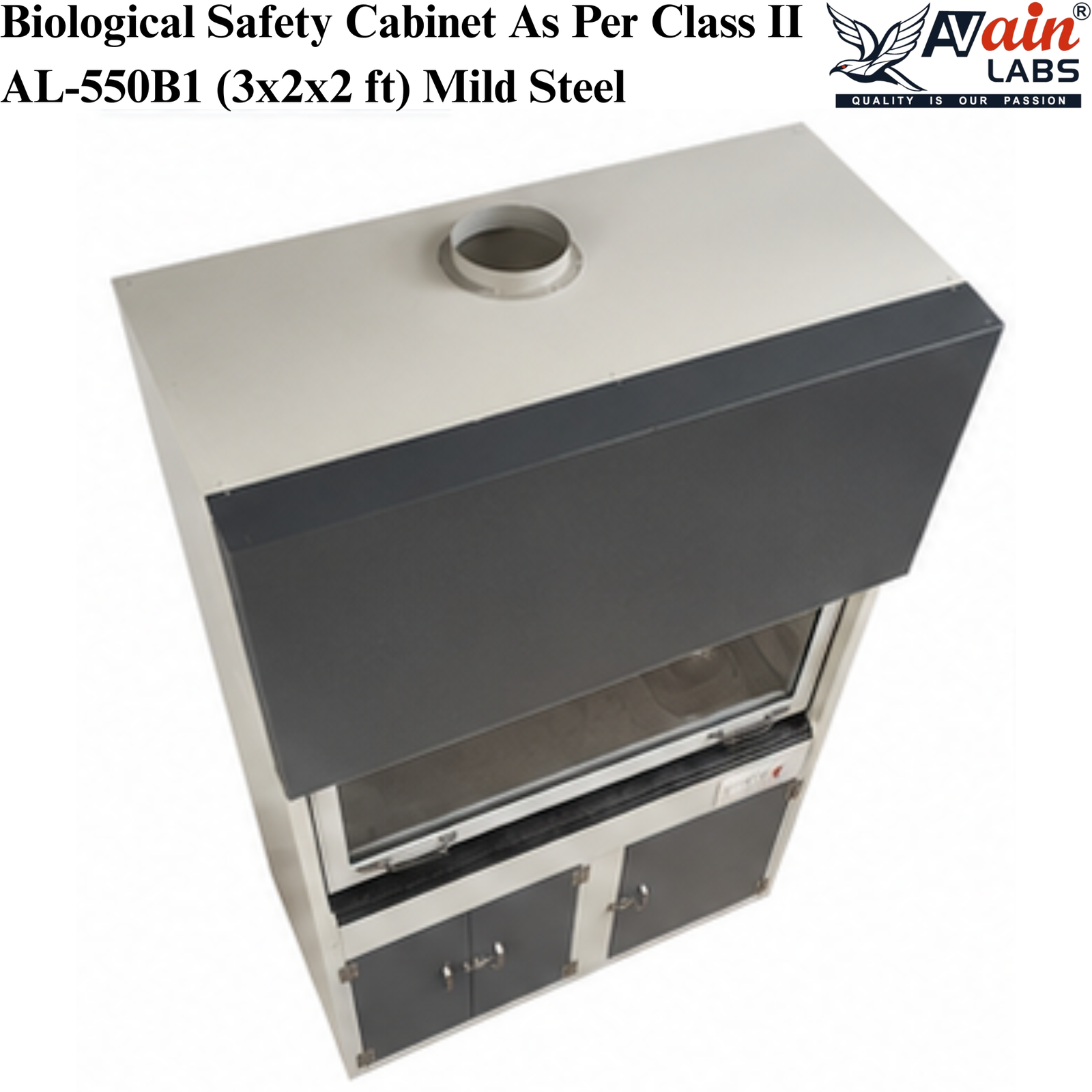

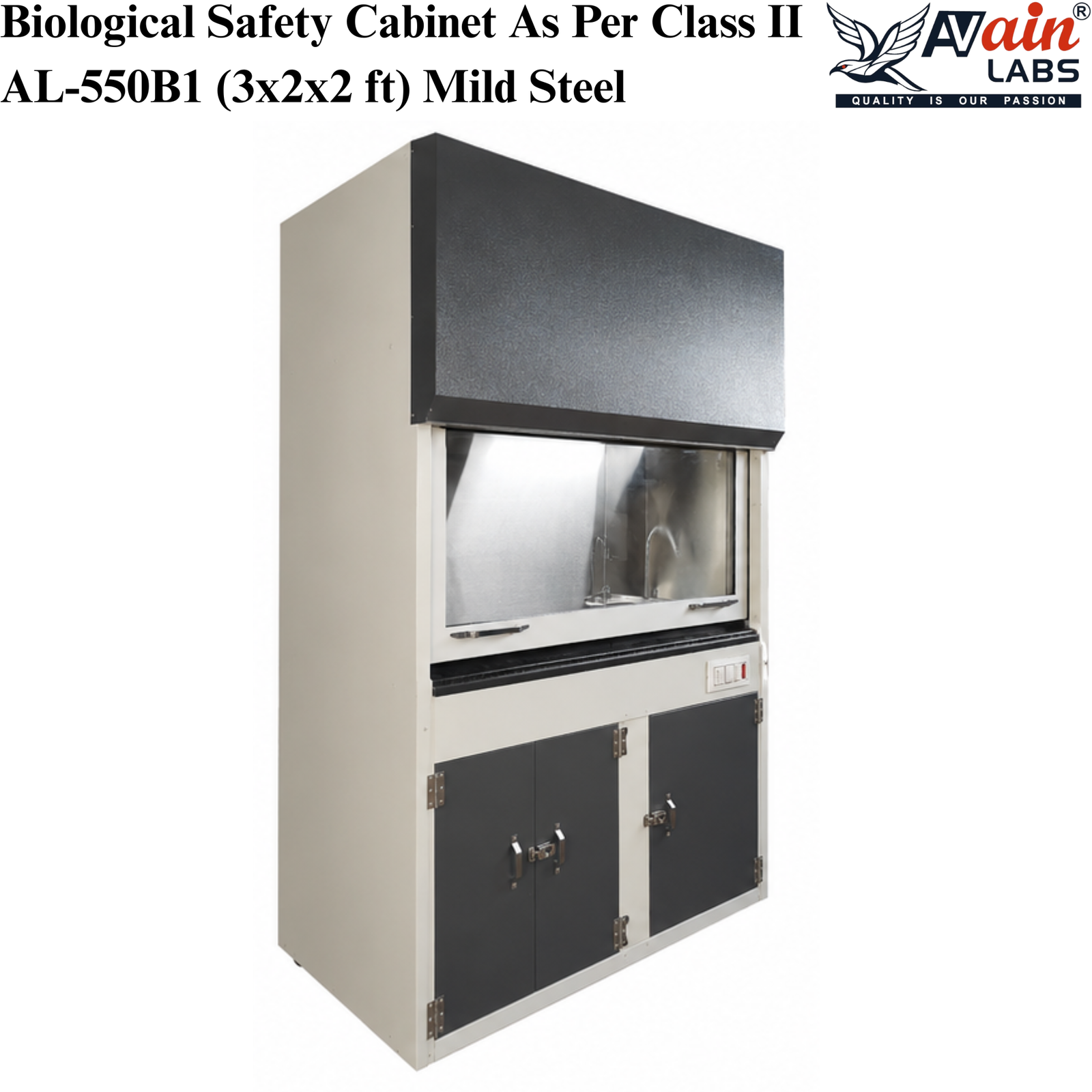

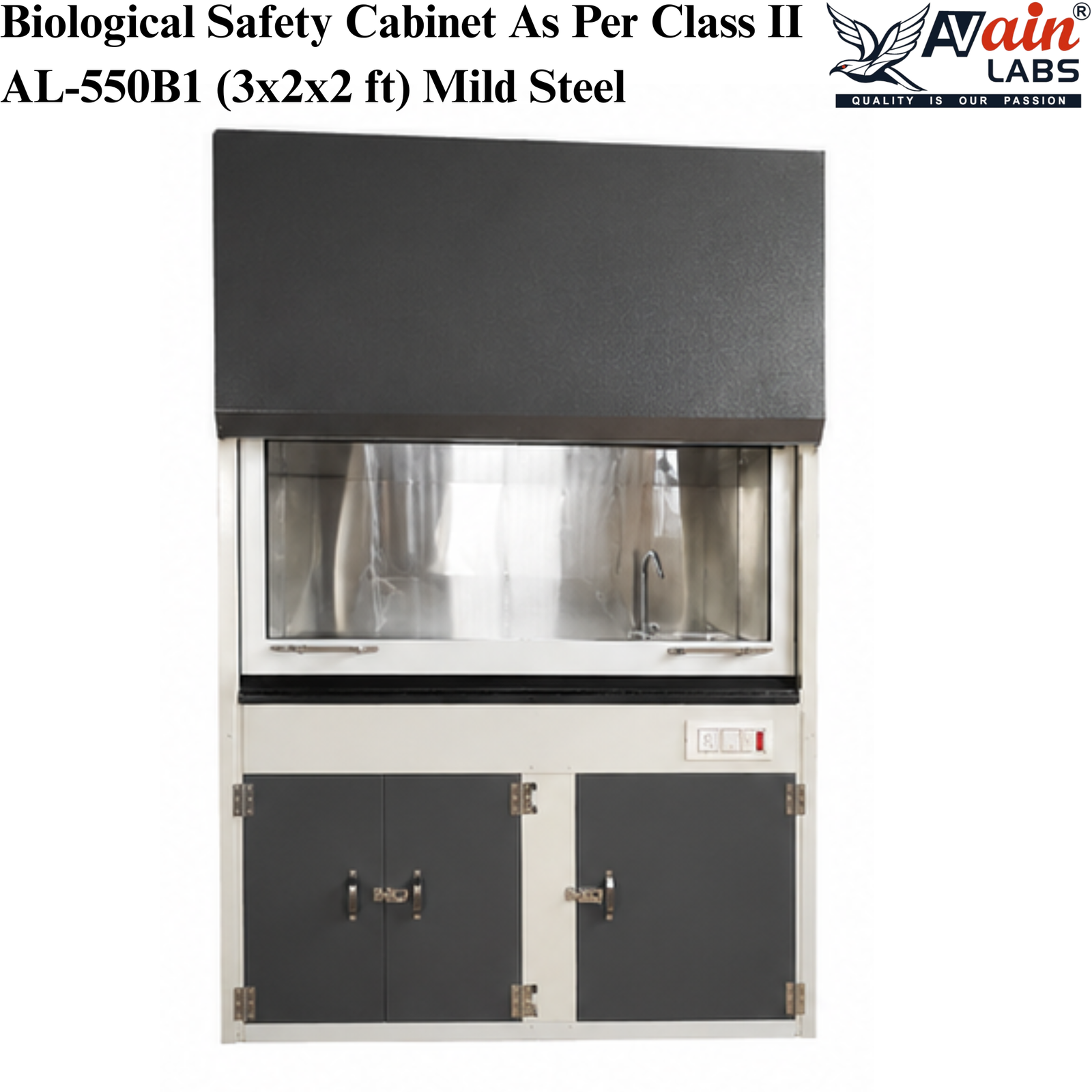

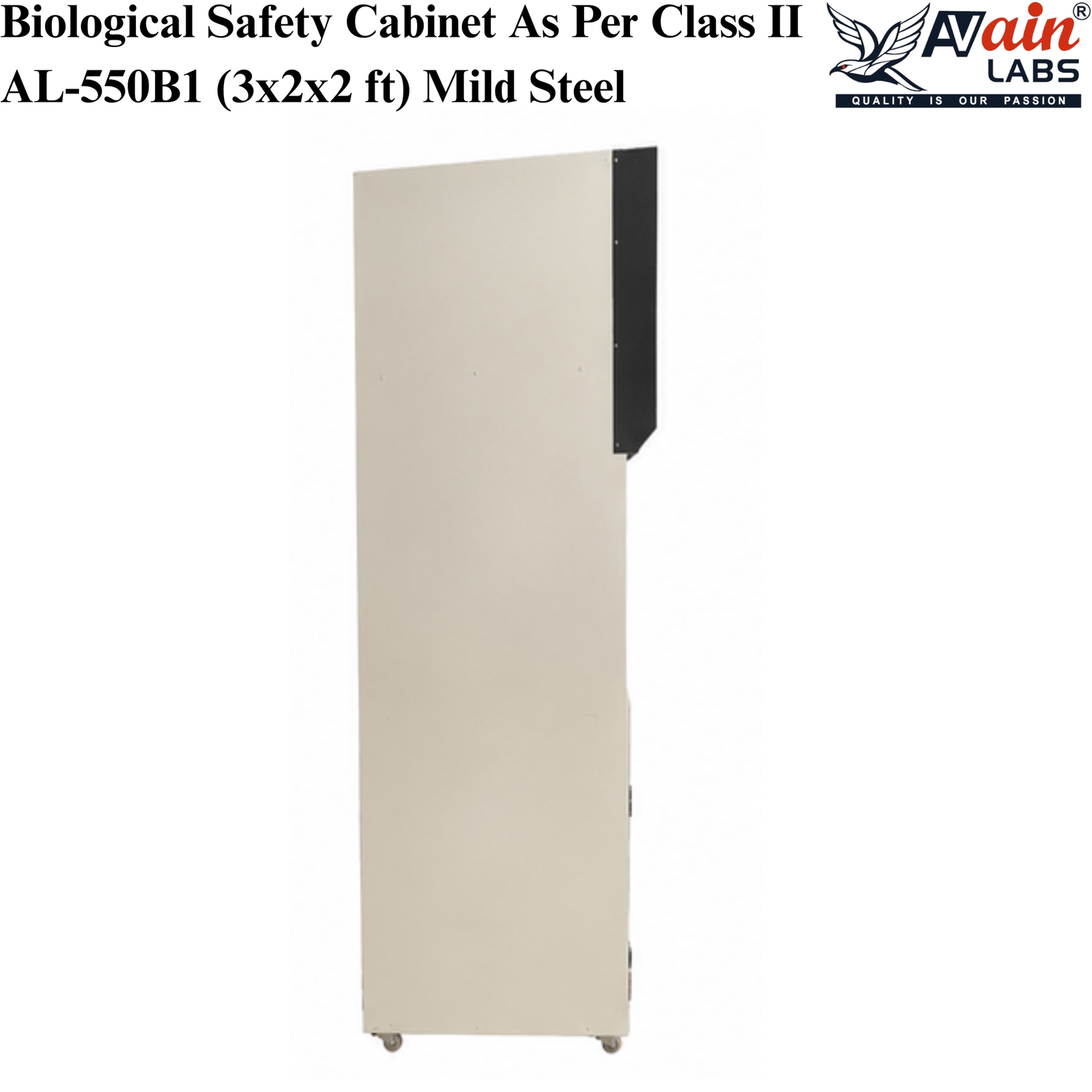

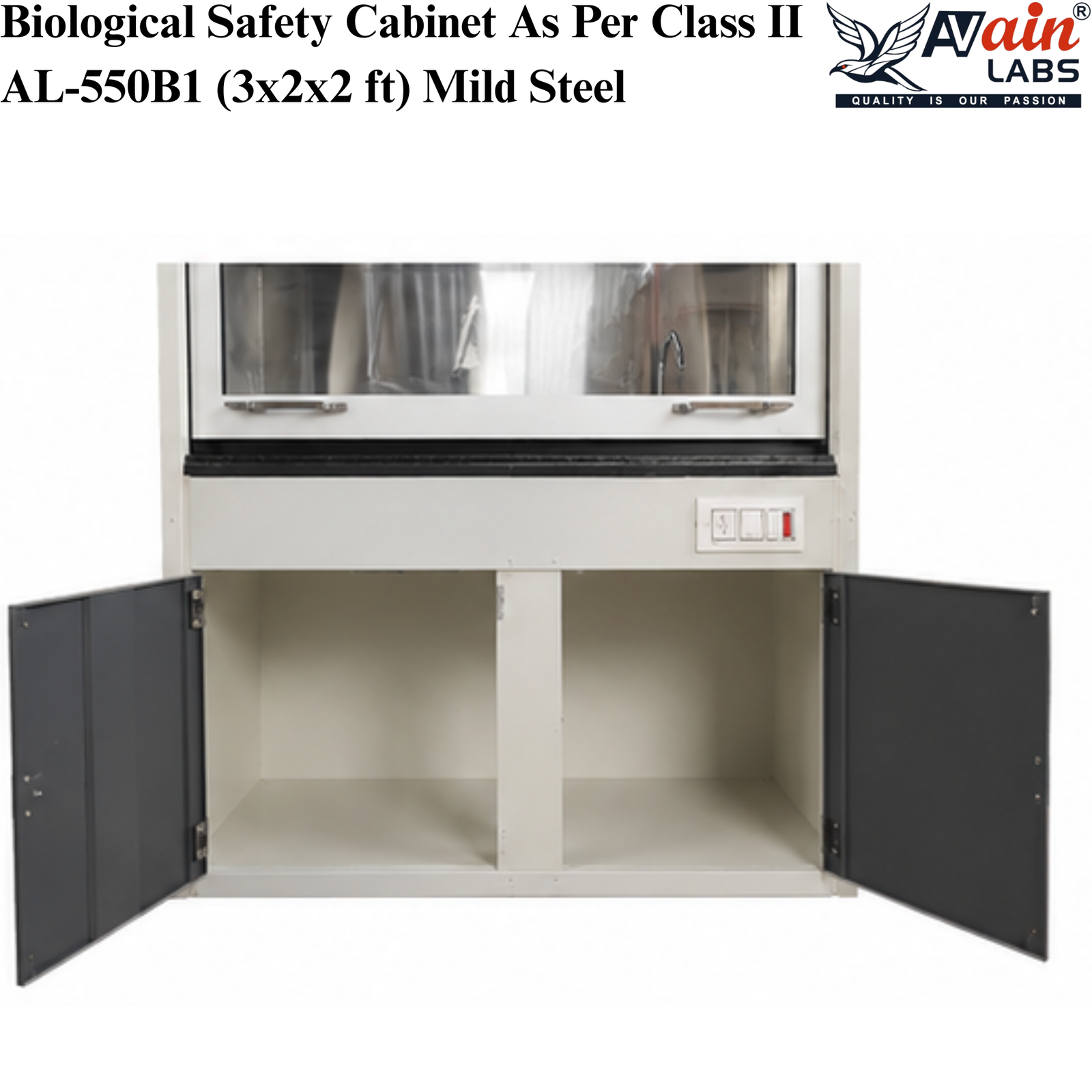

| AL-550B1 | 3x2x2 | 1 | Mild Steel | |
| AL-550B2 | 3x2x2 | 1 | Stainless Steel | |
| AL-550B3 | 3x2x2 | 1 | Wooden | |
| AL-550C1 | 4x2x2 | 2 | Mild Steel | |
| AL-550C2 | 4x2x2 | 2 | Stainless Steel | |
| AL-550C3 | 4x2x2 | 2 | Wooden | |
| AL-550D1 | 6x2x2 | 2 | Mild Steel | |
| AL-550D2 | 6x2x2 | 2 | Stainless Steel | |
| AL-550D3 | 6x2x2 | 2 | Wooden | |
| OPTIONAL (BSC1) | Magnahelic differential pressure gauge instead of static manometer | |||
| OPTIONAL (BSC2) | Microprocessor controller for illumination and inbuilt timer | |||
| OPTIONAL (BSC3) | Microprocessor controller with timer and air velocity sensor | |||
| ALSO AVAILABLE IN M.S POWER COATED -STAINLESS STEEL | ||||
