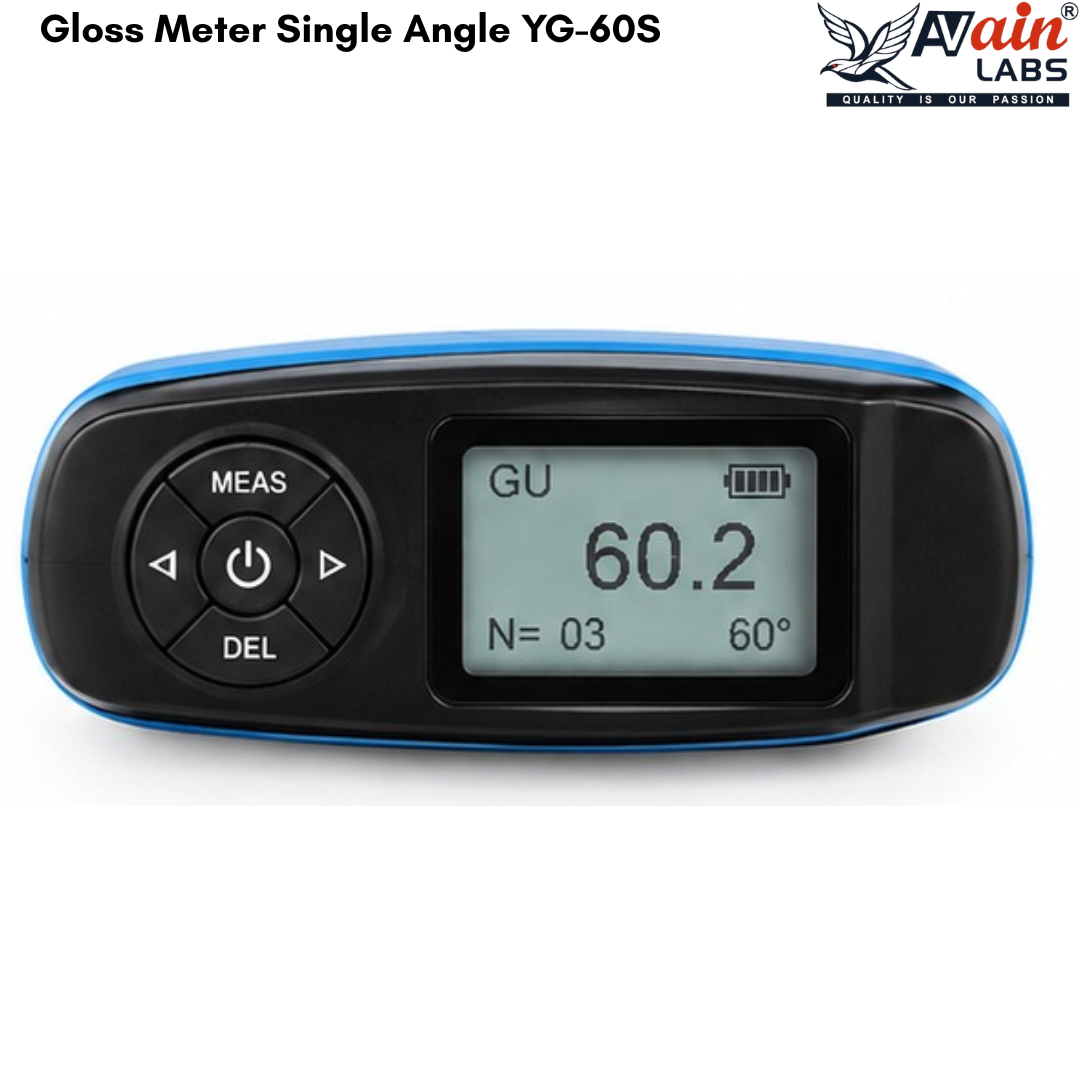

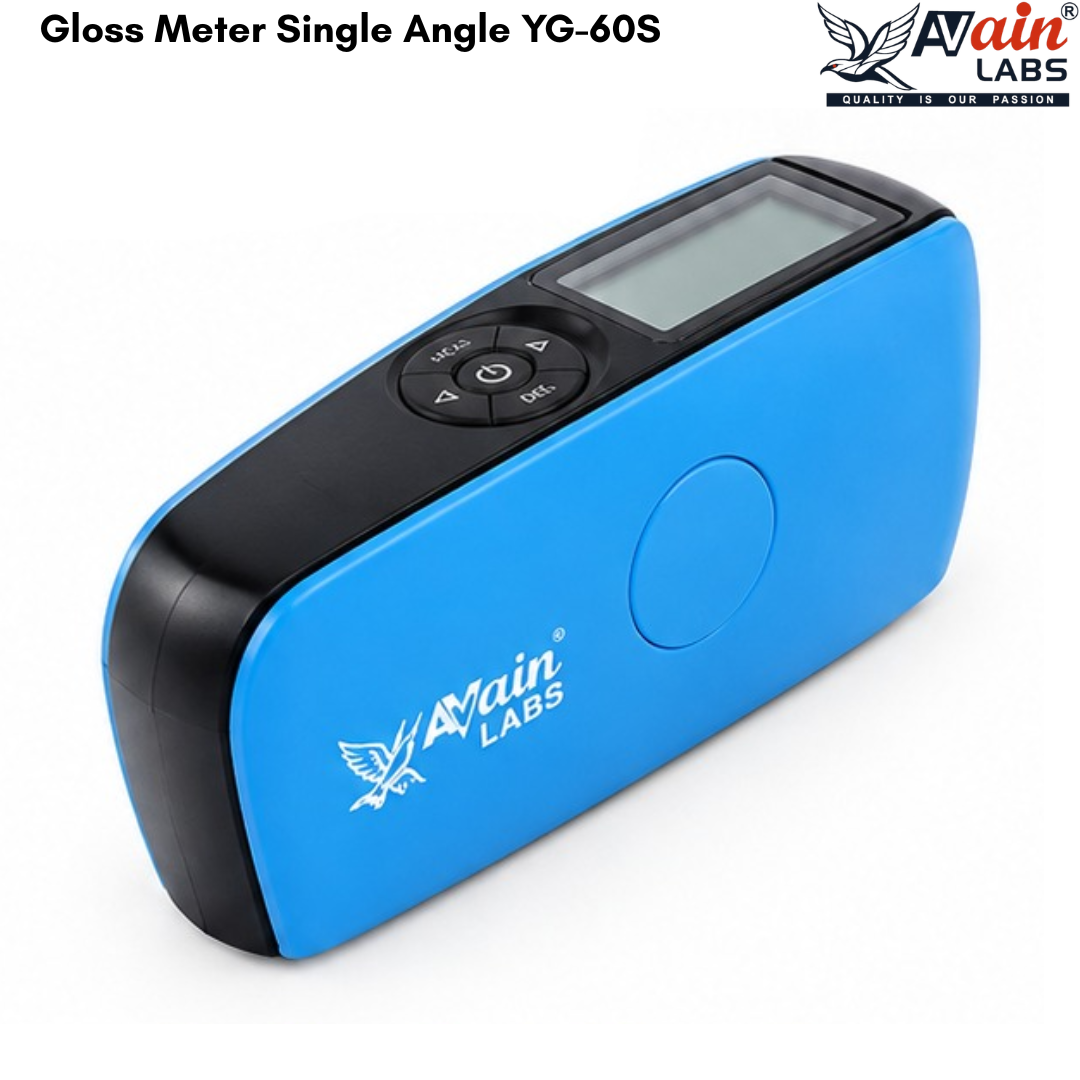

AVAIN LABS® Gloss Meter Single Angle YG-60S

Description

AVAIN LABS® Gloss Meter Single Angle YG-60S

The AVAIN LABS® Gloss Meter Single Angle YG-60S is a compact and reliable single-angle gloss measurement instrument designed for accurate evaluation of surface gloss. With a 60° measuring angle, 0–200 GU measuring range, and 1 GU resolution, the YG-60S is suitable for routine quality control and surface finish inspection across a variety of materials and products.

The YG-60S Gloss Meter provides fast measurements with a measuring time of approximately 0.5 seconds, helping users perform efficient gloss testing during manufacturing, inspection, and quality-control processes. Its repeatability is ±1 GU from 0 to 100 GU and ±1% GU thereafter, supporting consistent measurement results.

The instrument is supplied with a calibration block for calibration and includes an automatic power-off function after 30 seconds to help conserve battery power. Its compact dimensions of 160 × 52 × 84 mm make it convenient for handheld measurement and laboratory or production-floor use.

Key Features
Single-angle gloss measurement at 60°
Measuring range: 0 to 200 GU
Resolution: 1 GU
Fast measuring time: 0.5 seconds
Repeatability: ±1 GU from 0 to 100 GU; ±1% GU thereafter

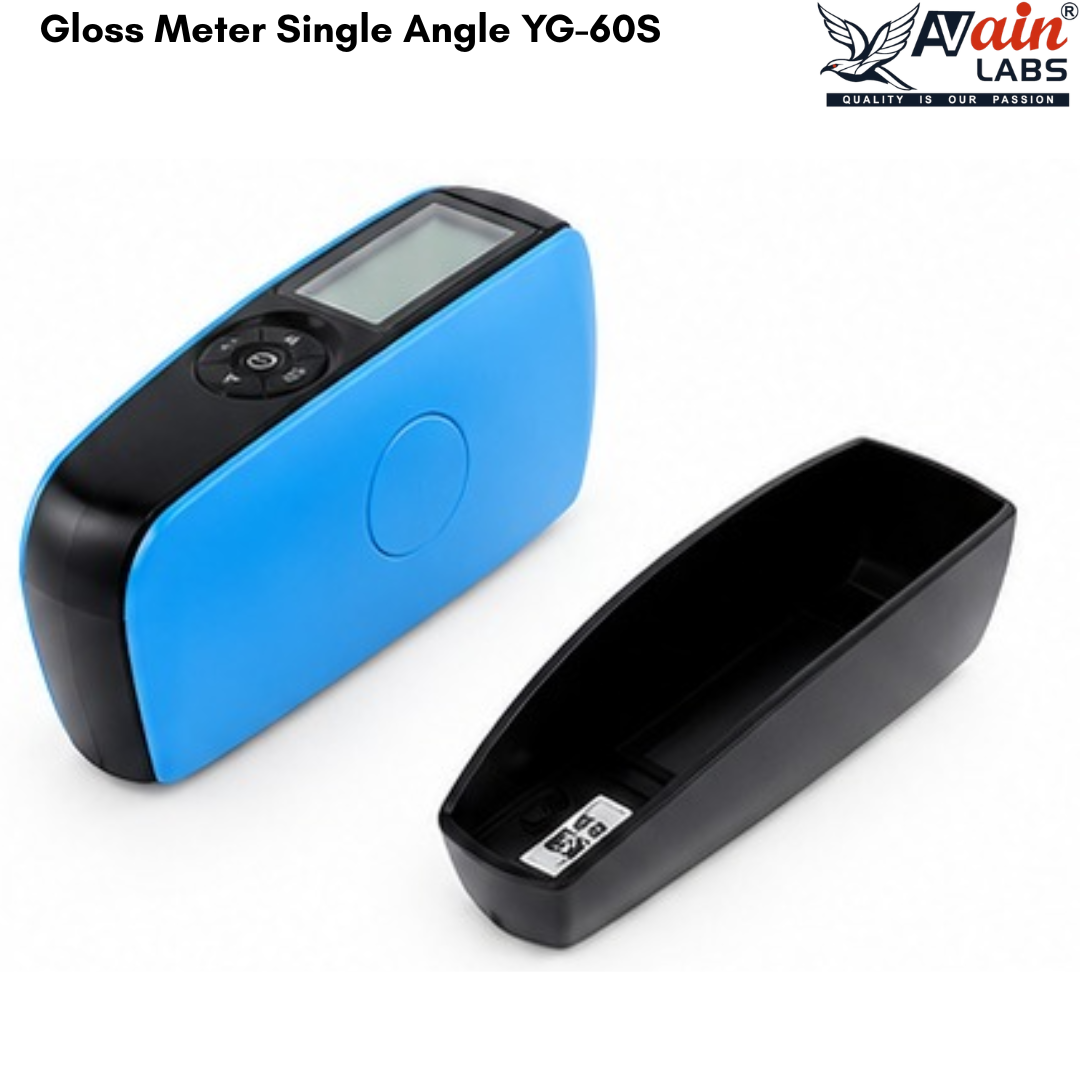

Supplied with calibration block
Automatic power-off after 30 seconds
Compact size: 160 × 52 × 84 mm
Power source: 1 × 1.5 V (AA) battery
Reliable and accurate gloss measurement for quality-control applications

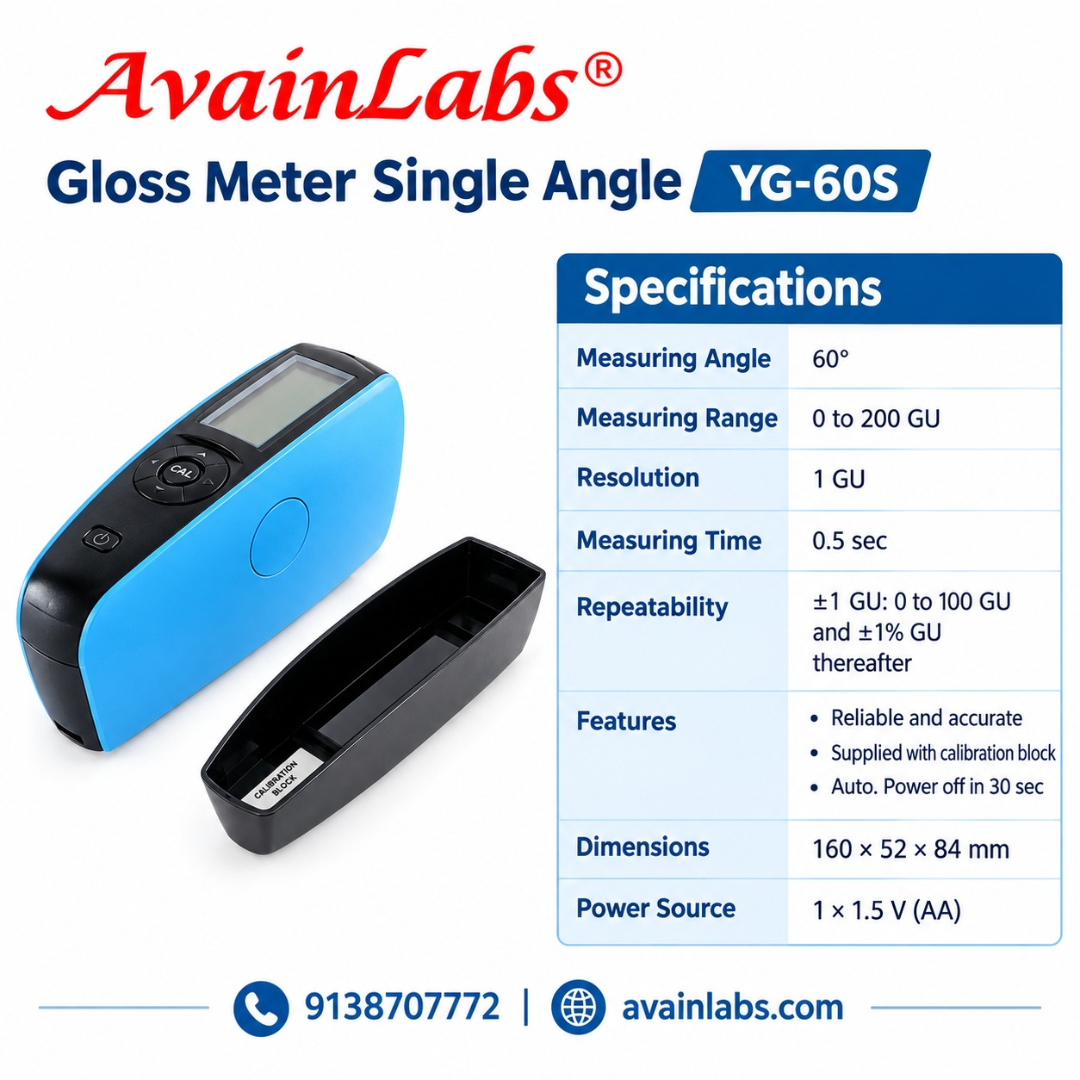

Technical Specifications
Specification AVAIN LABS® YG-60S
Product Type Single Angle Gloss Meter
Model YG-60S
Measuring Angle 60°
Measuring Range 0–200 GU
Resolution 1 GU
Measuring Time 0.5 sec
Repeatability ±1 GU: 0–100 GU; ±1% GU thereafter
Calibration Calibration block supplied
Auto Power Off 30 seconds
Dimensions 160 × 52 × 84 mm
Power Source 1 × 1.5 V (AA)
Applications

The AVAIN LABS® YG-60S Gloss Meter can be used for surface gloss measurement, quality inspection, production quality control, coating inspection, paint and finish evaluation, and comparative surface-finish testing where 60° gloss measurement is required.

Why Choose AVAIN LABS® YG-60S?

The YG-60S combines a 60° measurement geometry, 0–200 GU range, 1 GU resolution, fast 0.5-second measurement time, calibration block, and compact design in one practical gloss measurement instrument. It is designed for users who need quick and repeatable gloss measurements for surface quality assessment.
