AVAIN LABS® Serological Water Bath
The AVAIN LABS® Serological Water Bath is a high-performance laboratory equipment designed for accurate and reliable temperature control in medical, pharmaceutical, microbiology, biotechnology, and research laboratories. Manufactured using premium-grade S.S. 304 stainless steel inner chamber and a durable 20-gauge mild steel outer body with superior powder-coated finish, this laboratory water bath ensures long-lasting durability, corrosion resistance, and excellent thermal efficiency.
Built with a double-walled construction and insulated with 50 mm thick mineral wool on five sides, the AVAIN LABS® Serological Water Bath minimizes heat loss while maintaining stable operating temperatures. The unit is fitted with a highly efficient hydraulic thermostat temperature control system that provides precise temperature regulation from 5°C above ambient to 100°C with an accuracy of ±0.5°C, making it ideal for serological tests, incubation, sample warming, bacteriological studies, and routine laboratory applications.
The equipment is equipped with copper nickel-plated tubular heating elements for fast and uniform heating performance. It also features perforated and removable diffuser shelves for effective heat circulation and user convenience. A high-quality stainless steel gable-type cover, along with a power cord and plug, ensures safe and easy operation on 220–230 volts A.C. supply.
Available models
| Cat No | Size Inner chamber SS | Suitable Racks | Capacity in Litres Apx | Inner Chamber | ||
| AL-514A1 | 300x175x175 mm | 1 Rack | 12 Liters | SS 202 | ||
| AL-514A2 | 300x175x175 mm | 1 Rack | 12 Liters | SS 304 | ||

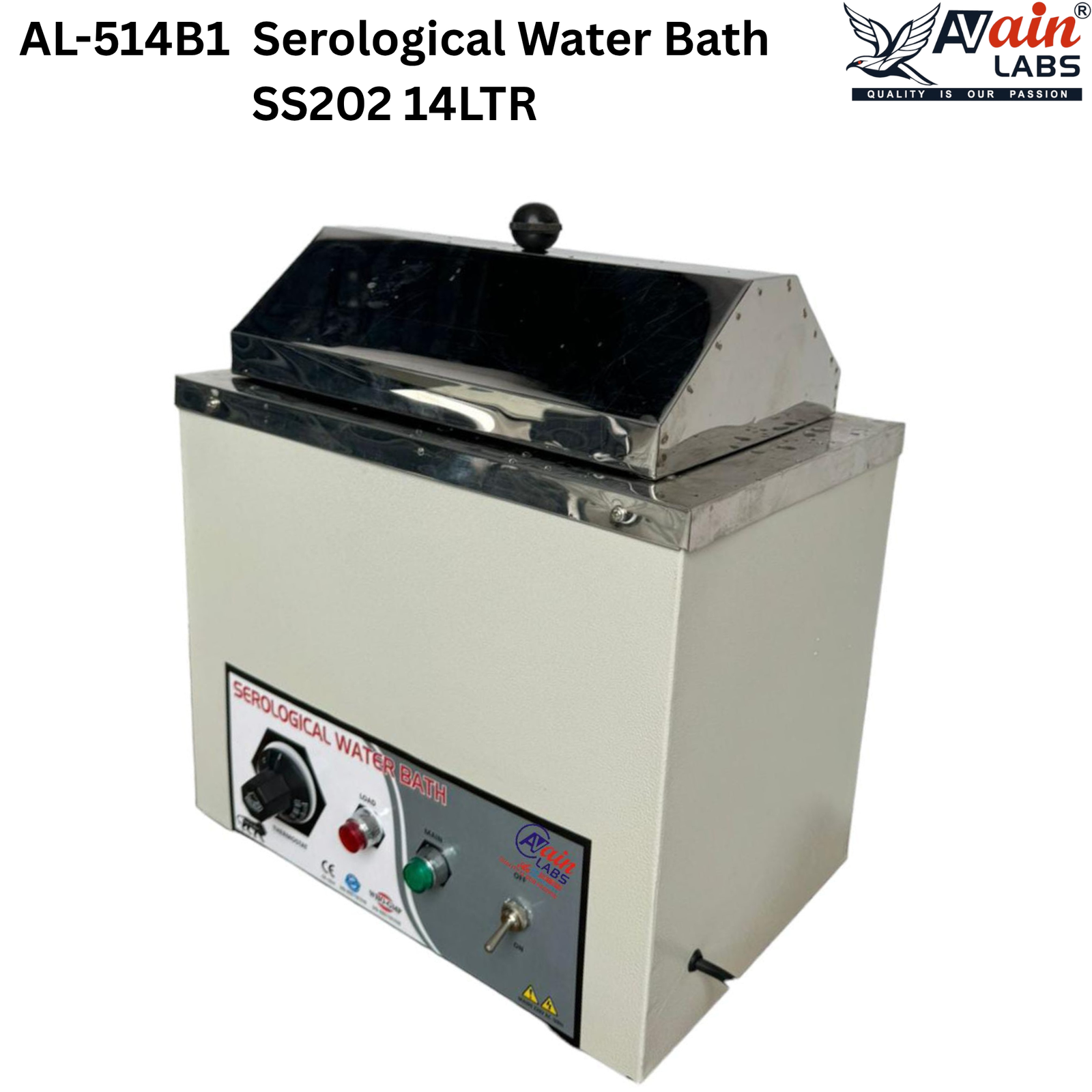

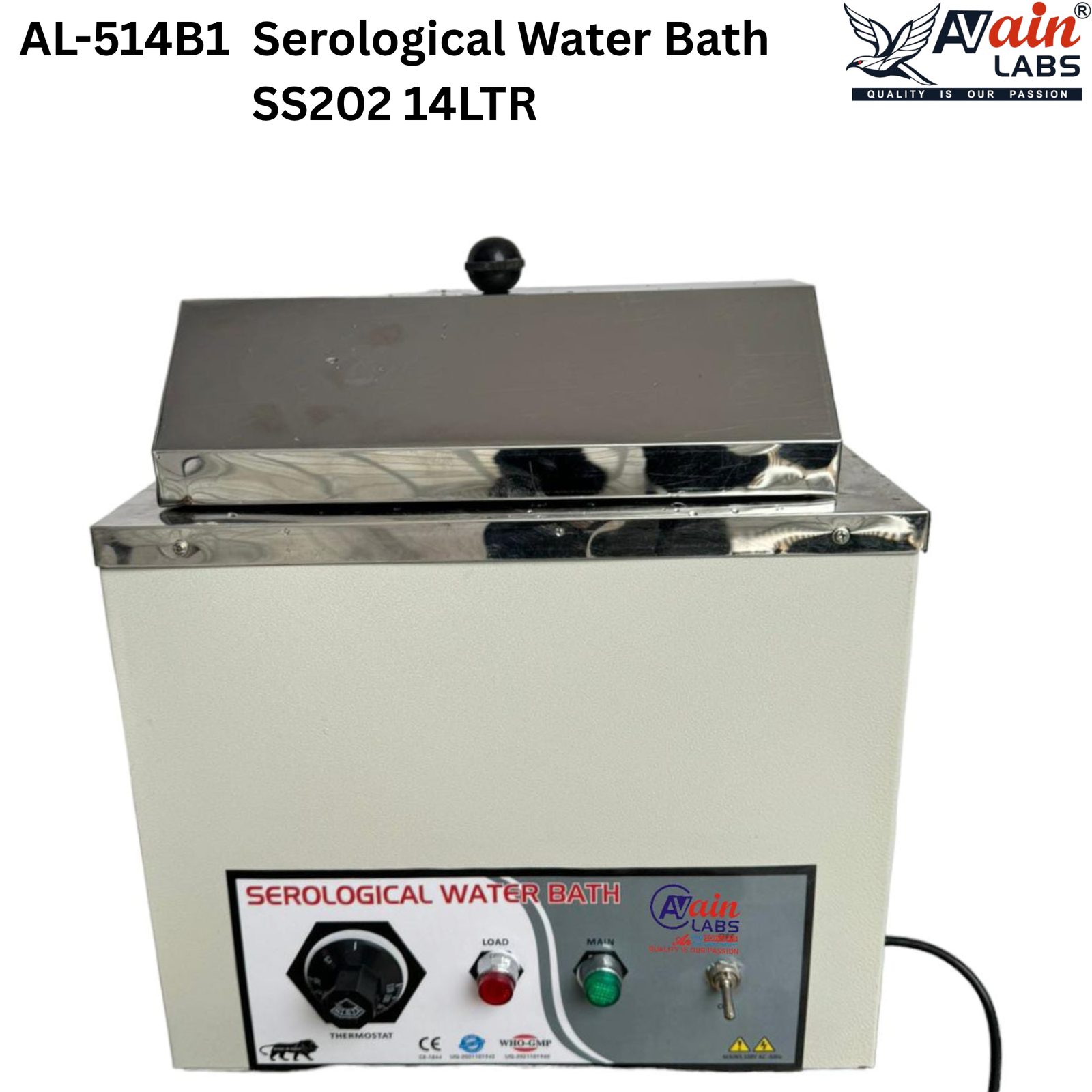

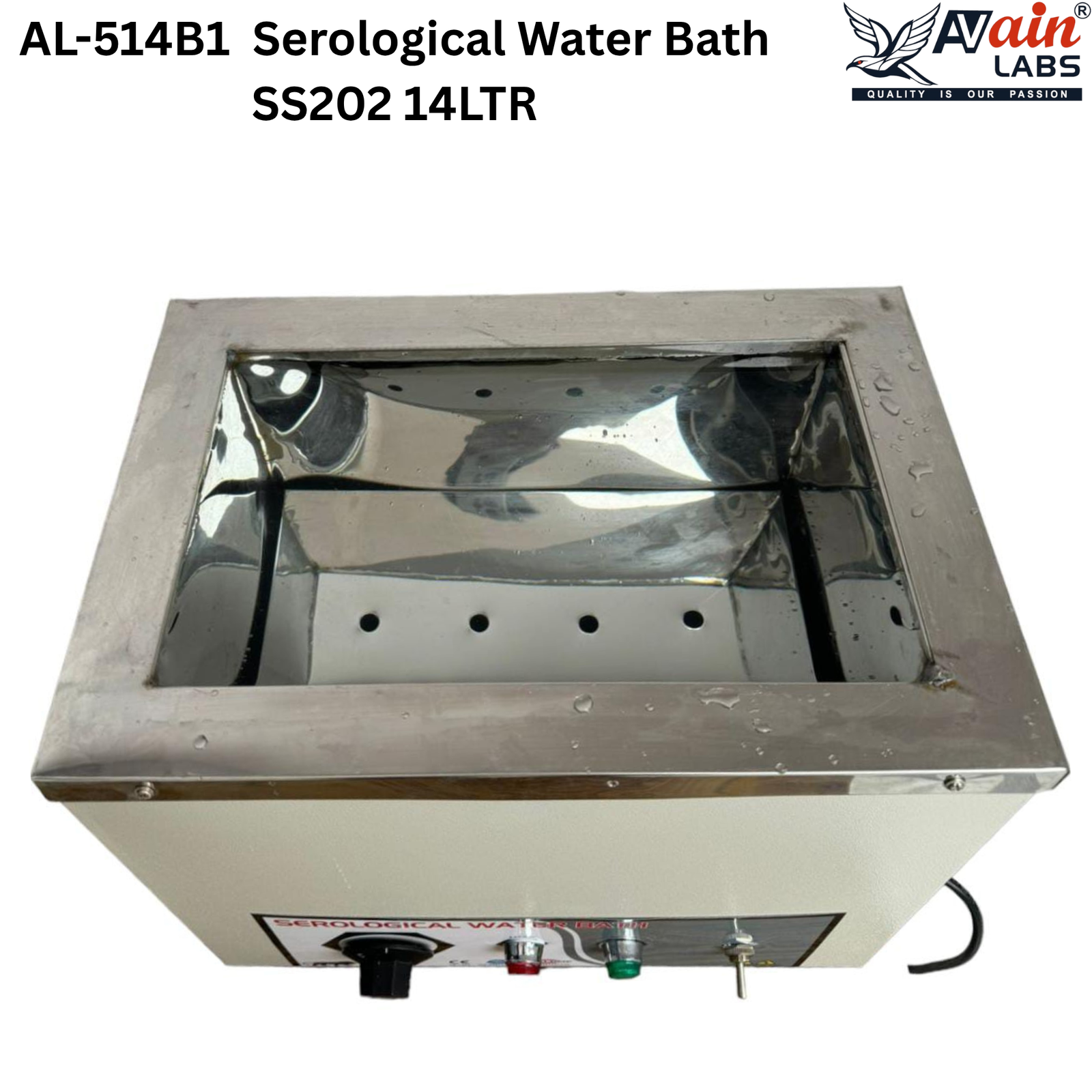

| AL-514B1 | 300x250x175 mm | 2 racks | 14 Liters | SS 202 | ||
| AL-514B2 | 300x250x175 mm | 2 racks | 14 Liters | SS 304 | ||

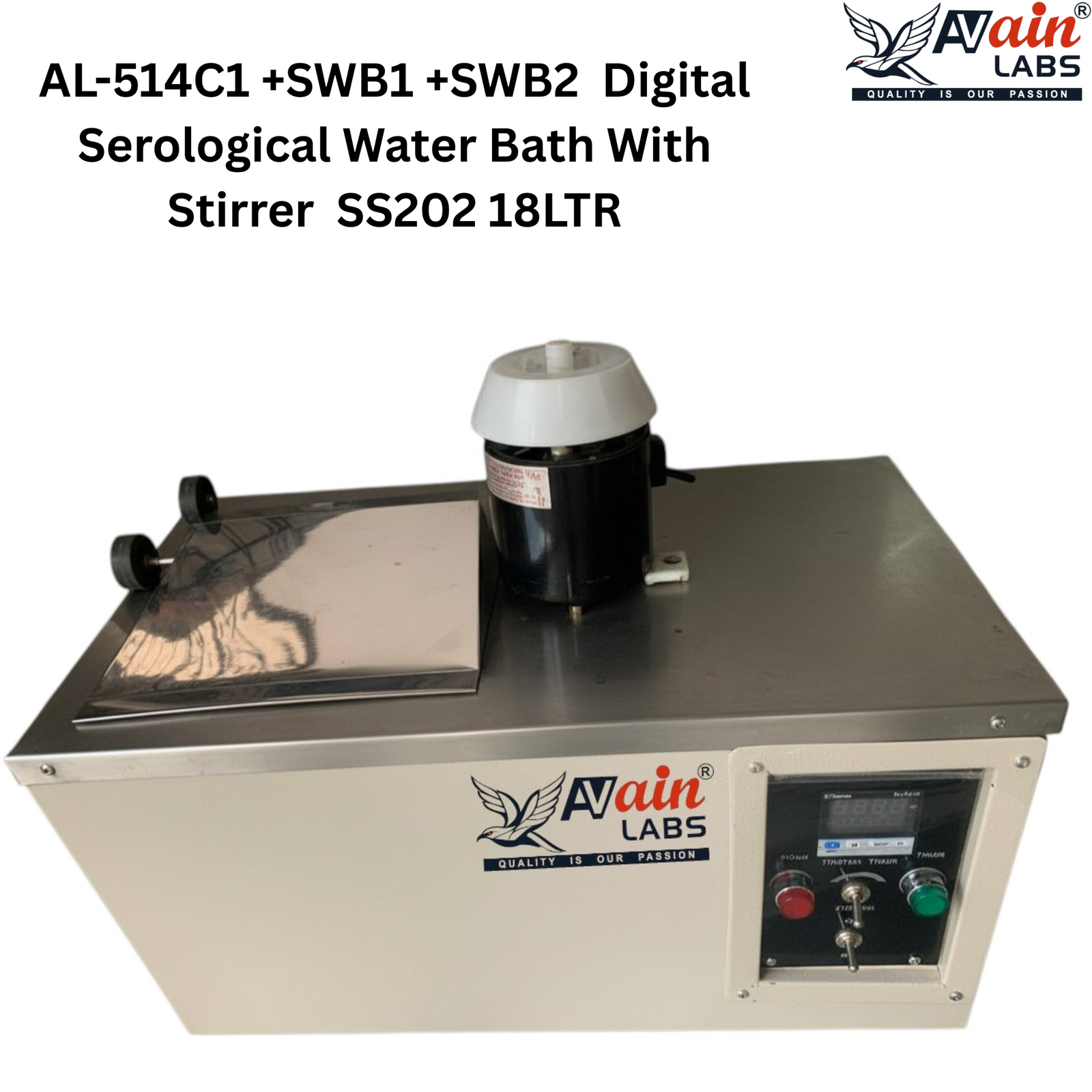

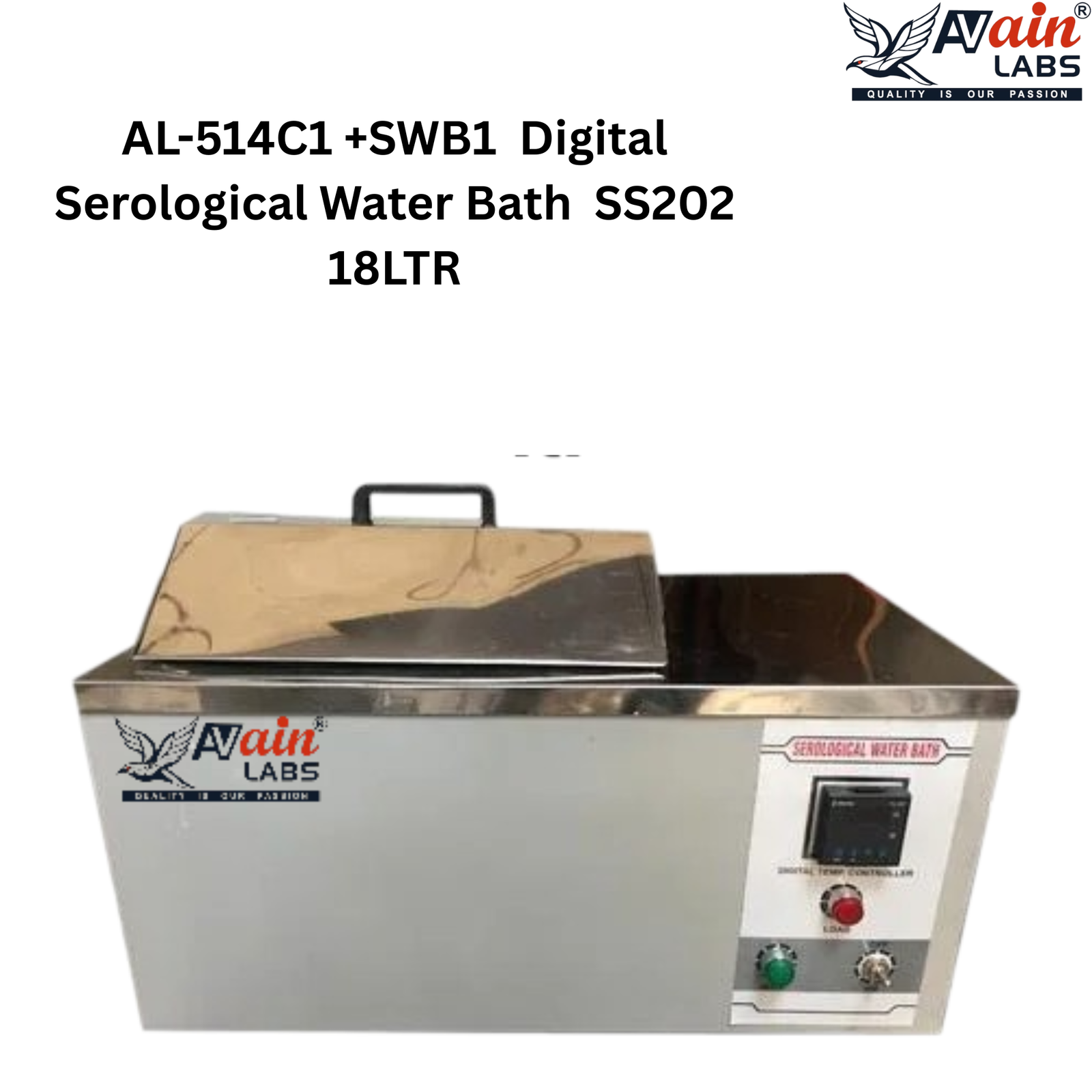

| AL-514C1 | 375x300x175 mm | 4 racks | 18 Liters | SS 202 | ||
| AL-514C1 | 375x300x175 mm | 4 racks | 18 Liters | SS 304 | ||
| AL-514D1 | 455x300x175 mm | 6 racks | 25 Liters | SS 202 | ||
| AL-514D2 | 455x300x175 mm | 6 racks | 25 Liters | SS 304 | ||

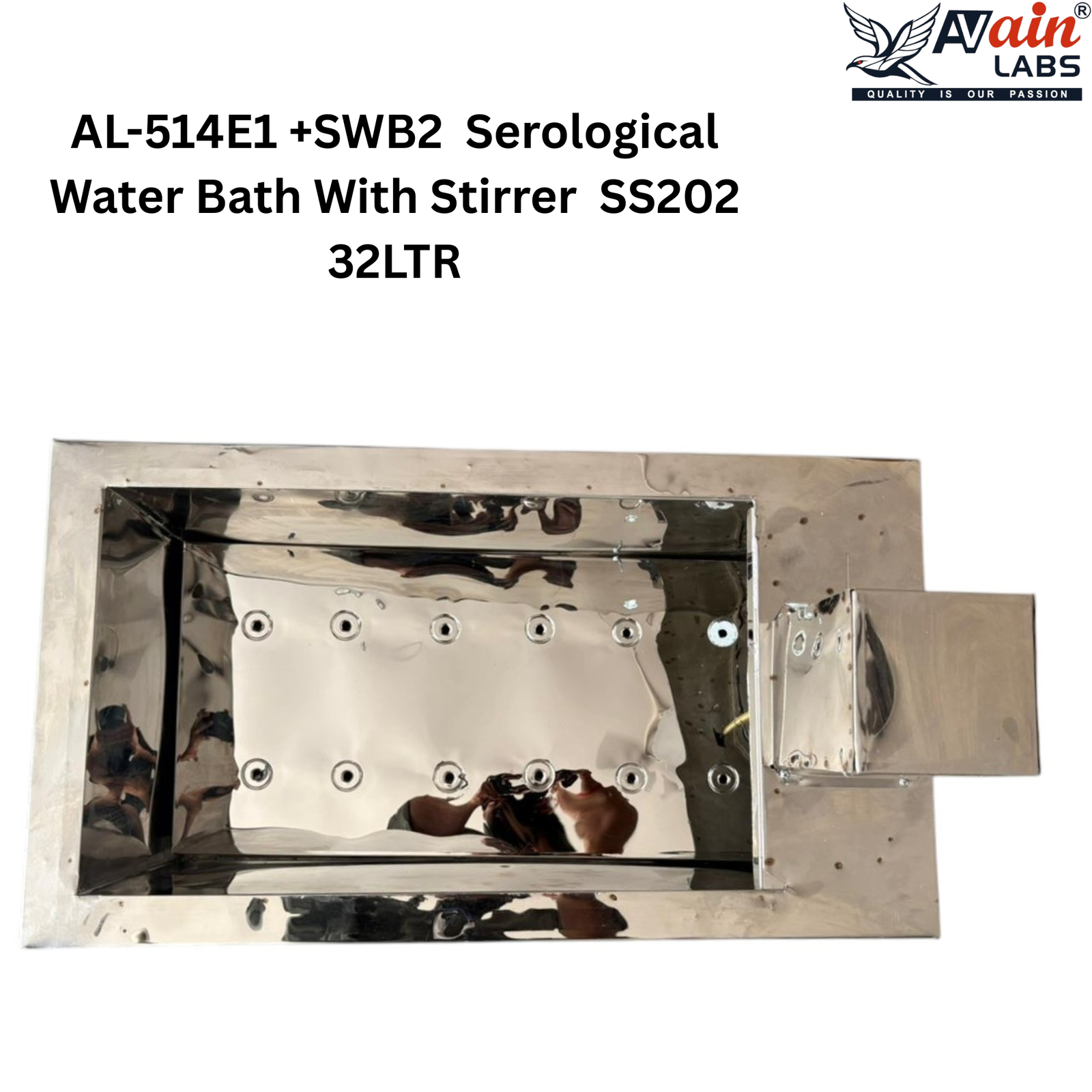

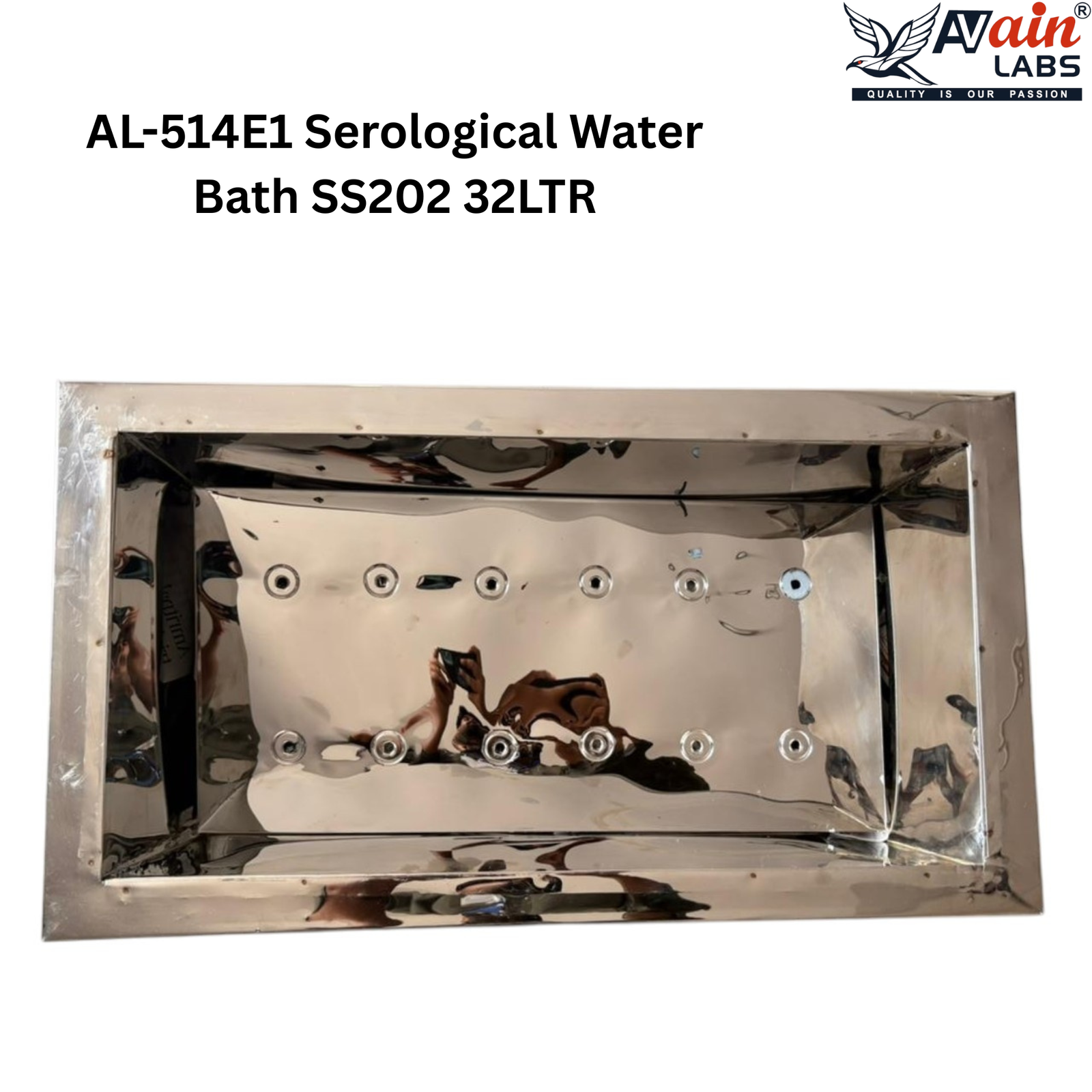

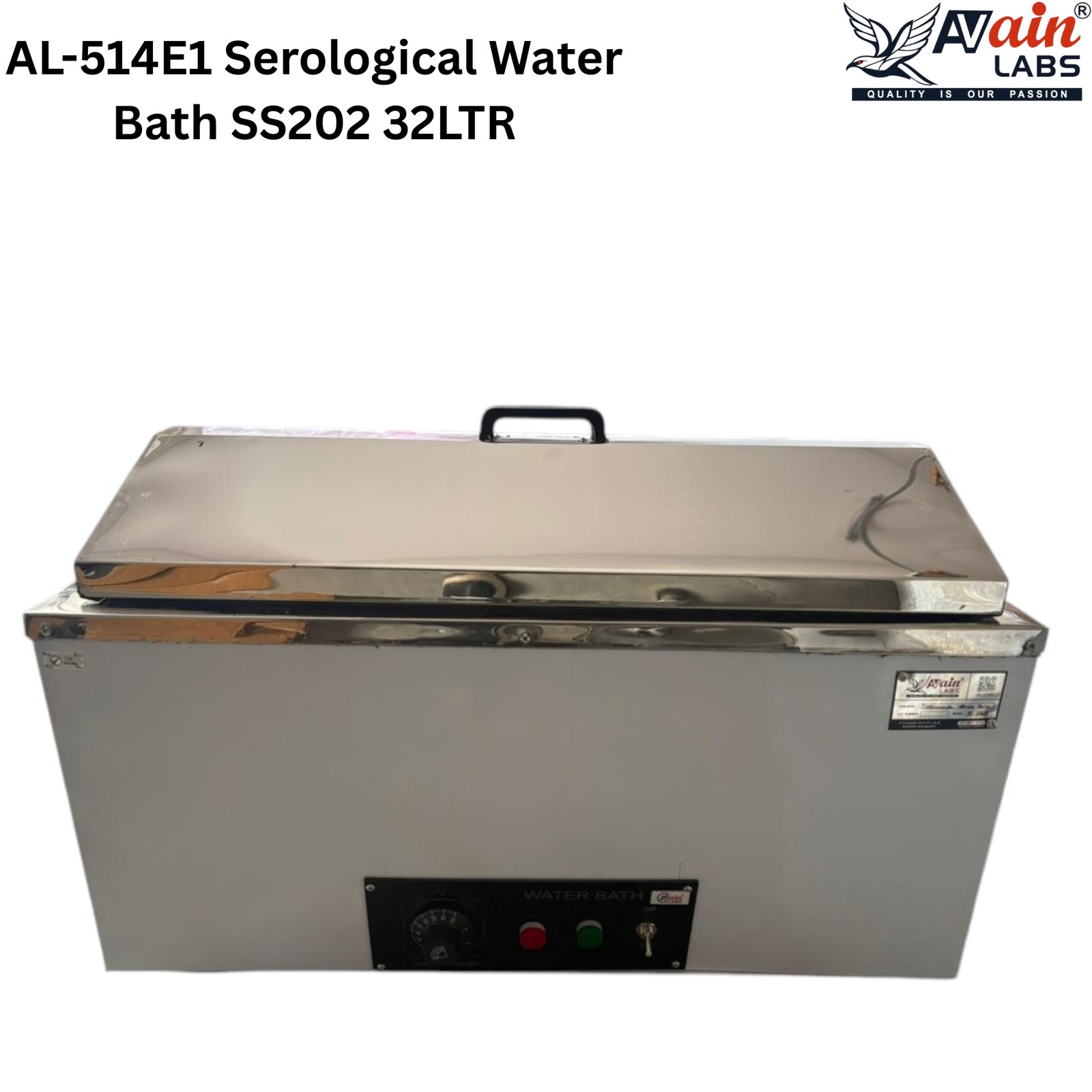

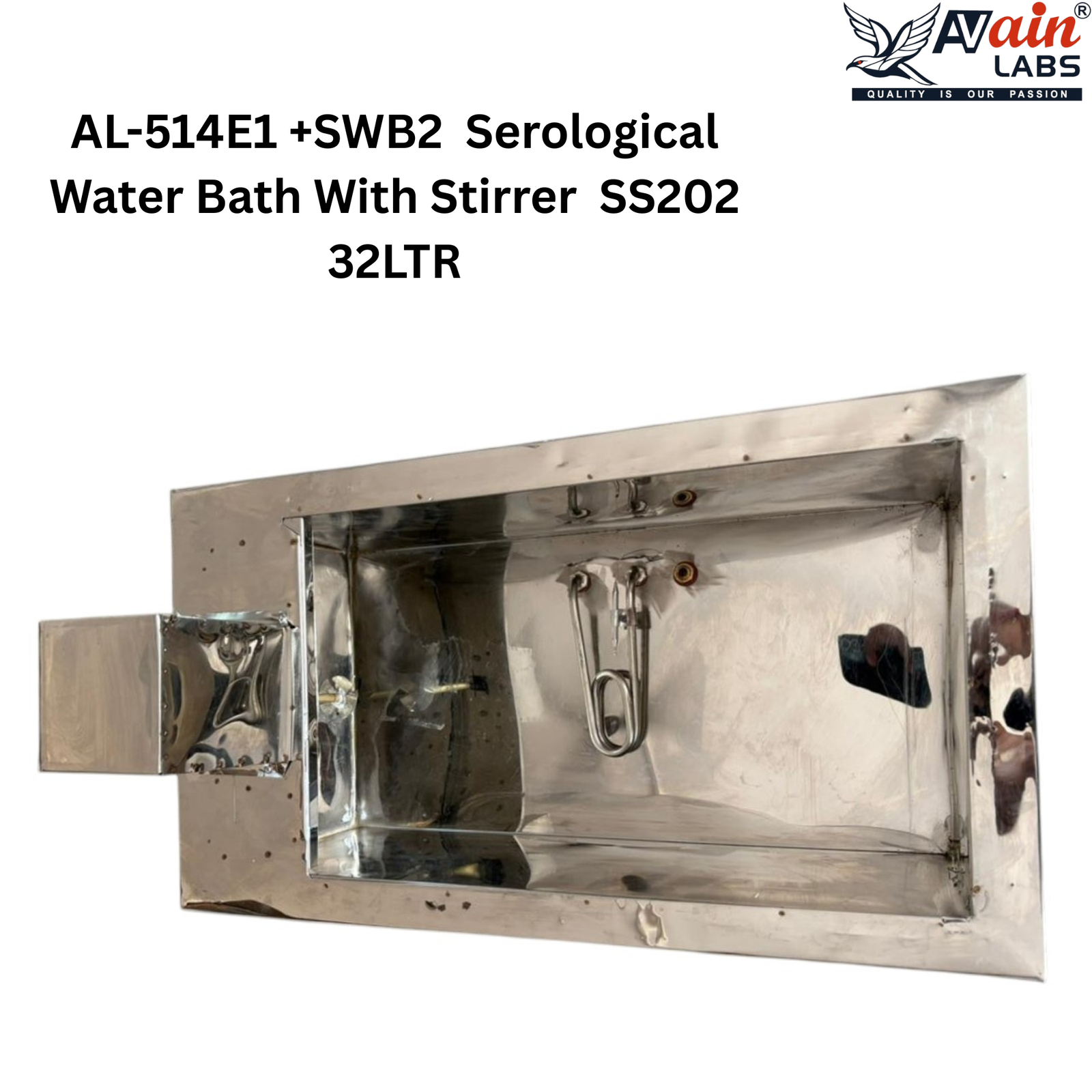

| AL-514E1 | 605x300x175 mm | 8 racks | 32 Liters | SS 202 | ||
| AL-514E2 | 605x300x175 mm | 8 racks | 32 Liters | SS 304 | ||
| Optional (SWB1) | Microprocessor PID digital temp Controller | |||||

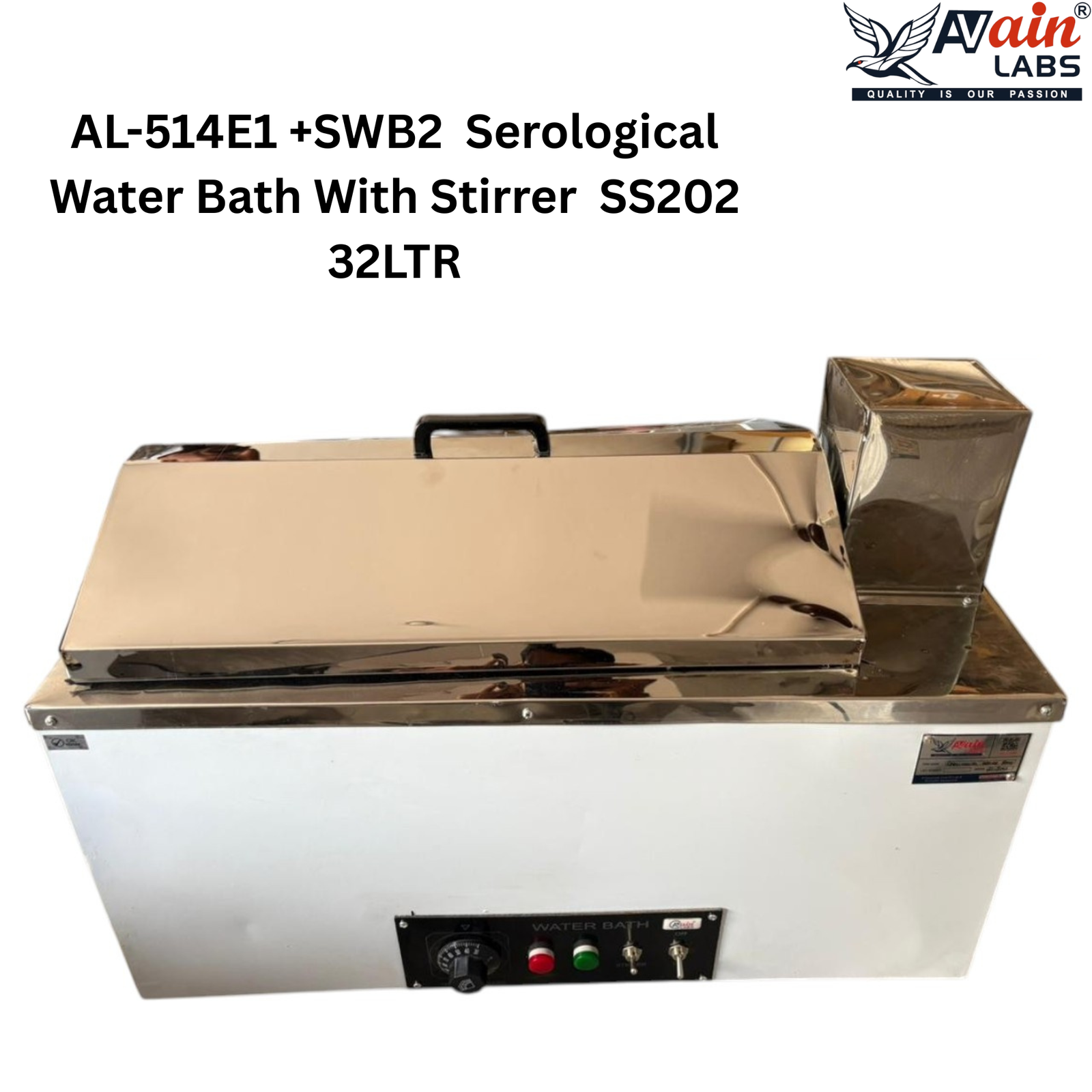

| Optional (SWB2) | Stirrer with 1-20 HP high speed motor with stainless stirring rod & blade | |||||
| Optional (SWB3) | Low Water Safety Cutoff Device | |||||
| Note: Please ask for other capacity of your Requirement. (GMP model inner and outer SS Complete also Available) | ||||||
You are requested to select the appropriate range prior to placing your order.
| Model No | AL-514E |
|---|---|
| Size | 605x300x175 mm |
| Capacity | 32 Liters |
| Outer Material | MILD STEEL WITH POWDER COATED |
| Inner Material | Stainless Steel 202 |
