AVAIN LABS® TOUCH SCREEN DIGITAL AUTOMATIC VISCOMETER (RANGE 100~6,00,00,000 mpas) AL-22D

Description

AVAIN LABS® TOUCH SCREEN DIGITAL AUTOMATIC VISCOMETER (RANGE 100~6,00,00,000 mpas) AL-22D

Product Overview

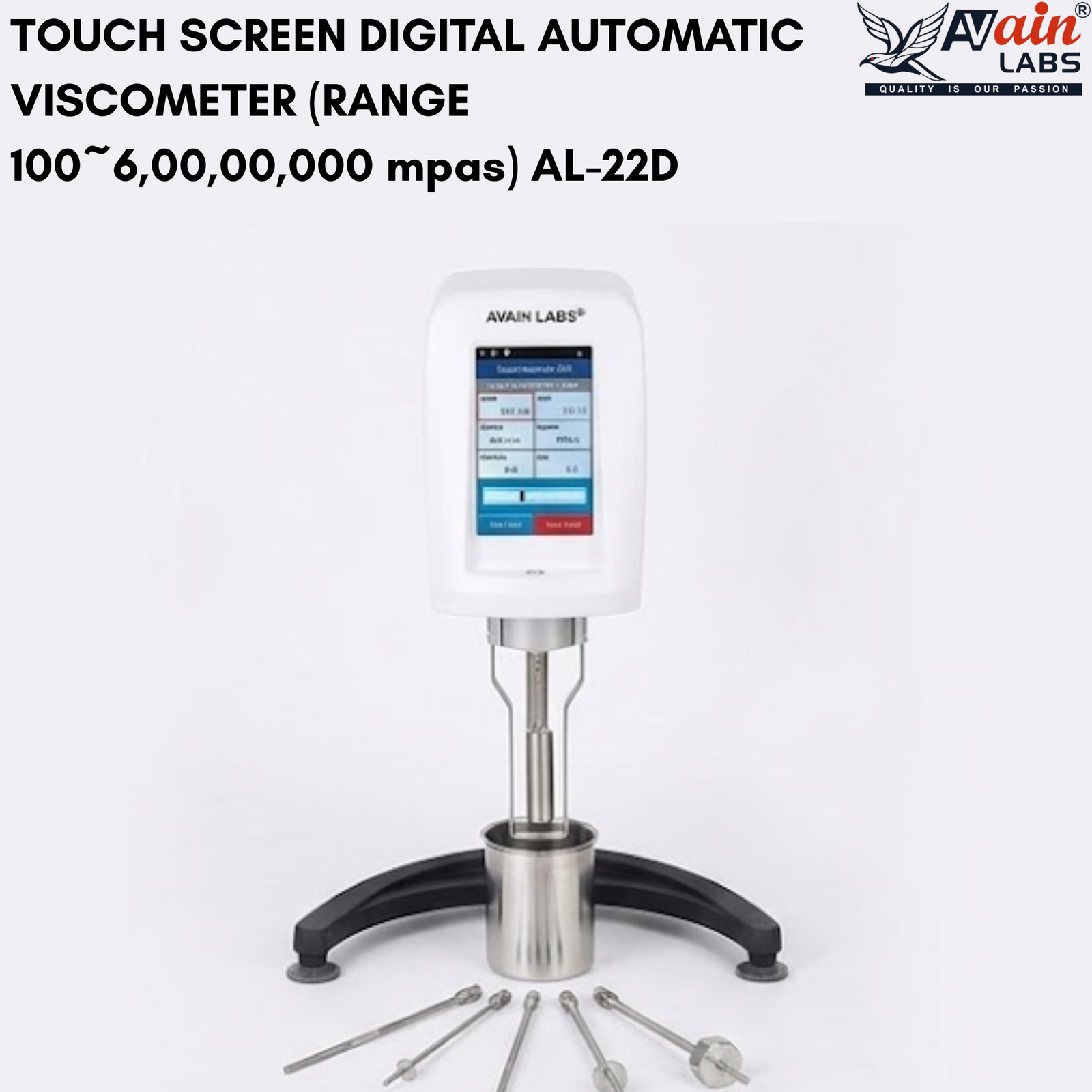

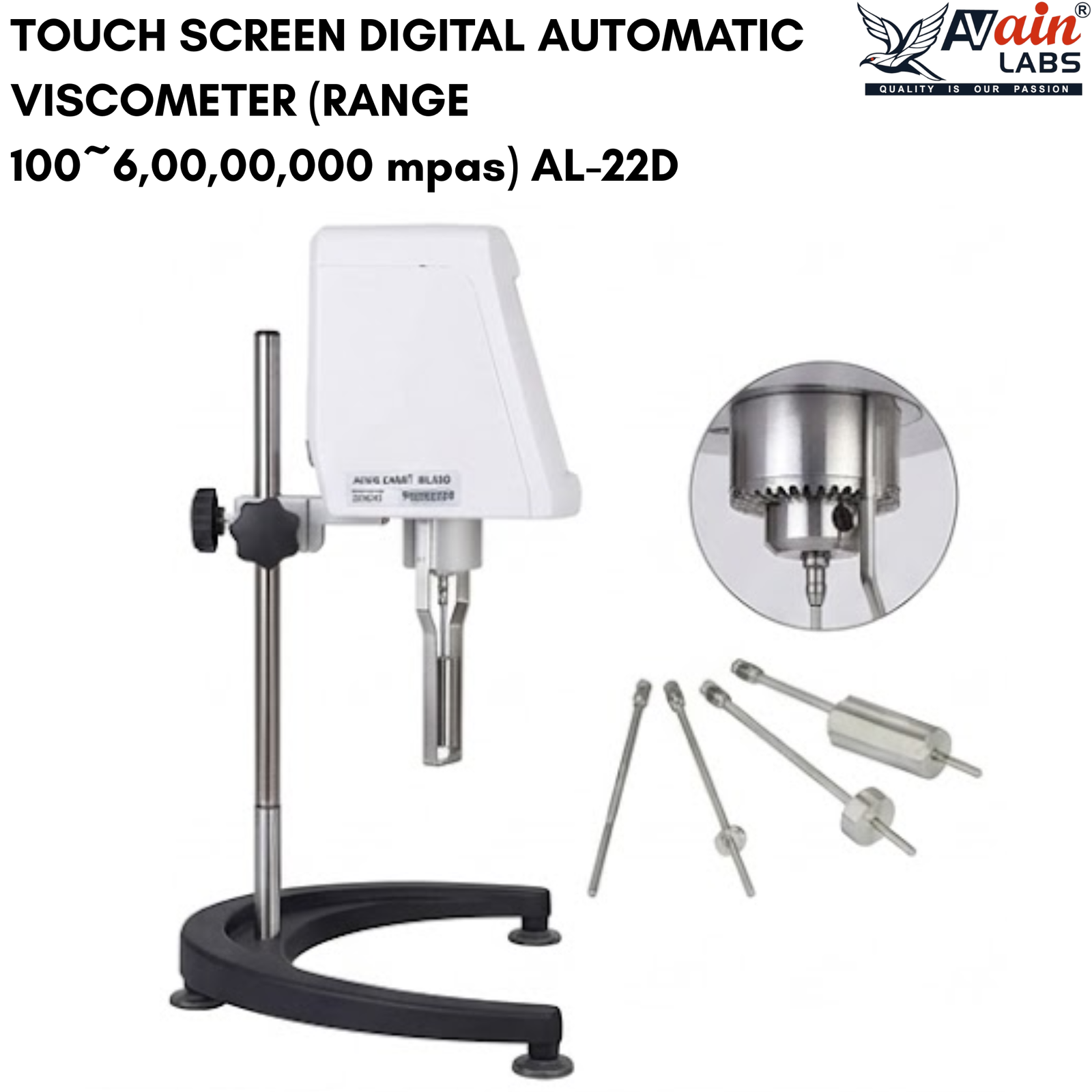

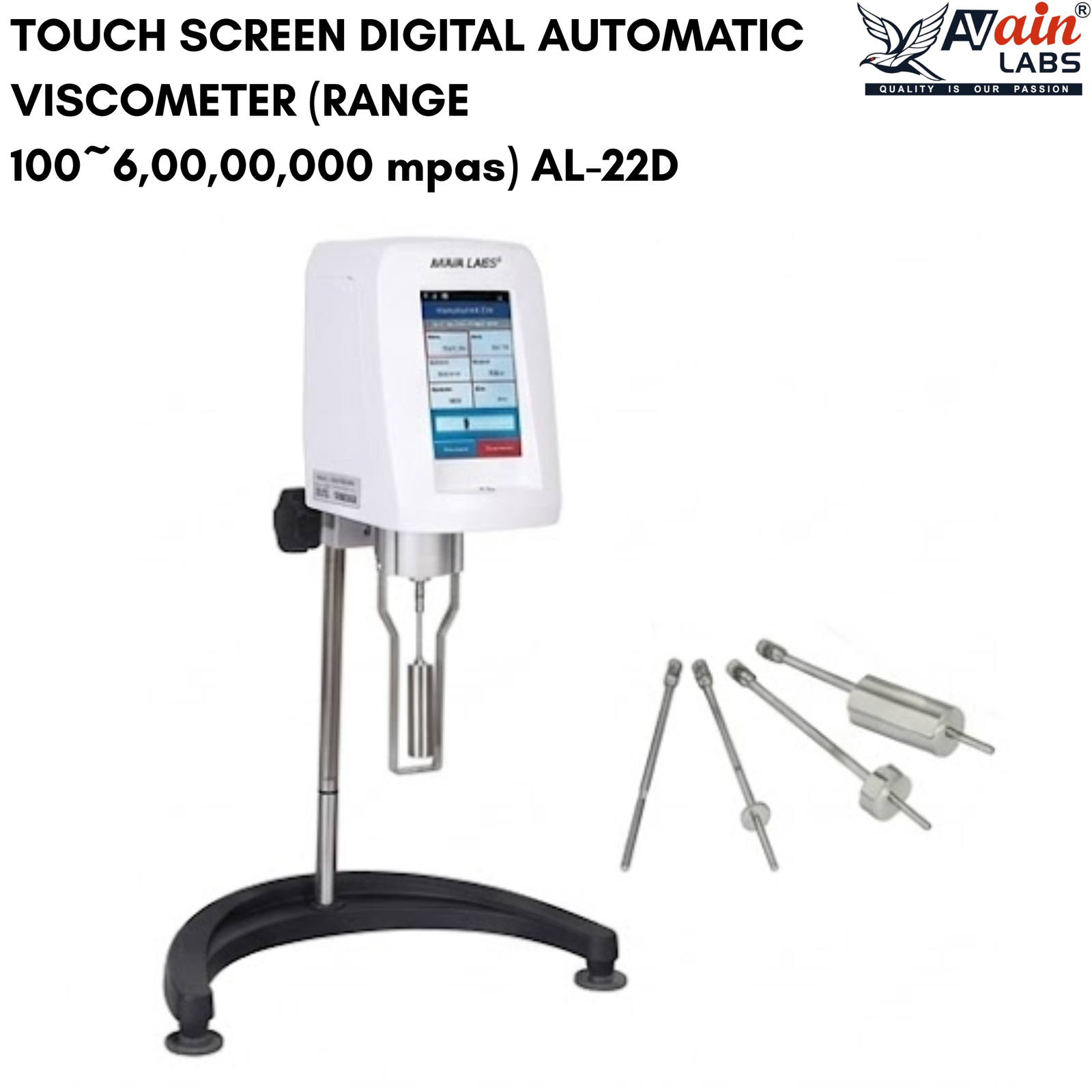

The AVAIN LABS® Touch Screen Digital Automatic Viscometer (AL-22D) is designed for advanced scientific research, industrial quality control, and precision fluid analysis. Featuring 58 distinct speed settings ranging from 0.1 to 200 RPM, this high-performance rotational viscometer offers exceptional flexibility for testing low to high-viscosity liquids.

Equipped with a bright backlit LCD touch screen, an intelligent auto-scan function that automatically determines the ideal spindle and speed combination, and a precision spring torque system (673.7 Dyne-cm), the AL-22D ensures highly reliable, repeatable, and accurate viscosity measurements across demanding industrial applications.

Technical Specifications

Key Features & Highlights

• 58 Versatile Speed Settings: Ultra-wide speed range from 0.1 to 200 RPM for precise rheological measurement across various liquid dynamics.

• Smart Auto-Scanning Function: Automatically scans sample resistance and recommends the optimal combination of rotor and speed.

• Interactive Touch Screen Interface: Provides direct readout of real-time viscosity values, speed settings, and optional temperature measurements.

• Auto Range Display: Pre-calculates and displays the maximum measurable viscosity range for any chosen spindle and speed setting.

• Calibrated Spring Torque System: Uses a 673.7 Dyne-cm spring torque setup for high accuracy (±1% F.S) and excellent repeatability (±0.5% F.S).

• Seamless Laboratory Integration: Standard RS 232C output interface enables quick connection to external printers or laboratory data systems.

Included Standard Accessories

• 4 x Standard Spindles (L1, L2, L3, L4)

• 1 x Spindle Guard Leg

• 1 x Power Cord

• 1 x Stand Set

• 1 x Instruction Manual
