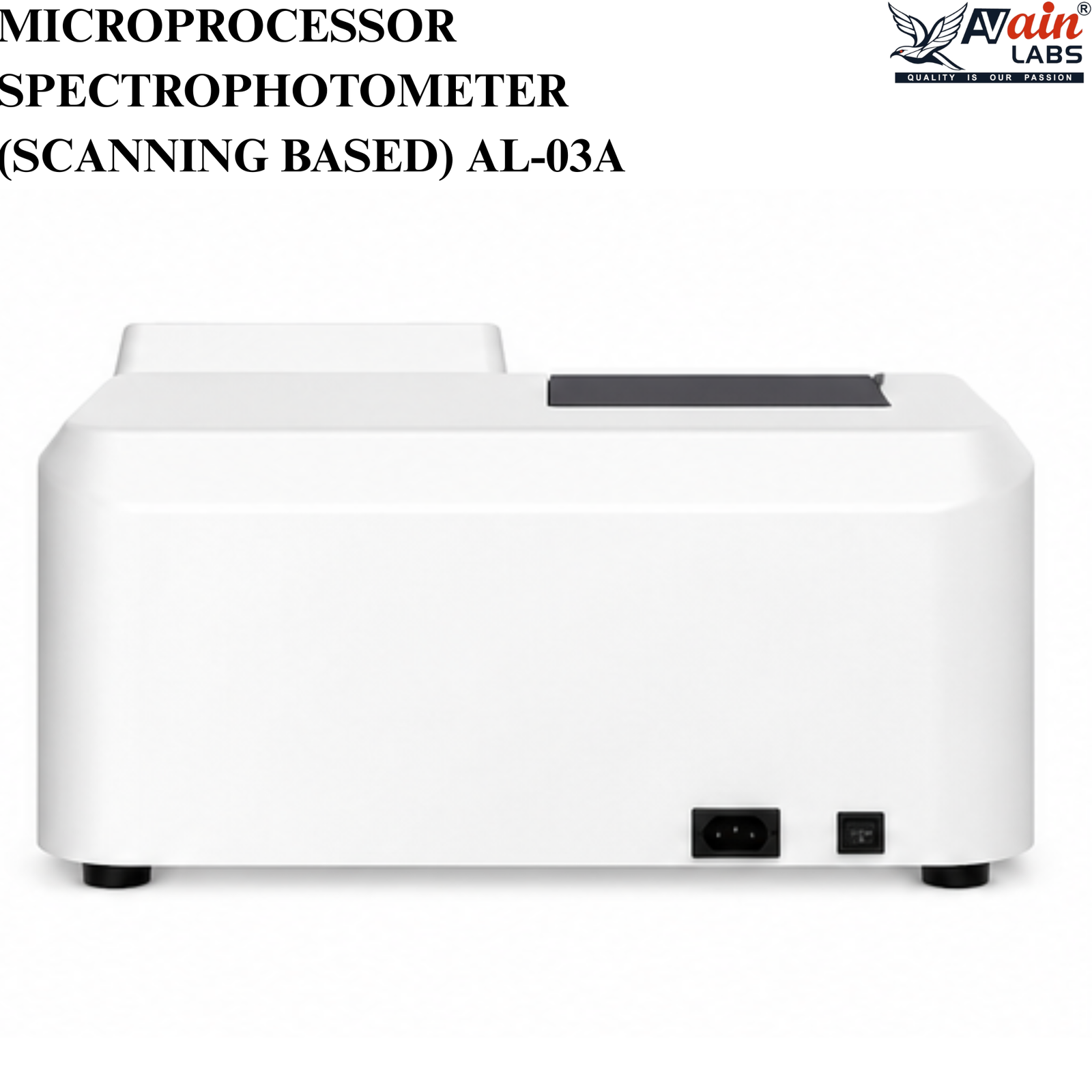

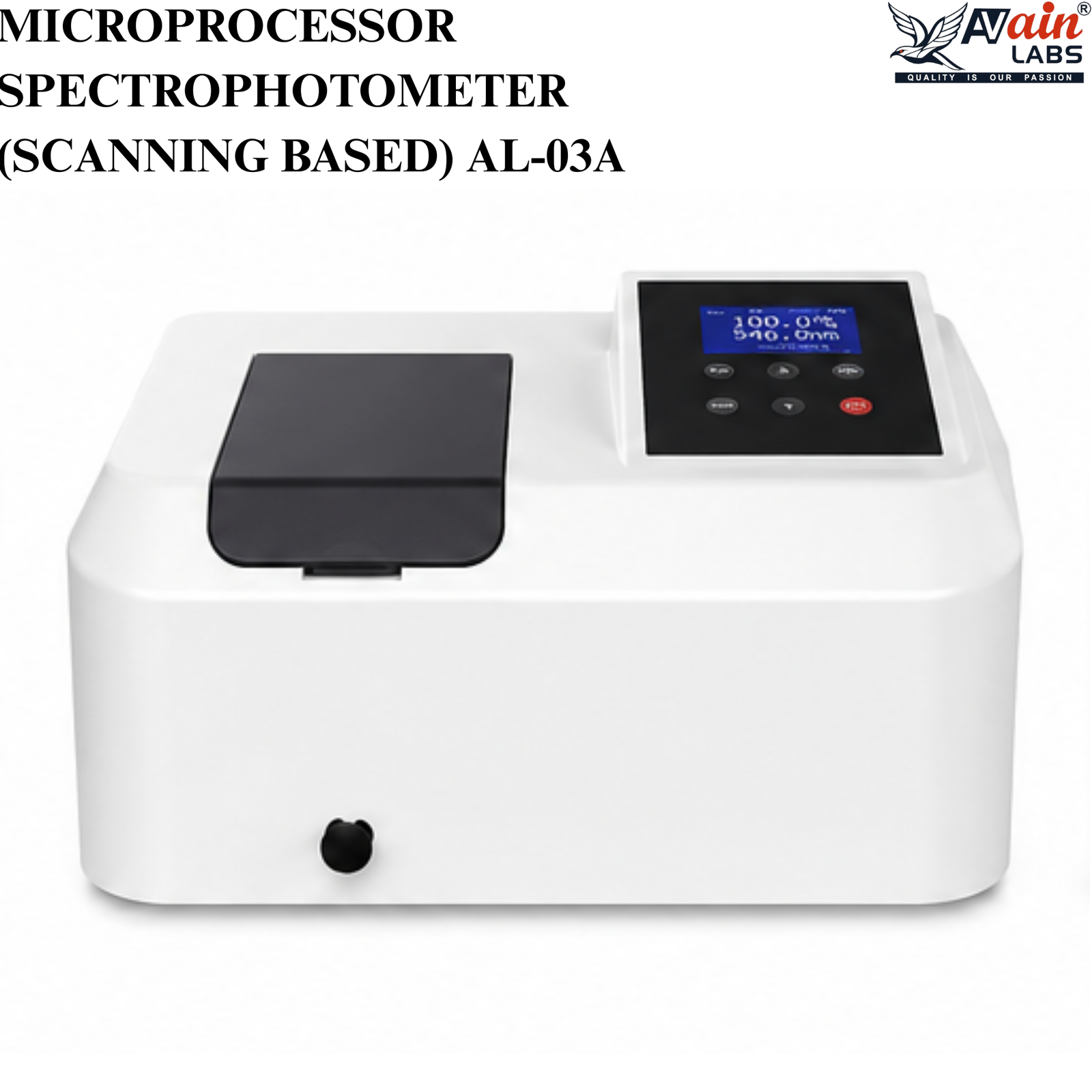

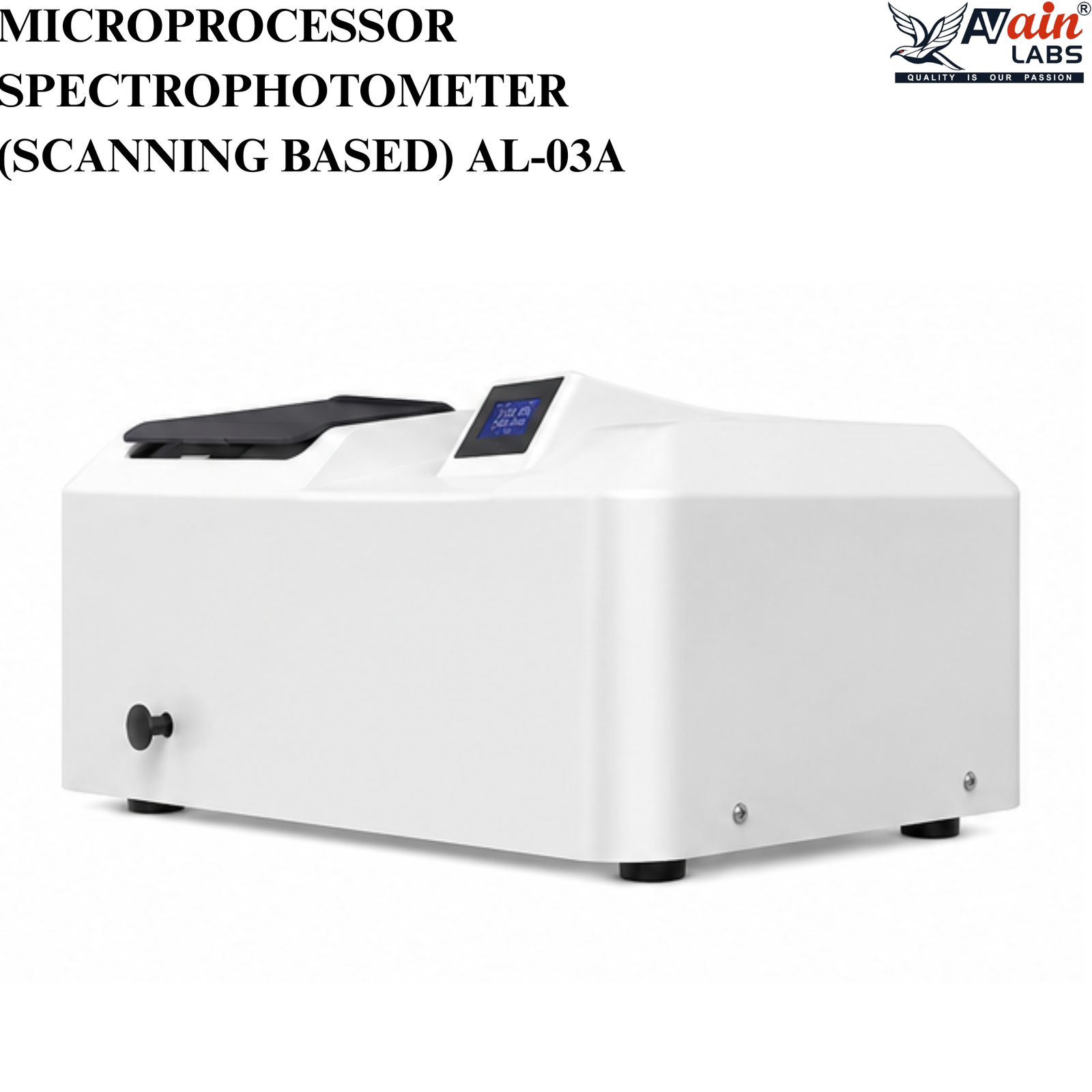

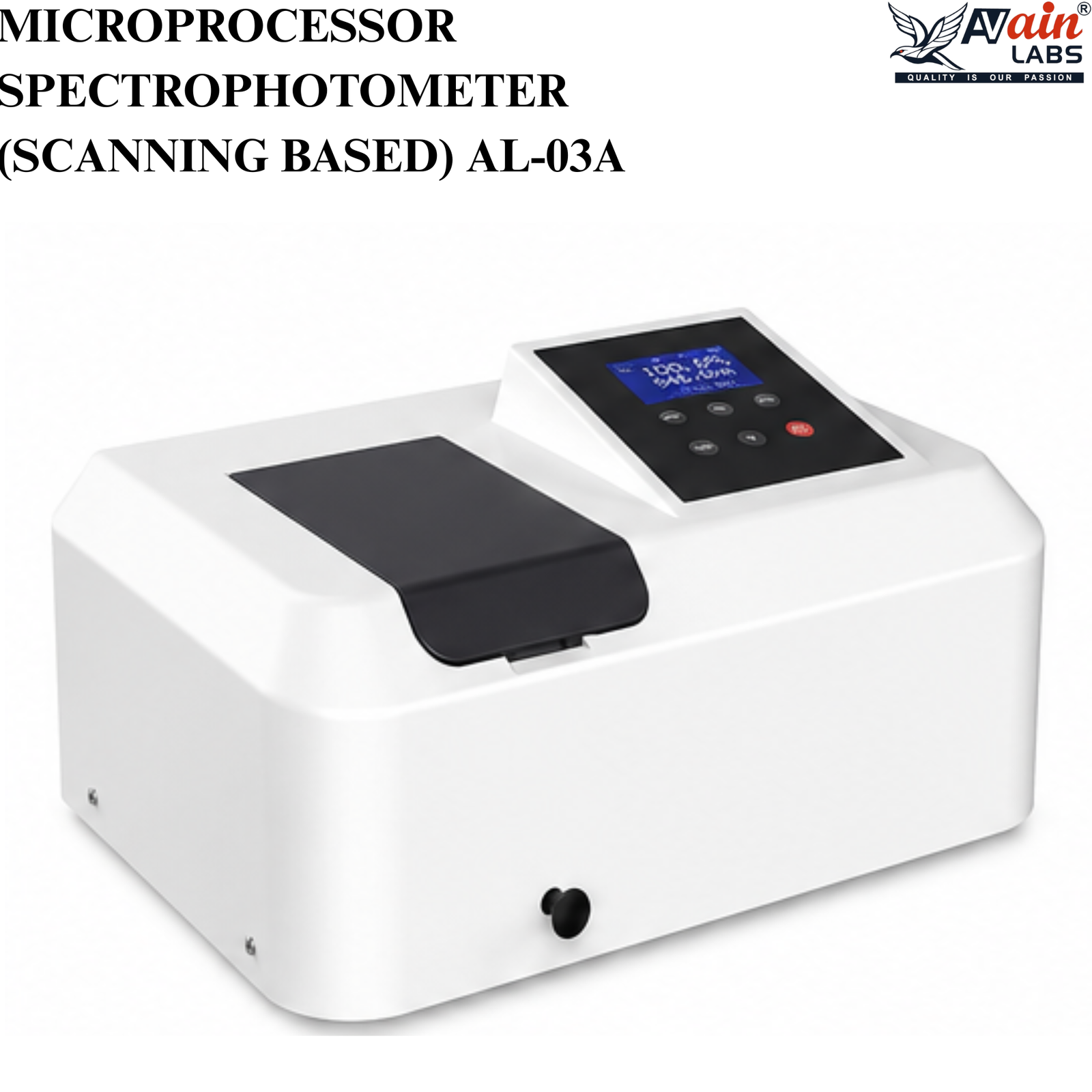

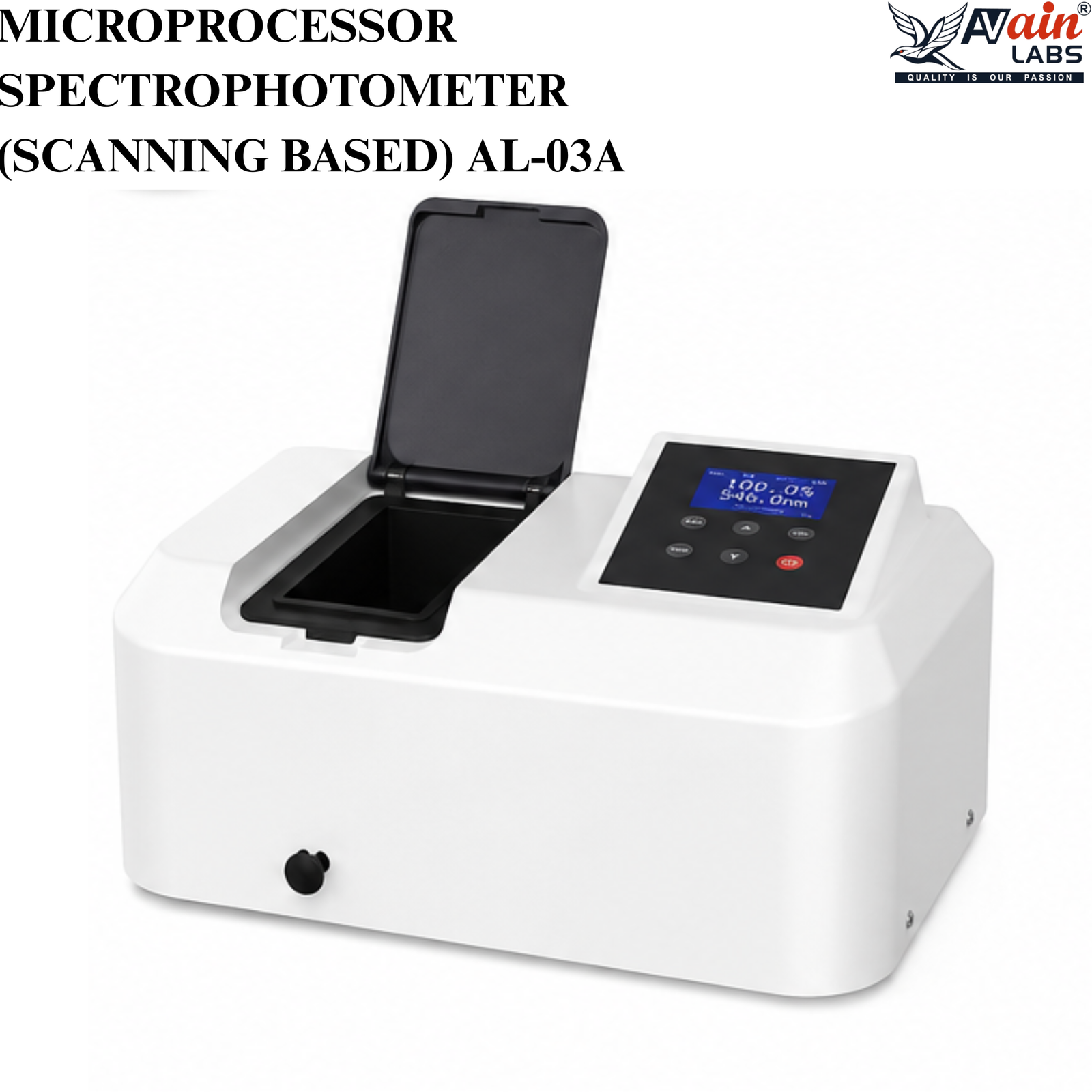

AVAIN LABS® MICROPROCESSOR SPECTROPHOTOMETER (SCANNING BASED) AL-03A
- ✔ Premium Quality Assured
- ✔ Fast & Reliable Delivery
- ✔ Easy WhatsApp Ordering
- ✔ 100% Customer Satisfaction
Description
AVAIN LABS® MICROPROCESSOR SPECTROPHOTOMETER (SCANNING BASED) AL-03A
The AVAIN LABS® Microprocessor Spectrophotometer (Scanning Based) – Model AL-03A is a high-performance analytical instrument designed for precise and reliable measurement of absorbance, transmittance, optical density, and concentration in laboratories across pharmaceutical, biotechnology, environmental, clinical, educational, and industrial sectors.
Featuring advanced microprocessor-controlled technology, the AL-03A offers a wavelength range of 325–1000 nm with fully automated scanning functionality for rapid and accurate spectral analysis. The instrument is equipped with automatic filter calibration, automatic graph plotting, and instant result generation, making it ideal for routine laboratory testing and research applications.
The integrated 2.9-inch graphical LCD display provides clear visualization of spectral graphs, scanning curves, and analytical results, while the high-speed processing system delivers results in as little as 2 seconds, improving laboratory productivity and workflow efficiency.
Designed with a 4 nm spectral bandwidth and 10 nm wavelength resolution, the AL-03A ensures excellent analytical performance for educational and industrial applications alike. The instrument accommodates standard 1 cm path length cuvettes as well as 13 mm OD test tubes, offering flexibility for multiple sample types and testing methods.
Key Features
- Advanced Microprocessor-Based Scanning Spectrophotometer.
- Wide wavelength range of 325 to 1000 nm.
- Automatic Scanning Facility for spectral analysis.
- Automatic Filter Calibration for improved accuracy and reduced maintenance.
- Automatic display of graphs, spectra, and analytical results.
- Large 2.9-inch Graphical LCD Display for easy operation.
- Supports both Scanning Mode and Optical Density (OD) Mode.
- High-speed analysis with results available in approximately 2 seconds.
- Spectral bandwidth of 4 nm for precise measurements.
- Wavelength resolution of 10 nm.
- Compatible with 1 cm path length cuvettes.
- Supports 13 mm OD sample tubes.
- User-friendly interface with microprocessor-controlled operation.
- Reliable and stable performance for laboratory environments.
- Operates on standard 220V AC, 50Hz power supply.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Microprocessor Spectrophotometer (Scanning Based) |
| Model Number | AL-03A |
| Brand | AVAIN LABS® |
| Technology | Microprocessor Controlled |
| Wavelength Range | 325 – 1000 nm |
| Resolution | 10 nm |
| Spectral Bandwidth | 4 nm |
| Display | 2.9-inch Graphical LCD |
| Measurement Modes | Scanning Mode, OD Mode |
| Scanning Facility | Automatic |
| Filter Calibration | Automatic |
| Result Display | Automatic Graph and Result Display |
| Analysis Speed | Approx. 2 Seconds |
| Cuvette Compatibility | 1 cm Path Length Cuvettes |
| Tube Compatibility | 13 mm OD Tubes |
| Power Supply | AC 220V, 50Hz |
Applications
- Pharmaceutical quality control laboratories
- Biotechnology and life science research
- Clinical and diagnostic laboratories
- Environmental testing laboratories
- Water quality analysis
- Food and beverage testing
- Educational institutions and universities
- Chemical and industrial laboratories
- Optical density measurements for microbiology applications
- Absorbance and transmittance studies
Why Choose AVAIN LABS® AL-03A?
The AVAIN LABS® AL-03A Scanning Microprocessor Spectrophotometer combines automation, speed, and analytical precision in a compact and user-friendly instrument. With features such as automatic scanning, auto calibration, graphical display, and rapid analysis, it is an ideal solution for laboratories seeking reliable performance and efficient workflow management.
