AVAIN LABS® Sieve Shaker

Description

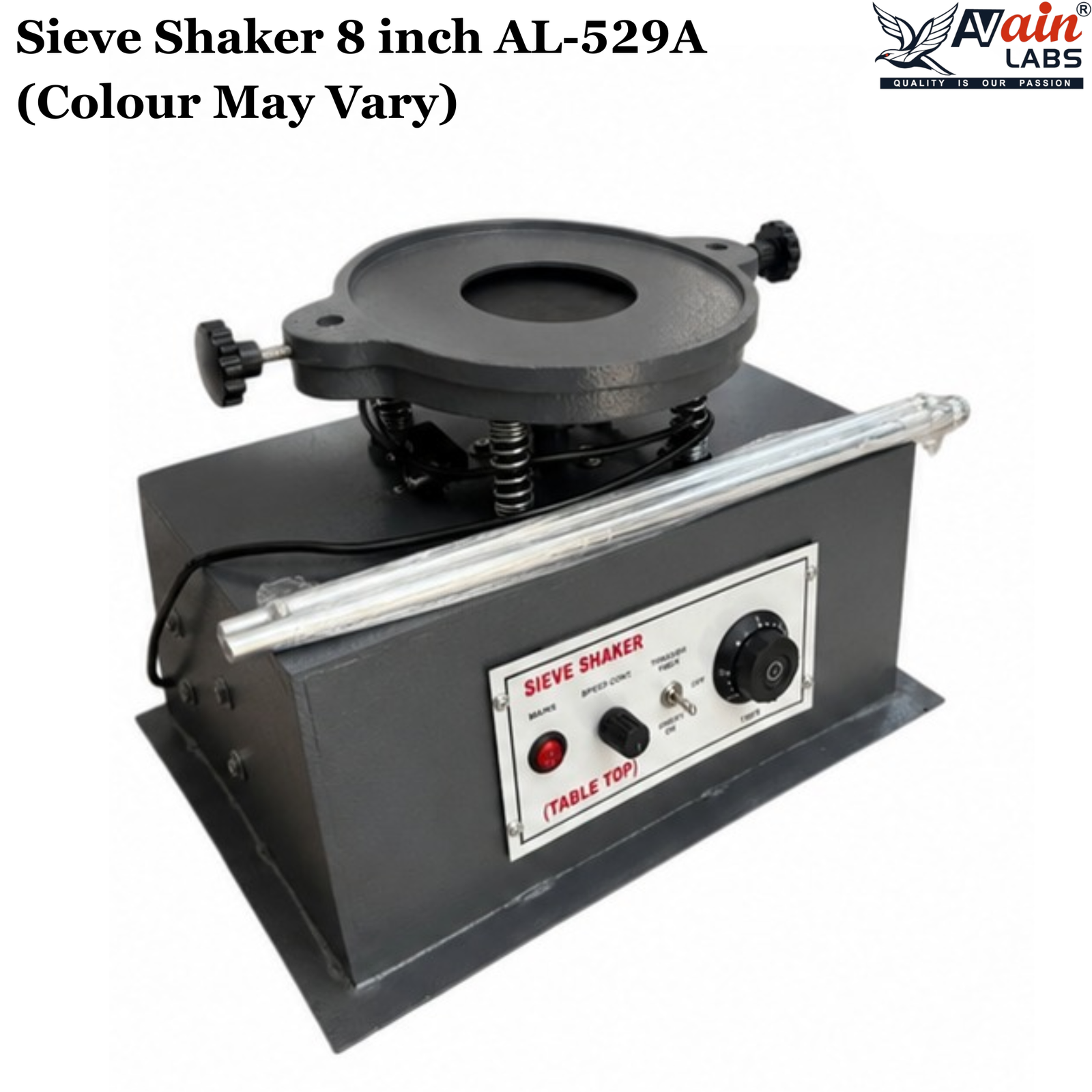

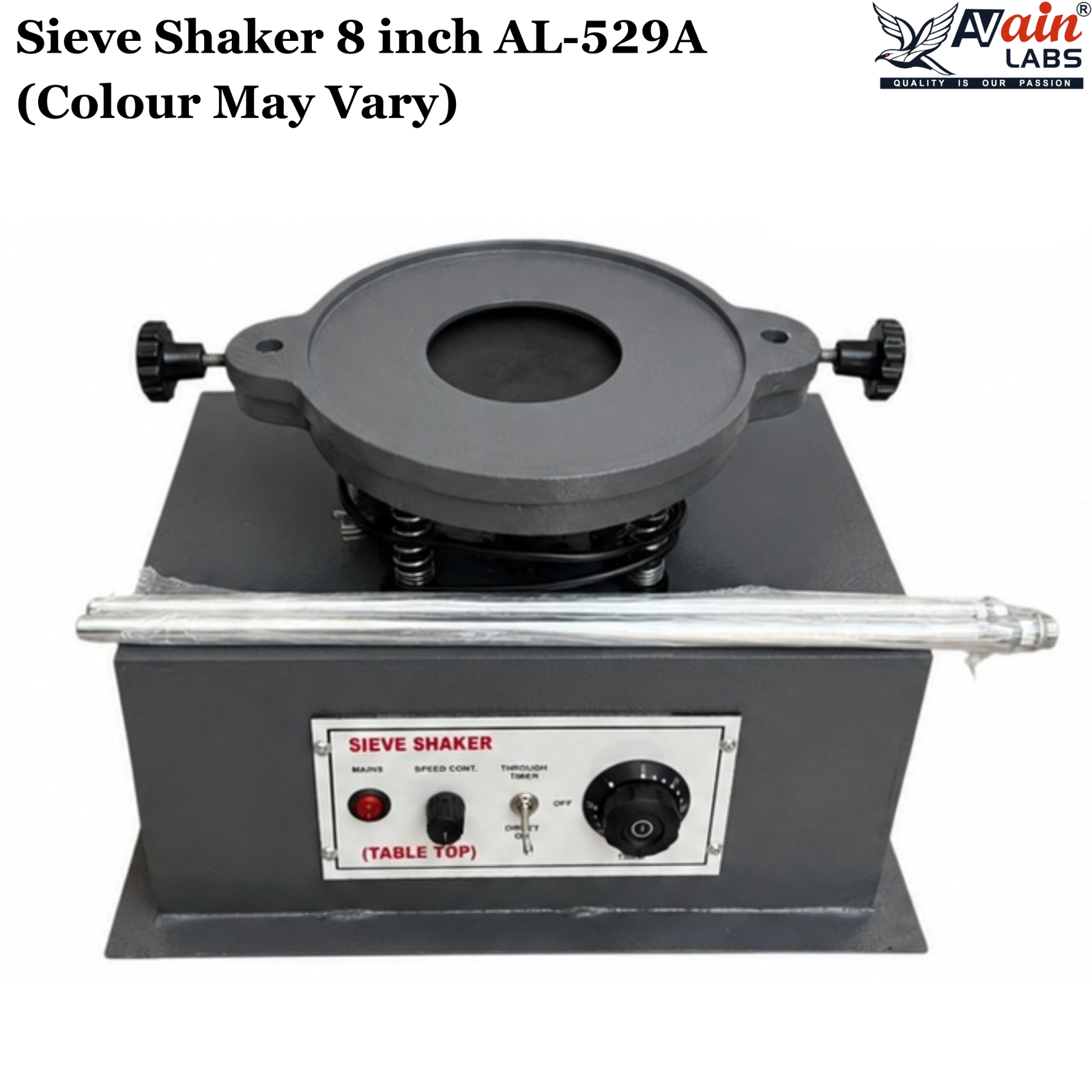

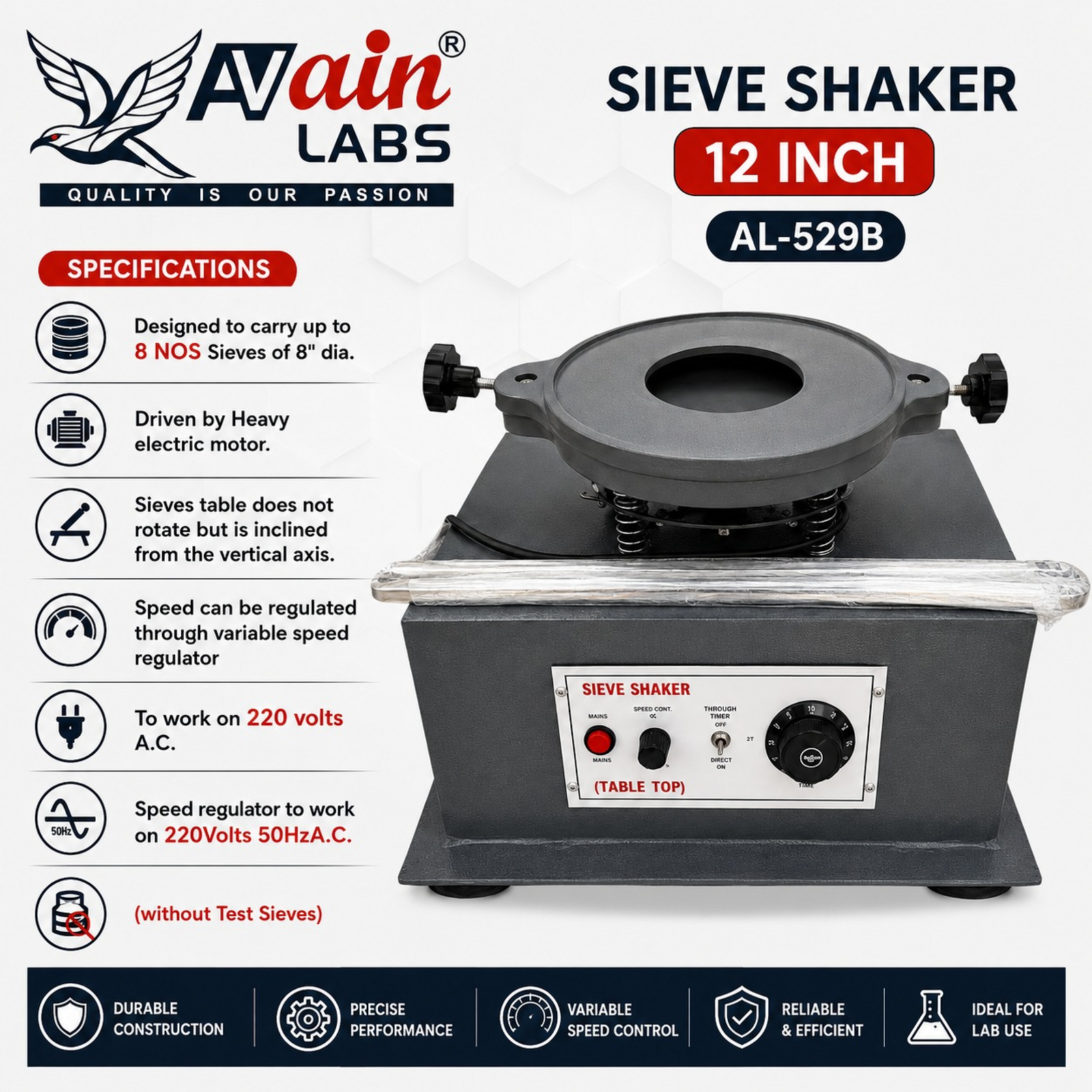

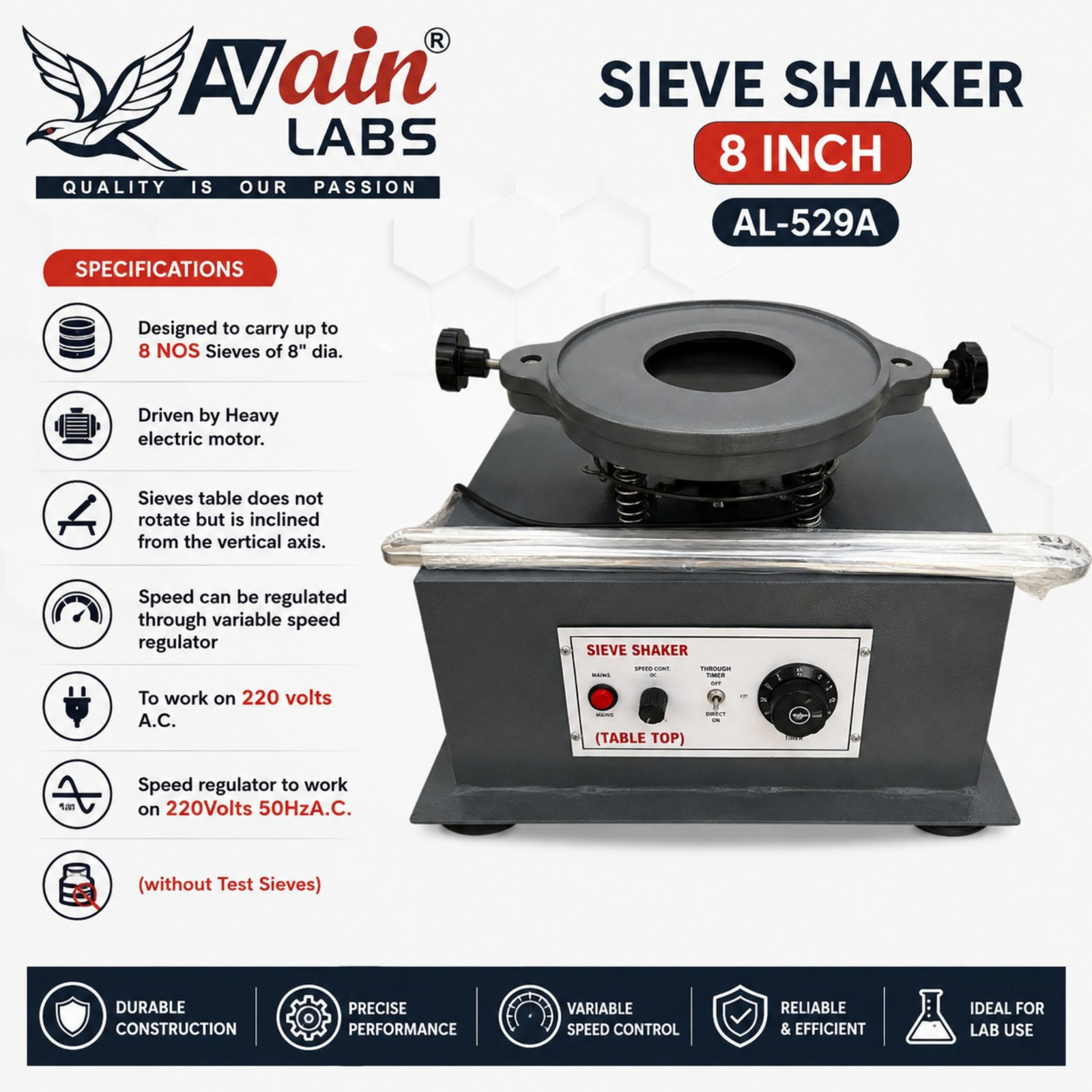

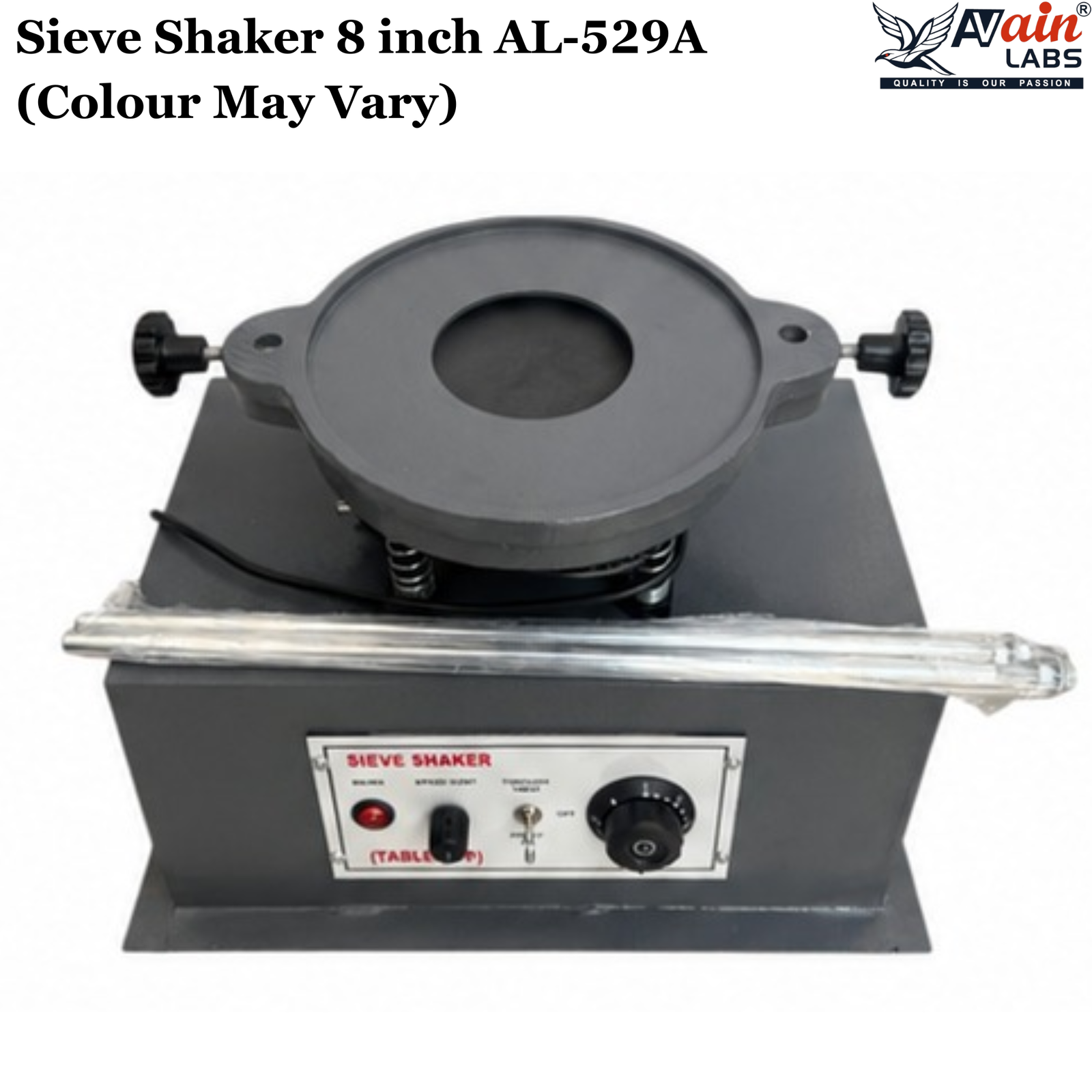

AVAIN LABS® Sieve Shaker

The AVAIN LABS® Sieve Shaker is a reliable and efficient laboratory testing instrument designed for particle size analysis, sieve analysis, and material separation across various industrial and research applications. Built for consistent performance and convenient operation, this sieve shaker is suitable for laboratories involved in soil testing, construction materials, cement, aggregates, pharmaceuticals, chemicals, food products, and quality control testing.

The sieve shaker is designed to carry up to 8 nos. of 8-inch diameter test sieves, allowing users to process multiple sieve levels efficiently in a single operation. It is driven by a heavy-duty electric motor that provides dependable mechanical agitation for effective particle separation.

Unlike conventional rotating sieve mechanisms, the sieve table does not rotate. Instead, it is inclined from the vertical axis, producing an effective shaking action for thorough and uniform screening. The unit is also equipped with a variable speed regulator, allowing the operating speed to be adjusted according to the material and testing requirements.

The AVAIN LABS® Sieve Shaker operates on 220 Volts, 50 Hz A.C. power, making it suitable for standard laboratory electrical supplies. The instrument is supplied without test sieves, enabling users to select the appropriate sieve specifications for their particular application.

Key Features

• Capacity: Up to 8 nos. of 8″ diameter test sieves
• Drive: Heavy-duty electric motor
• Sieve Movement: Sieve table does not rotate
• Operating Mechanism: Table is inclined from the vertical axis
• Speed Control: Variable speed regulator
• Power Supply: 220 Volts, 50 Hz A.C.
• Application: Sieve analysis and particle size separation
• Test Sieves: Supplied without test sieves
• Suitable For: Laboratories, research facilities, quality control departments, construction material testing, soil testing, aggregate testing, cement testing, pharmaceutical and chemical applications

Applications

The AVAIN LABS® Sieve Shaker is ideal for particle size determination and sieve analysis of materials such as soil, sand, aggregates, cement, powders, chemicals, pharmaceutical materials, food products, and other granular substances. Its adjustable speed and multi-sieve capacity make it a practical choice for routine laboratory testing and quality control applications.
