PROJECTION MICROSCOPE AL-149A

Description

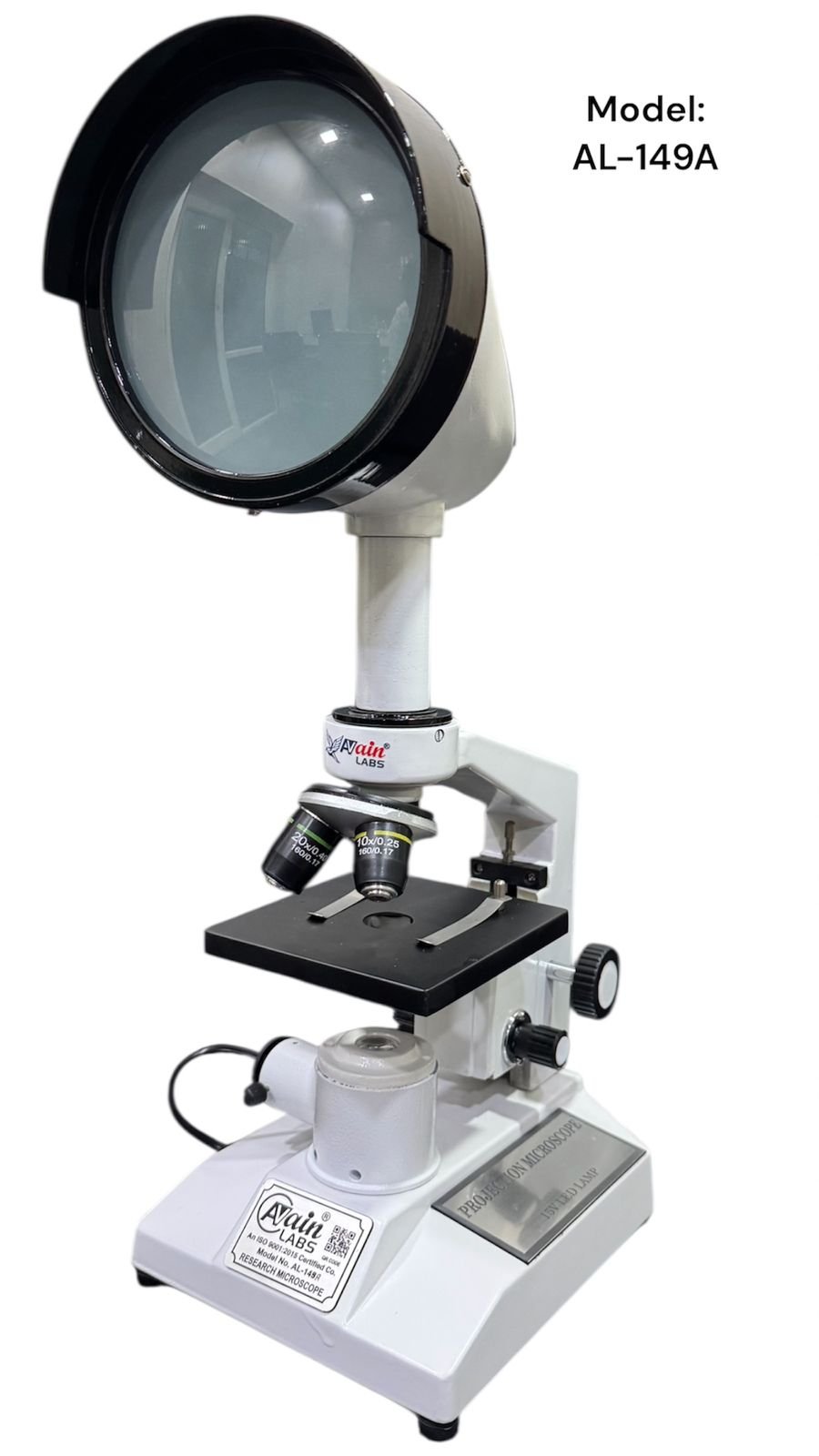

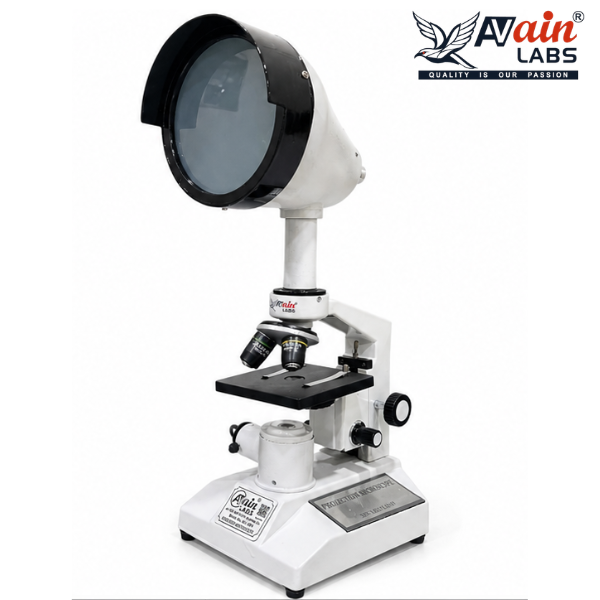

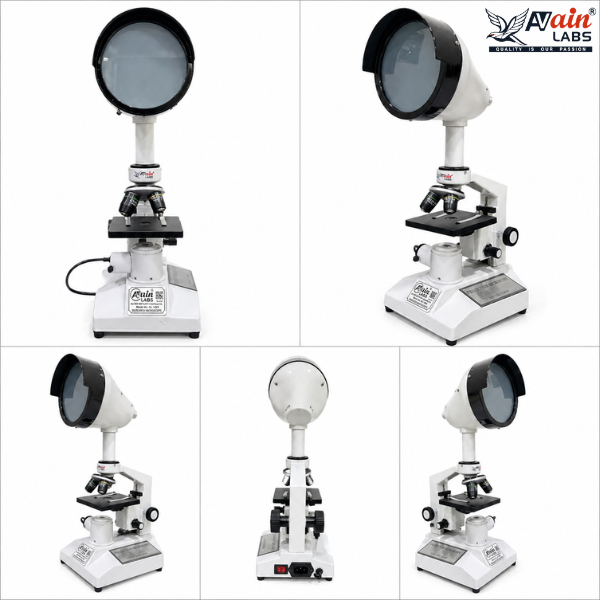

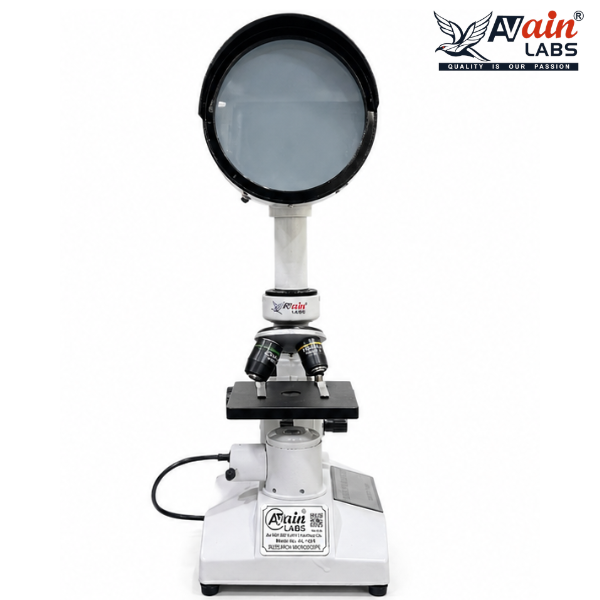

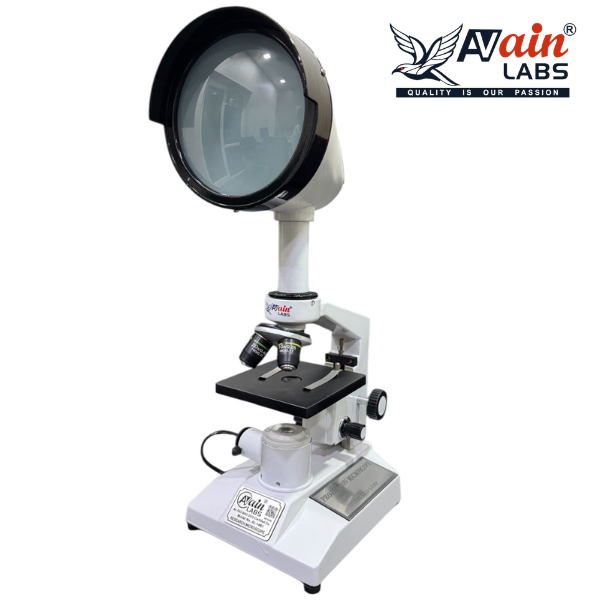

AVAIN LABS PROJECTION MICROSCOPE AL-149A

The AVAIN LABS Projection Microscope (AL-149A) is a high-quality optical instrument specially designed for classroom teaching, group demonstrations, and educational laboratories. This microscope allows clear projection of specimens, making it perfect for interactive learning and visual presentations.

Equipped with a triple revolving nosepiece with click-stop mechanism, it enables smooth and precise switching between objectives. The microscope features separate coarse and fine focusing knobs with a safety stopper, ensuring accurate focusing while protecting slides from damage.

The system includes a fixed substage condenser (NA 1.25) with iris diaphragm, providing excellent light control for sharp and well-contrasted images. The condenser is adjustable using a rack and pinion mechanism, allowing optimal illumination for projection.

Built on a stable horseshoe base inclinable from 1° to 90°, the microscope offers flexibility and ease of use during demonstrations. It comes with one 10x eyepiece and two objectives (10x and 45x) made from durable aluminium/plastic materials, ensuring reliable performance.

The microscope features a large body with stage clips for secure slide placement and is supplied with a 6-inch dome in a thermocol box for safe storage and projection use.

Key Features:

• Triple revolving nosepiece with click-stop
• Coarse & fine focusing with slide safety stopper
• Fixed substage condenser (NA 1.25) with iris diaphragm
• Rack and pinion condenser adjustment
• Horseshoe base inclinable from 1° to 90°
• Eyepiece: 10x (Aluminium/Plastic)
• Objectives: 10x & 45x (Aluminium/Plastic)
• Large body with stage clips for stability
• Includes 6” projection dome
• Supplied in thermocol box for protection

Common Applications:

• Classroom teaching and demonstrations
• Educational laboratories and training
• Group specimen observation
• Basic biological and scientific studies
• Visual projection of microscopic samples
