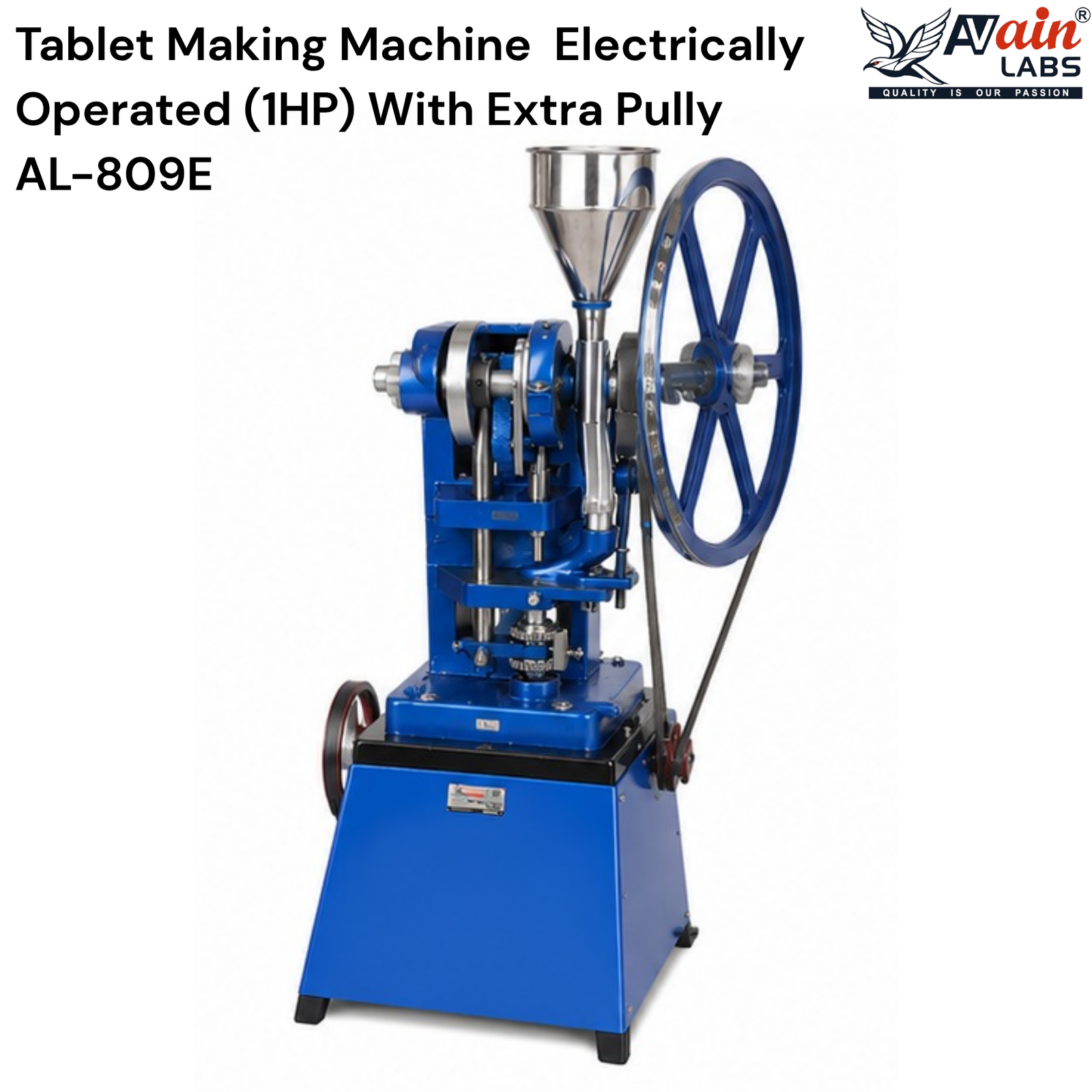

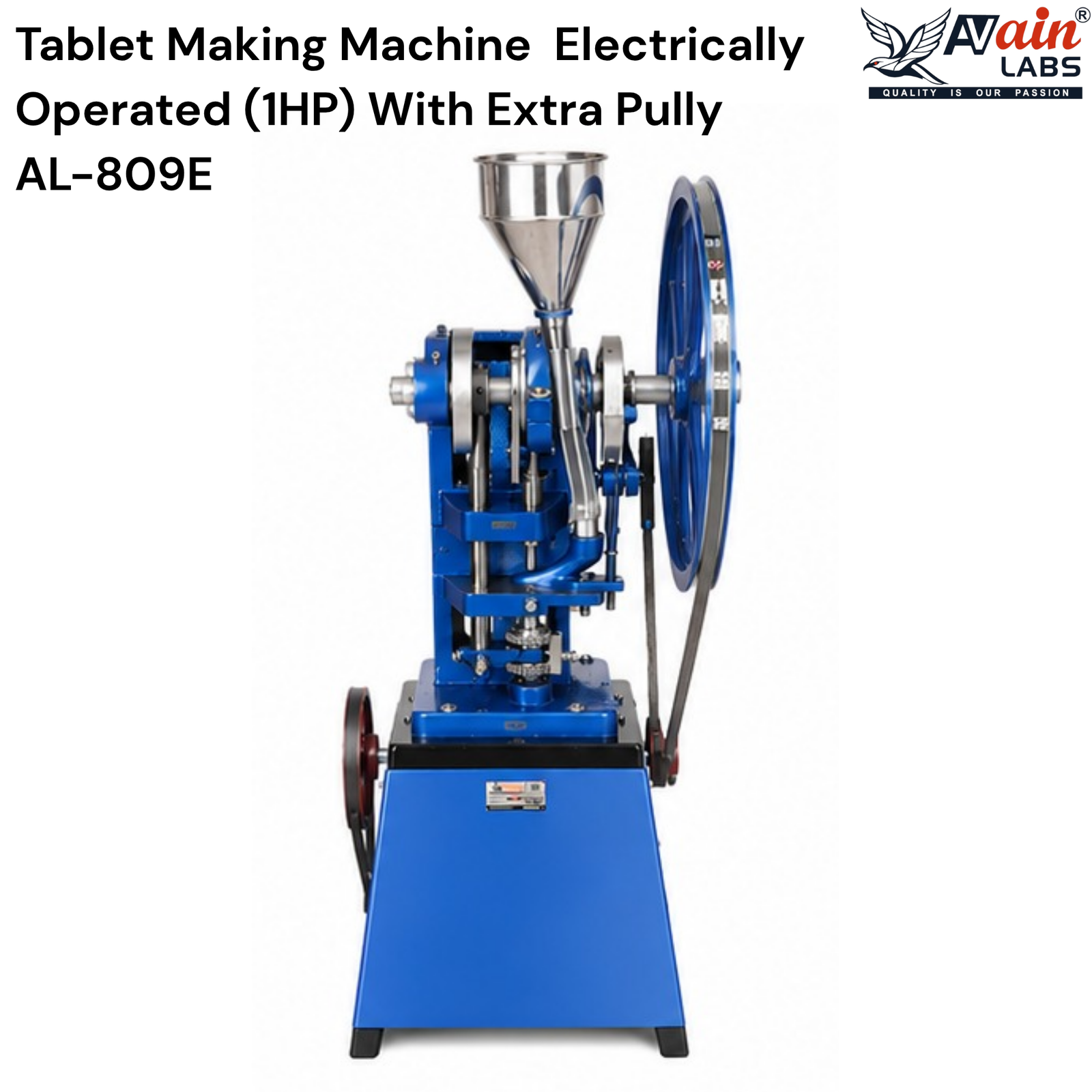

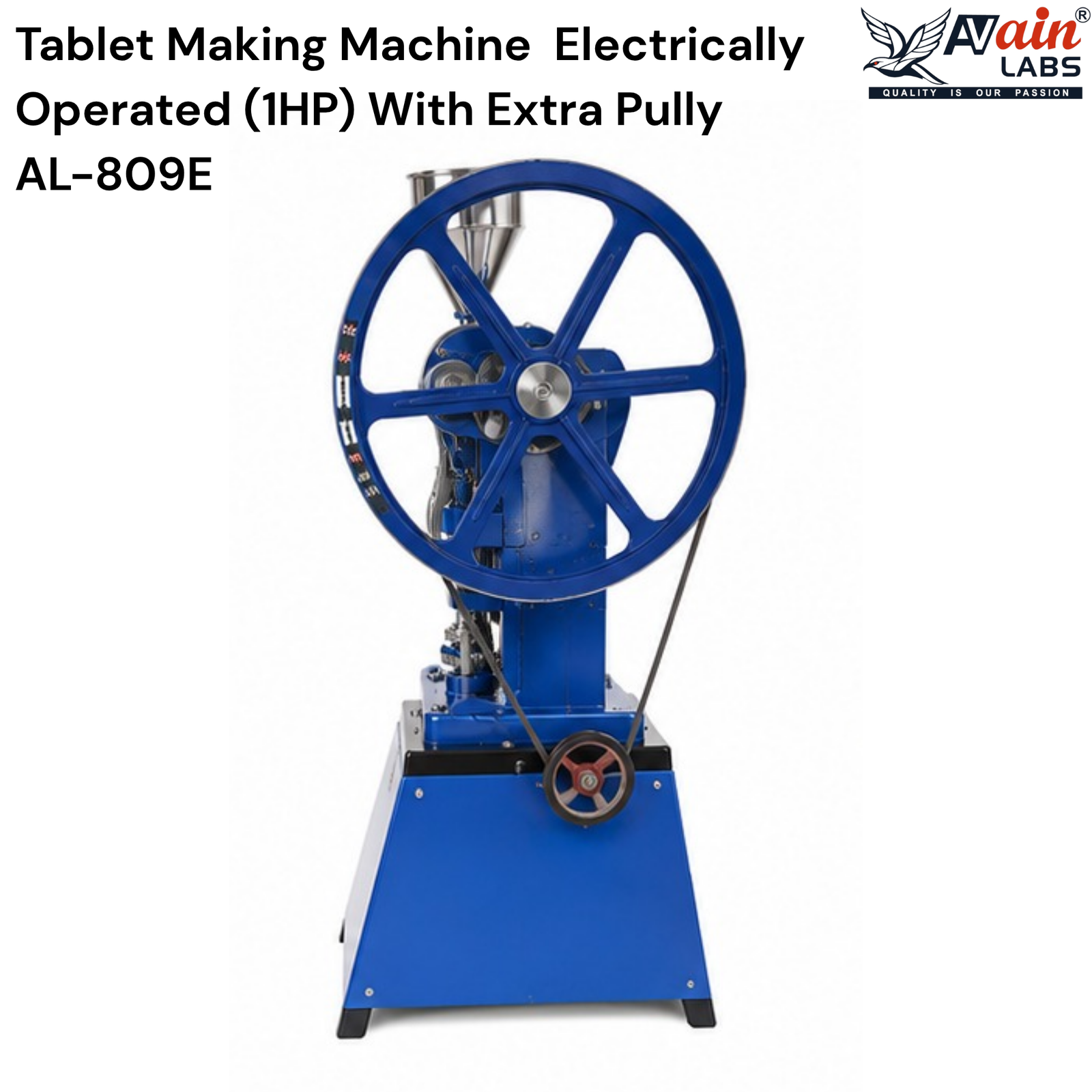

AVAIN LABS® Tablet Making Machine (Punching Machine) Electrically Operated (1HP) With Extra Pully AL-809E

Description

AVAIN LABS® Tablet Making Machine (Punching Machine) Electrically Operated (1HP) With Extra Pully AL-809E

The AVAIN LABS® Tablet Making Machine AL-809E is an electrically operated single punch tablet pressing machine designed for efficient and reliable tablet manufacturing in laboratories, research facilities, pharmaceutical training institutions, and industrial applications.

Powered by a 1 HP electric motor, this robust tablet punching machine is designed for the production of tablets up to 1000 mg, depending on the selected die and punch size. The machine is available with 6 mm, 9 mm, or 12 mm die and punch sets (any one size) to suit different tablet production requirements.

The AL-809E features an automatic compression and ejection mechanism that operates with each revolution of the wheel drive, helping provide smooth and efficient tablet production. Its heavy-duty cast iron body and eccentric pressure system provide strength, stability, and reliable operation.

Key Features

• Model: AL-809E
• Electrically operated tablet making and punching machine
• Powerful 1 HP motor
• Single punch tablet manufacturing system
• Suitable for making tablets up to 1000 mg, depending on die and punch size
• Available with 6 mm, 9 mm, or 12 mm die and punch set (any one)
• Automatic tablet compression and ejection system
• Compression and ejection operation with each revolution of the wheel drive
• Heavy-duty cast iron body construction
• Eccentric pressure system for efficient tablet compression
• Stainless steel hopper for convenient material handling
• Hopper connected through a rubber tube
• Easy adjustment of tablet thickness
• Adjustable tablet hardness
• Lock nuts provided for secure and stable settings
• Chromium steel die and punch set
• Includes an extra pulley

Robust Construction and Reliable Performance

The AVAIN LABS® AL-809E Tablet Punching Machine is built on a heavy-duty cast iron body designed to provide stability during operation. The eccentric pressure system supports effective compression for tablet manufacturing applications.

The machine is equipped with a stainless steel hopper for handling tablet formulation material. The hopper is connected through a rubber tube to support smooth material flow into the tablet compression area.

Adjustable Tablet Thickness and Hardness

The AL-809E is designed with convenient adjustment mechanisms for controlling the thickness and hardness of tablets.

The settings can be adjusted according to the tablet production requirement, while lock nuts help secure the selected operating position during use.

This flexibility makes the machine suitable for different laboratory tablet formulation and tablet manufacturing applications.

Chromium Steel Die and Punch Set

The machine is supplied with a durable chromium steel die and punch set.

Customers can select one of the following punch and die sizes according to their requirements:

• 6 mm
• 9 mm
• 12 mm

The selected die and punch size can be used for the production of tablets according to the required tablet dimensions and formulation.

Technical Specifications

Specification	Details
Brand	AVAIN LABS®
Model	AL-809E
Product Type	Tablet Making / Punching Machine
Operation	Electrically Operated
Motor Power	1 HP
Punch Type	Single Punch
Tablet Capacity	Up to 1000 mg, depending on die and punch size
Available Die & Punch Sizes	6 mm, 9 mm, or 12 mm (Any One)
Compression System	Eccentric Pressure System
Tablet Compression	Automatic
Tablet Ejection	Automatic
Body Construction	Heavy-Duty Cast Iron
Hopper Material	Stainless Steel
Die & Punch Material	Chromium Steel
Tablet Thickness Adjustment	Yes
Tablet Hardness Adjustment	Yes
Lock Nuts	Provided
Additional Accessory	Extra Pulley

Applications

The AVAIN LABS® Tablet Making Machine AL-809E is suitable for applications including:

• Pharmaceutical laboratory tablet preparation
• Tablet formulation research
• Research and development laboratories
• Pharmaceutical training institutes
• Educational institutions
• Laboratory-scale tablet production
• Formulation testing
• Industrial research applications
• Tablet compression demonstrations and training

Practical and Durable Tablet Compression Solution

The AVAIN LABS® Tablet Making Machine (Punching Machine) AL-809E combines electrically operated performance, a powerful 1 HP motor, automatic compression and ejection, adjustable tablet thickness and hardness, and durable cast iron construction.

With its single punch design, chromium steel die and punch set, stainless steel hopper, and extra pulley, the AL-809E is a practical solution for laboratory-scale tablet manufacturing, formulation development, research, and pharmaceutical training applications.

AVAIN LABS® AL-809E – Reliable Electrically Operated Single Punch Tablet Making Machine for Laboratory and Pharmaceutical Applications
